TX26
U-bracket

A 360° wall and ceiling bracket for the TX26: one formed steel part, proven by FEA.

Outcome Released for production in November 2024.

Brief

A simple, low-cost, single-part sheet-metal bracket, designed for manufacture and assembly (DFMA), with fast, straightforward production. It also had to meet these needs:

  • Wall, ceiling and truss mounting at any angle
  • Low profile and unobtrusive in every position
  • One person can hang the speaker
  • Fits studs, VESA mounts and PK's M10 accessories
Company
PK Sound
Role
Product Designer
Product
U-bracket for the TX26 install loudspeaker

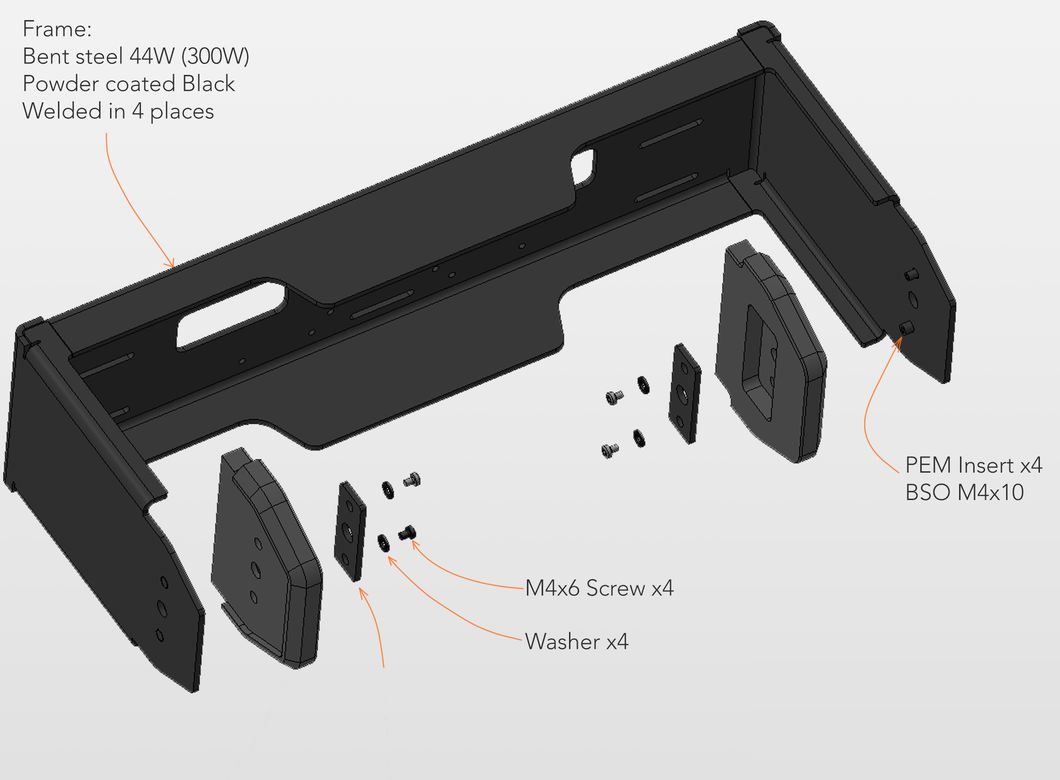

Welded frame, HDPE bumpers, retaining plates
01Concept 1 Welded frame, HDPE bumpers, retaining plates

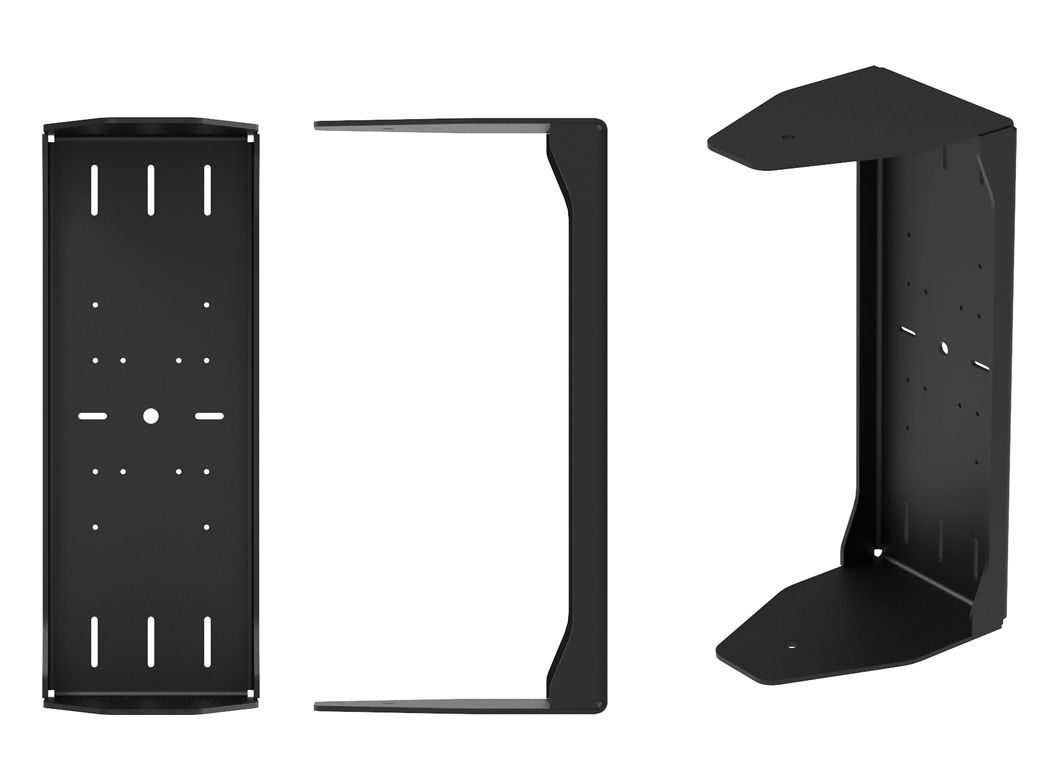

One bent part, no welds
02Concept 2 One bent part, no welds

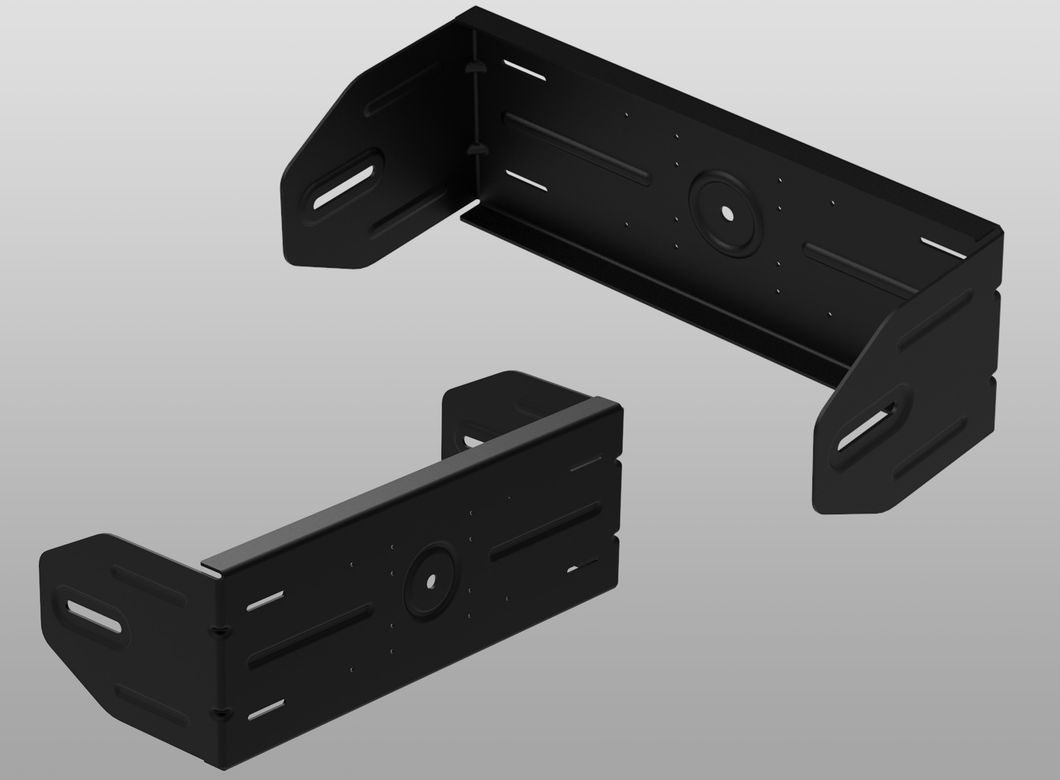

Edge bends and embosses stiffen 3 mm steel
03Concept 3 Edge bends and embosses stiffen 3 mm steel

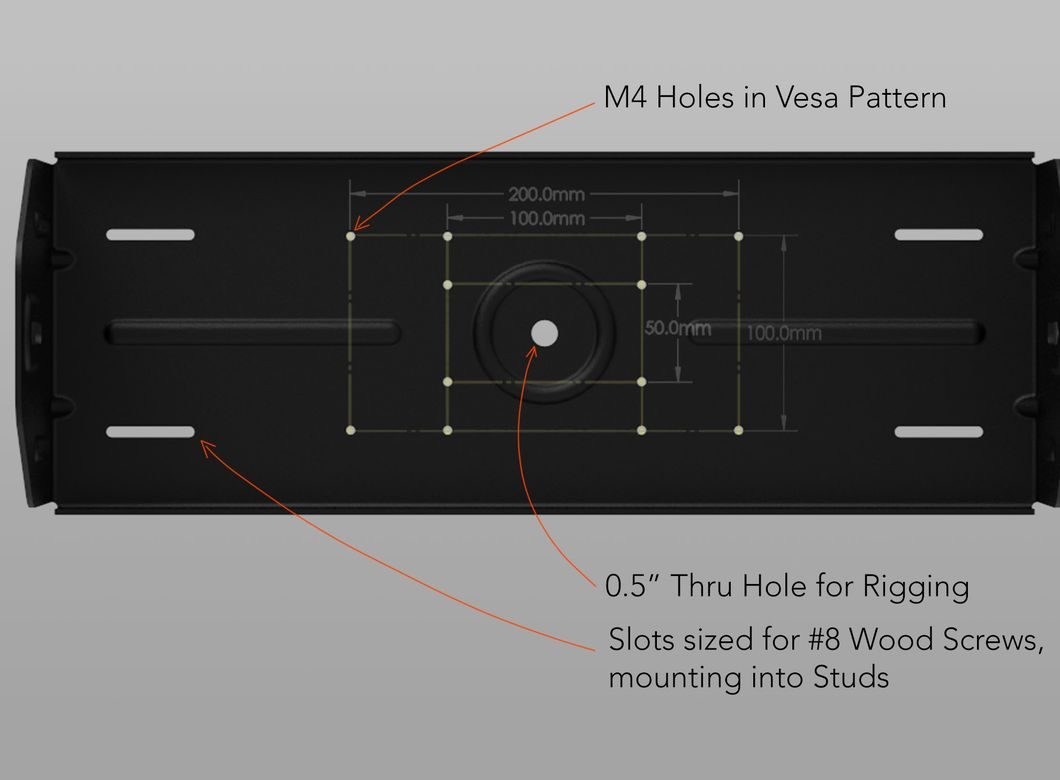

VESA holes, rigging hole and stud slots in one plate
04Interfaces VESA holes, rigging hole and stud slots in one plate

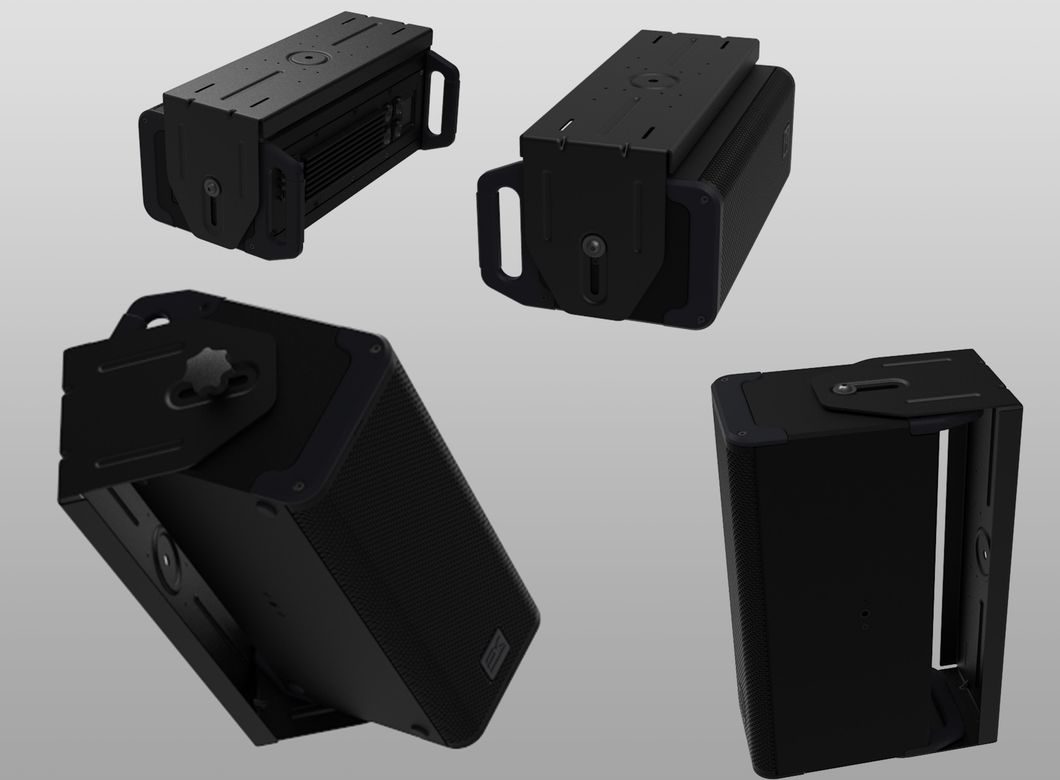

The TX26 in four positions
05Final The TX26 in four positions

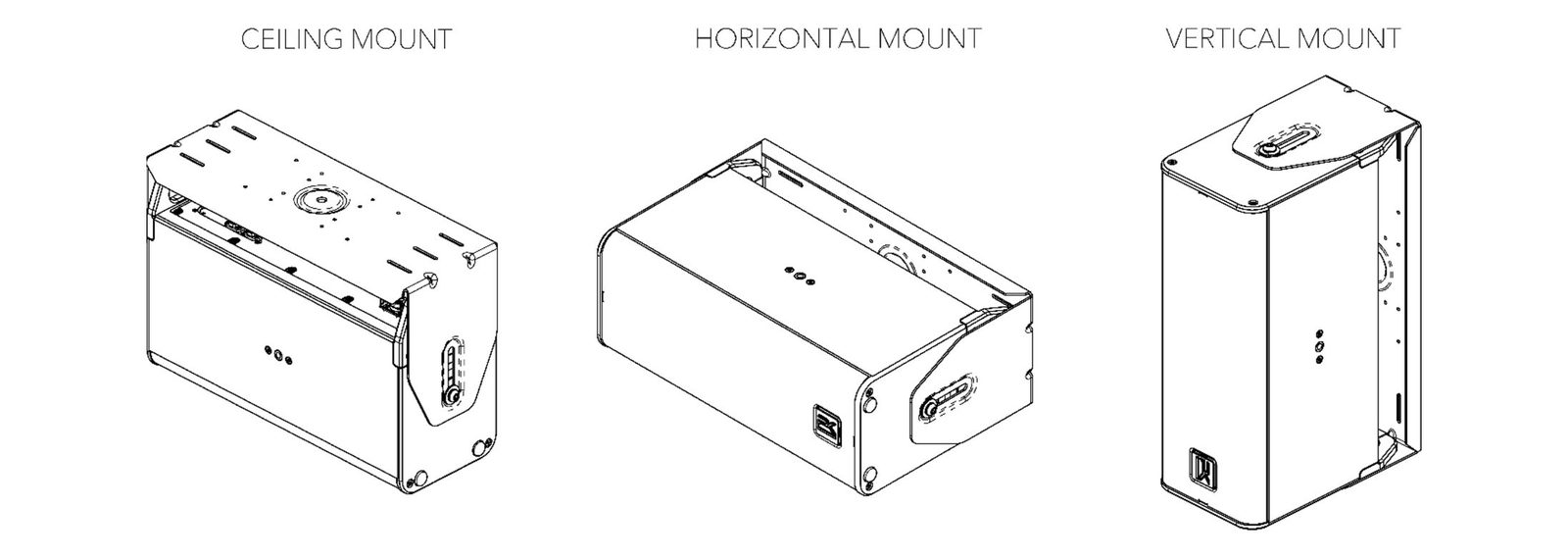

Ceiling, horizontal and vertical mounts, from the user manual
06Documentation Ceiling, horizontal and vertical mounts, from the user manual
  1. Formed, not welded The bracket is safety-critical, so a welded version would need weld inspections, adding logistics and supply-chain delays. Forming avoids those steps and was the more practical process: the release part is cut and formed 3 mm steel, stiffened by edge bends and embosses.
  2. Proven by FEA A 12 kg load on the single 0.5-inch rigging point gives a minimum factor of safety of 3.02, against a 2.7 target for steel.
  3. Fits what's on site VESA 100 × 100 and 200 × 100 holes, slots for #8 wood screws into studs, and an M10 slot for an off-the-shelf knob.
