PK Sound · T and TX series · 2023 – 2024

Carts and
accessories

The kit around the speakers: a cage cart that packs flat, updated carts, and the first range of TX accessories.

Cage cart and carts

I designed four posts and a lid that turn a T8 cart into a cage for truck packing. A toggle latch locks each post, and the posts and lid stow on the cart. I also updated the carts for better function, finishes and usability, and checked both for fit.

TX accessories, first phase

I planned the range and wrote its briefs and specifications: soft covers, cases, U-bracket, yoke, flight adapter and M10 adapters, each with milestones and sign-offs.

TX soft cover

One piece, for smaller crews who move speakers in their own vehicles. It closes over the grille so it isn't left on during a show, and leaves the handle and pole socket open.

Client: In-house
Company: PK Sound
Role: Cage cart design, cart design updates, fit checks, accessory planning and briefs
Product: T8 cage cart, carts, TX soft covers and rigging accessories

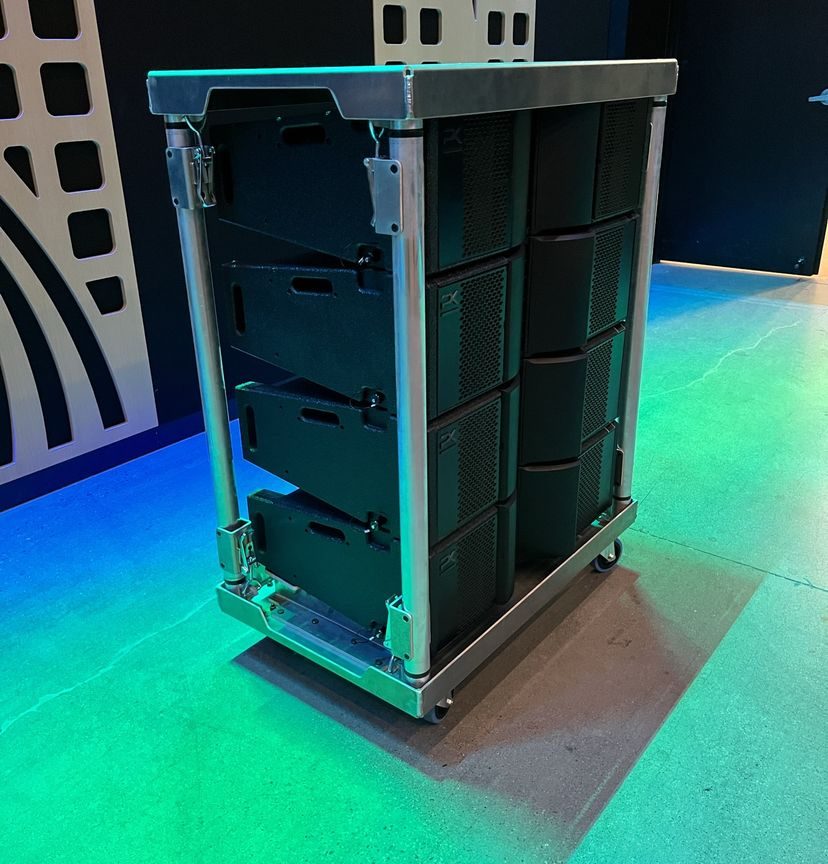

Cage cart around four T8s — 01Final Cage cart around four T8s

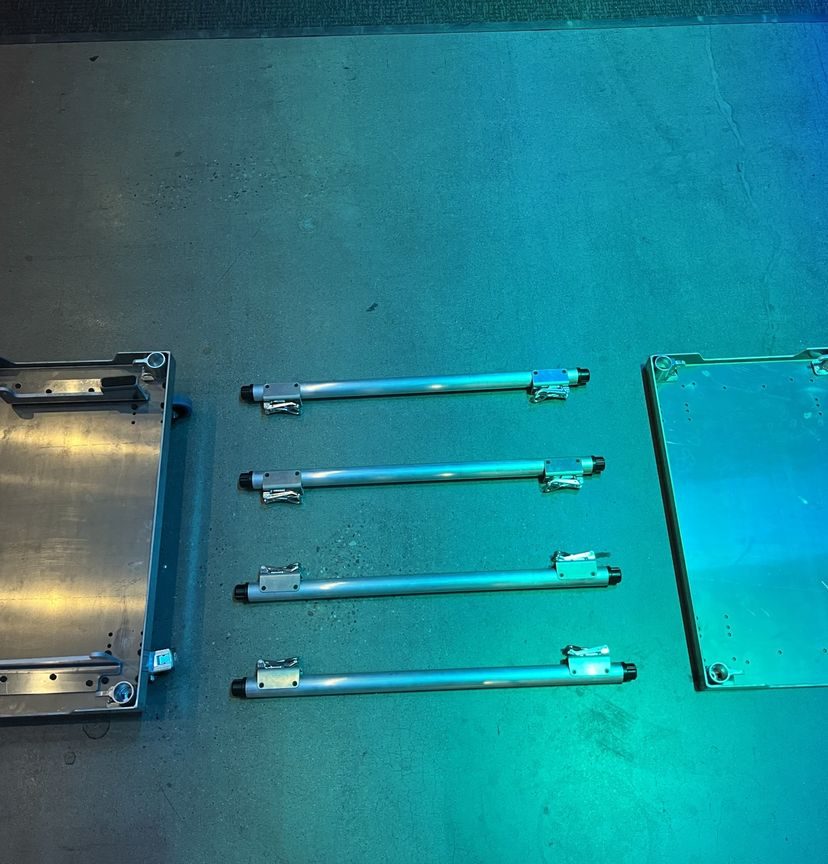

Cart, four posts and lid — 02Parts Cart, four posts and lid

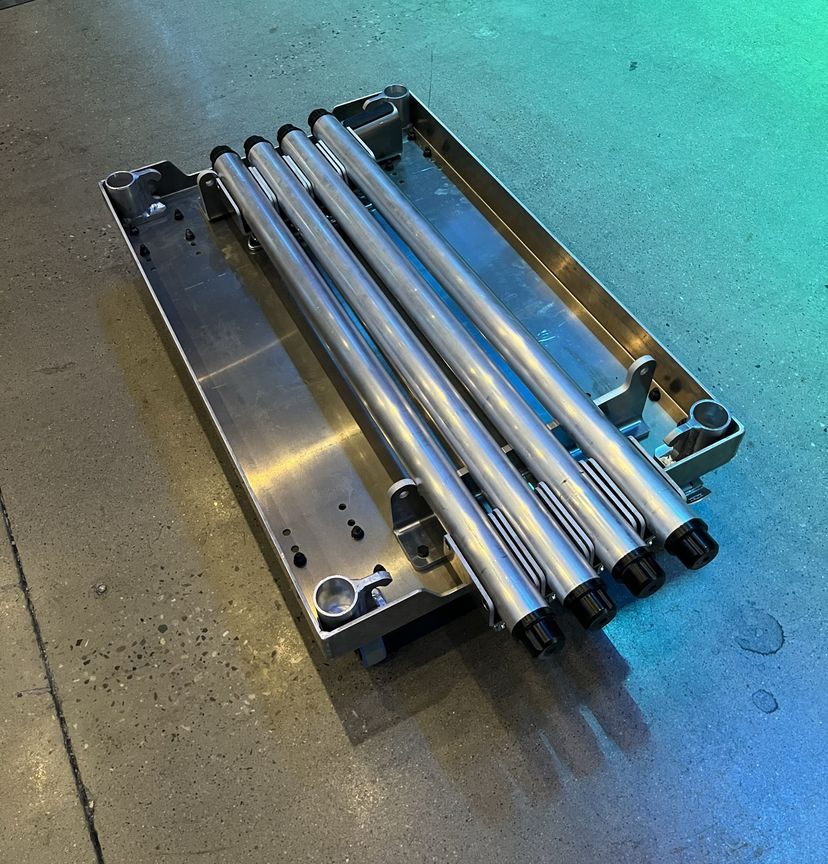

Posts stow on the cart — 03Storage Posts stow on the cart

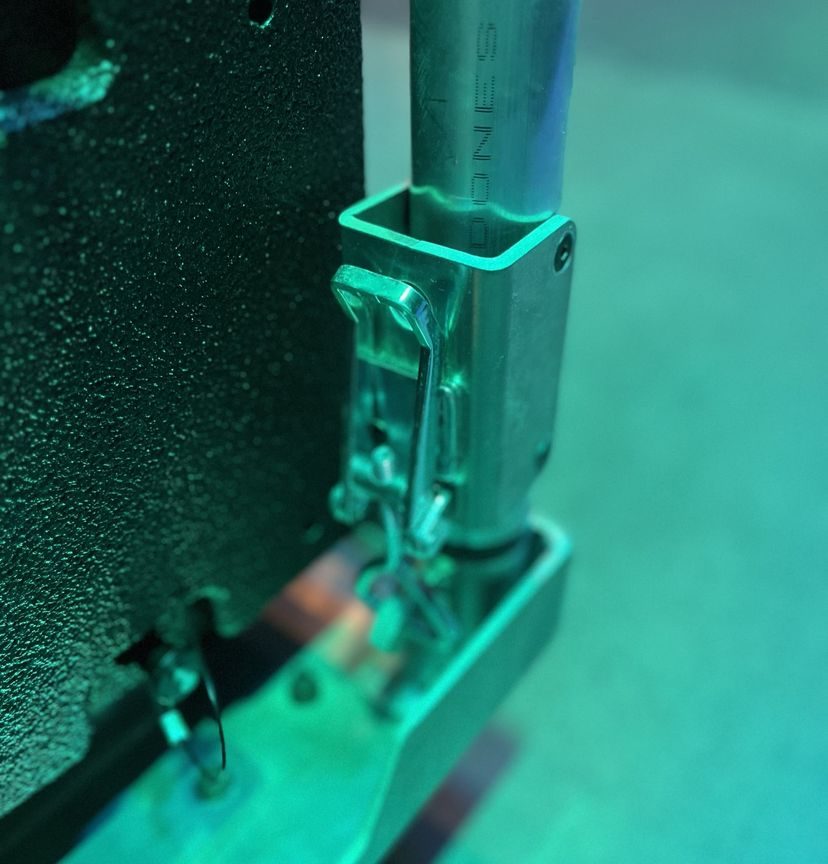

A toggle latch locks each post — 04Detail A toggle latch locks each post

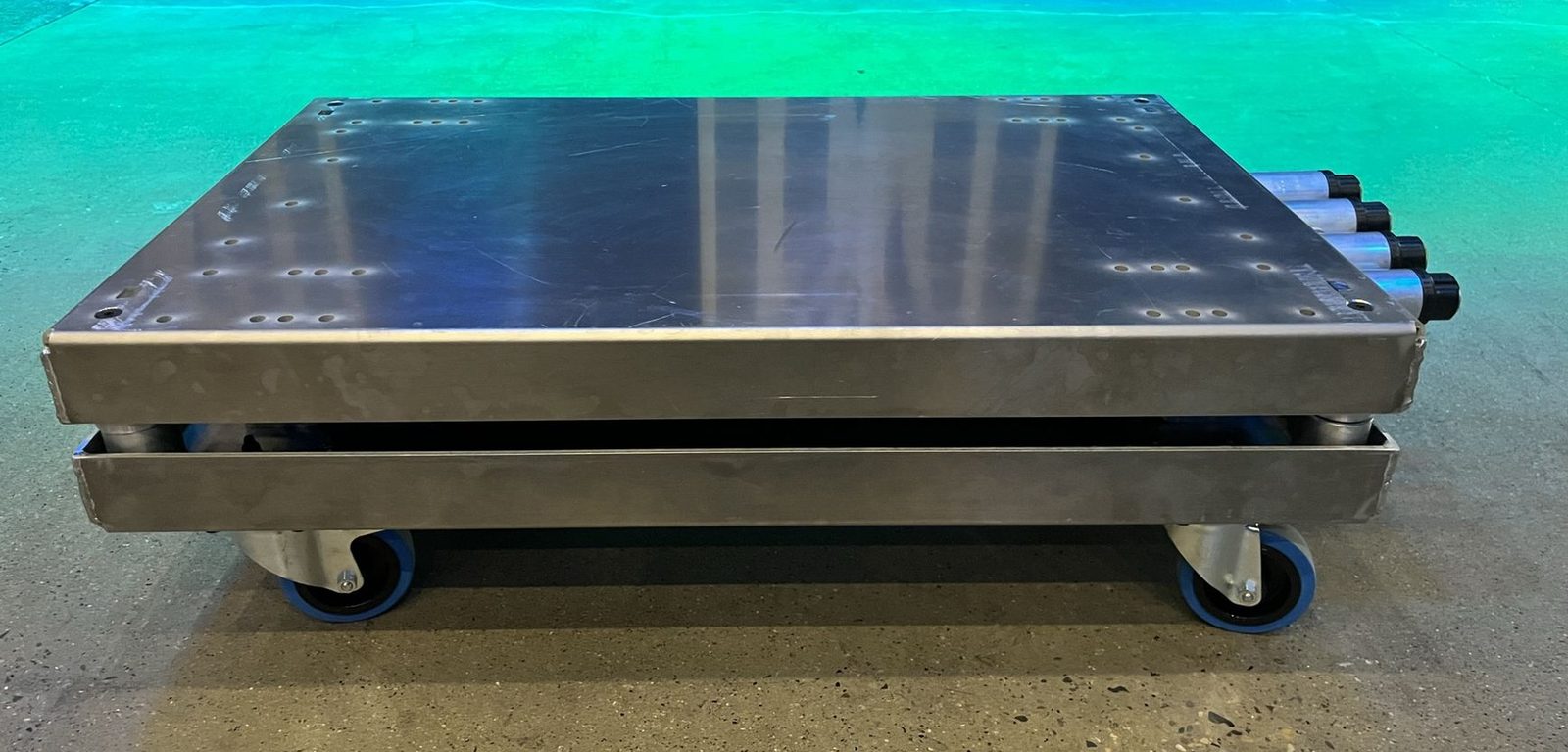

Packed down: posts and lid travel on the cart — 05Storage Packed down: posts and lid travel on the cart

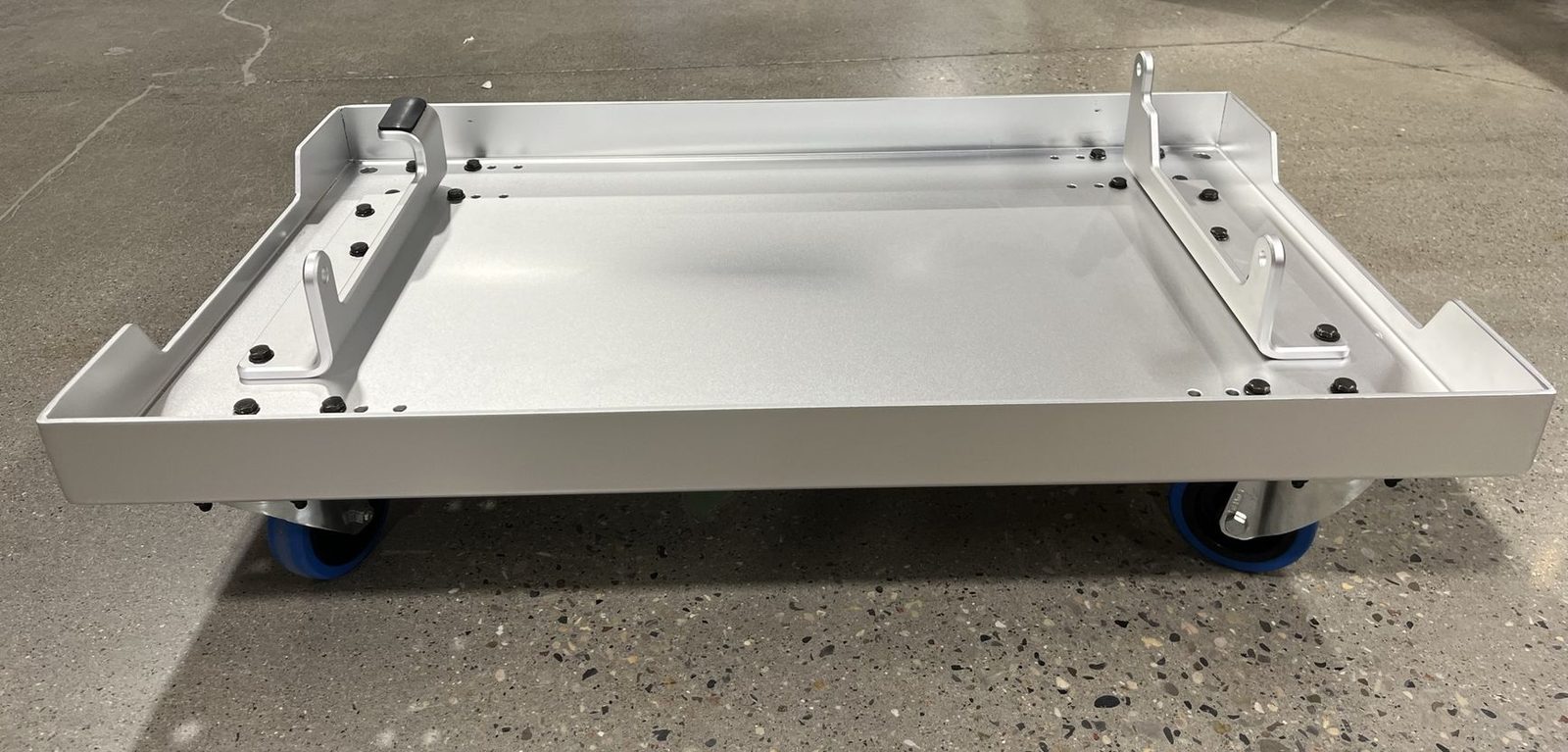

Updated cart: better function, finish and usability — 06Final Updated cart: better function, finish and usability

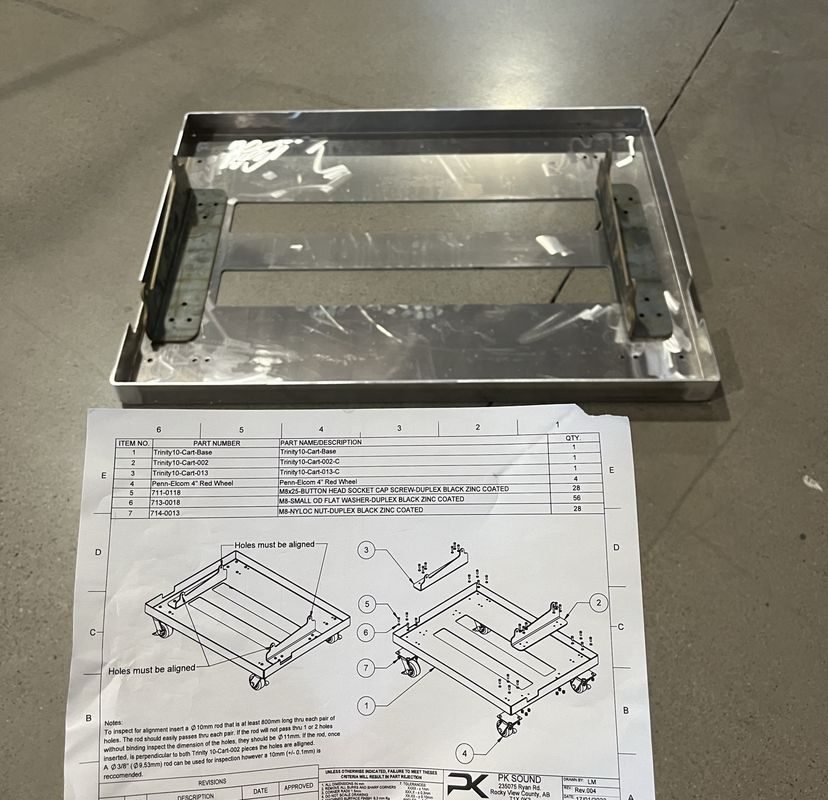

First-article cart against the assembly drawing — 07Fit check First-article cart against the assembly drawing

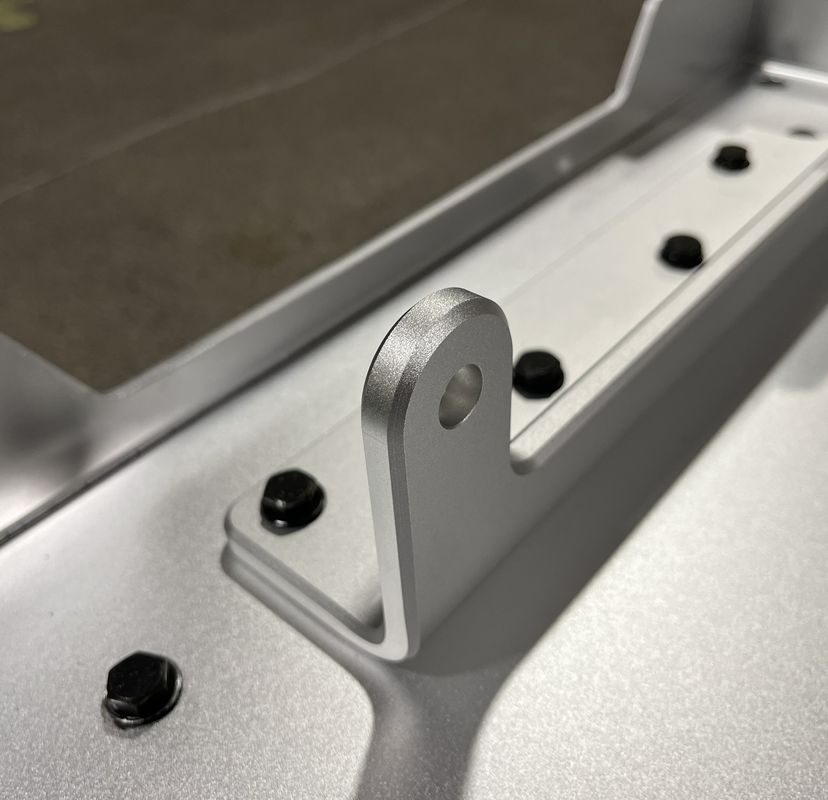

Machined receiver pins the stack to the cart — 08Detail Machined receiver pins the stack to the cart

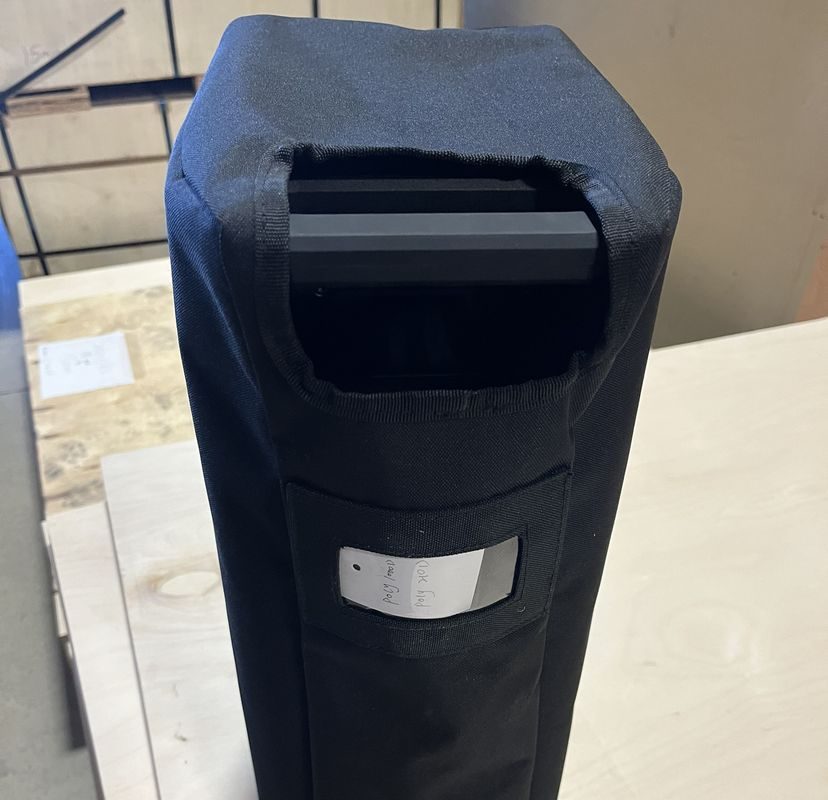

TX soft cover: handle access, asset-tag window — 09Prototype TX soft cover: handle access, asset-tag window

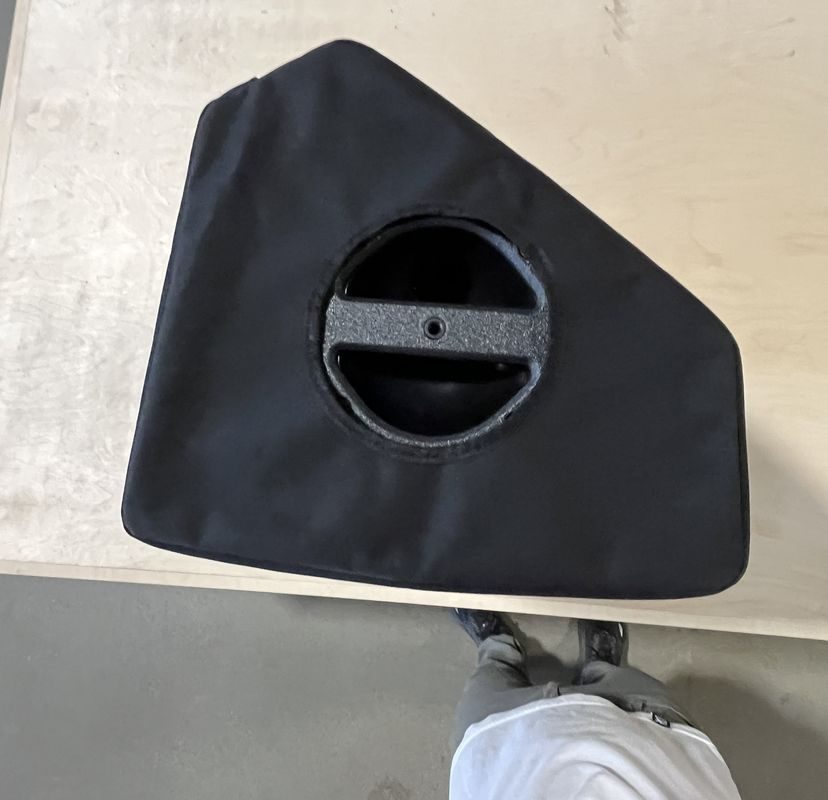

Opening for the pole-mount socket — 10Prototype Opening for the pole-mount socket
