Bryn Lucas

PK Sound · T series · 2022 – 2023

Transport
covers

Padded covers for T8 line-array and T18 subwoofer stacks on their carts. They protect the cabinets from truck to stage, and stay on while the system plays.

  • Research
  • Prototype
  • Test
  • DFM
  • Production

Outcome In production for the T8 and T18. Every feature traces back to field research with the crews who use covers every day.

Brief and spec

Gathered by interviewing the crews who use the covers, and by researching competitor covers:

  • Lower cost than the existing covers
  • Better protection
  • Quick and easy for crews to fit
  • Neat to store
  • A cleaner, more professional-looking system
Company
PK Sound
Role
Product Designer
Product
Transport covers for T8 and T18 stacks on carts

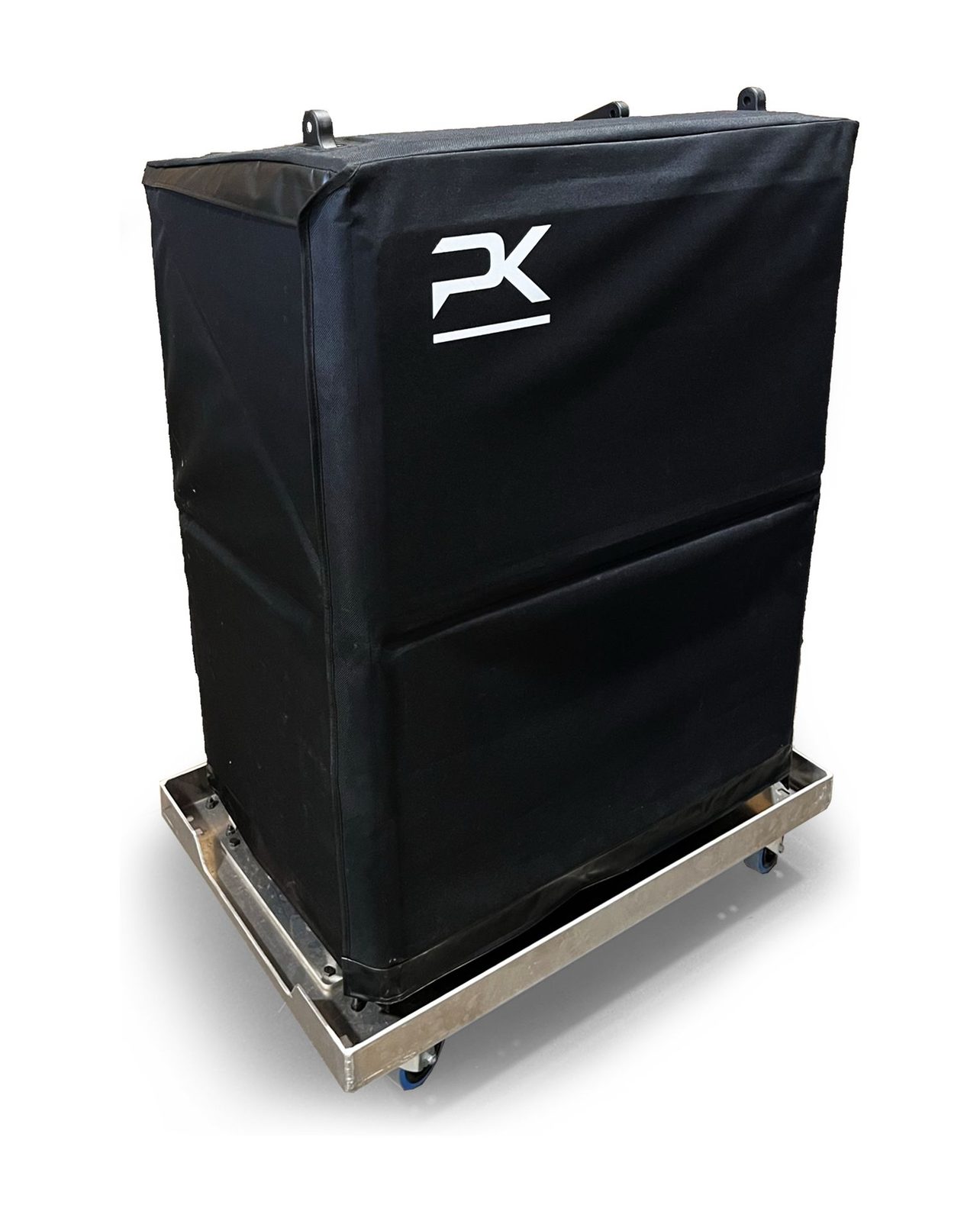

T8 cover: one part for four T8s on their cart
01Final T8 cover: one part for four T8s on their cart

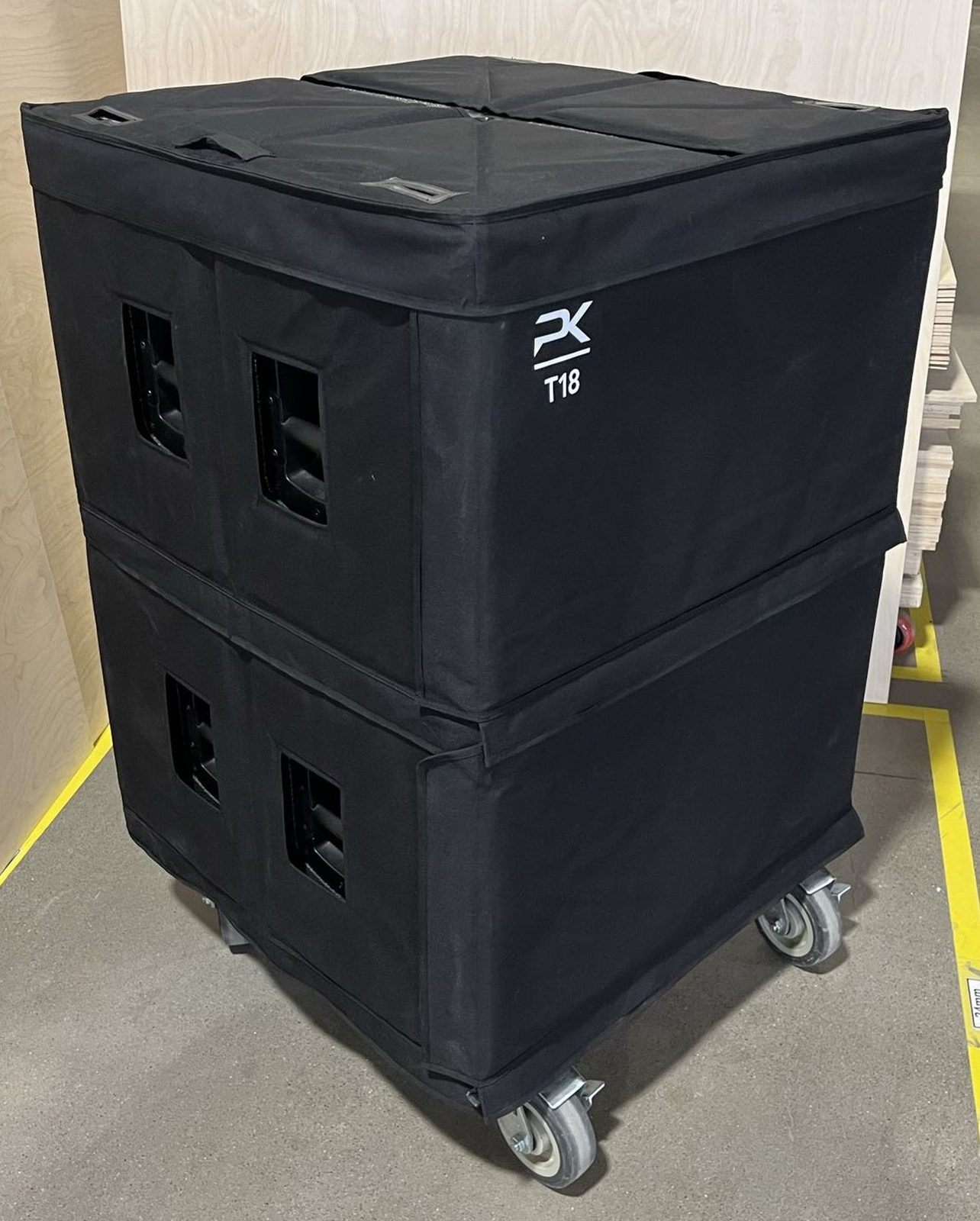

T18 cover: a top cover, plus one add-on kit per extra sub
02Final T18 cover: a top cover, plus one add-on kit per extra sub

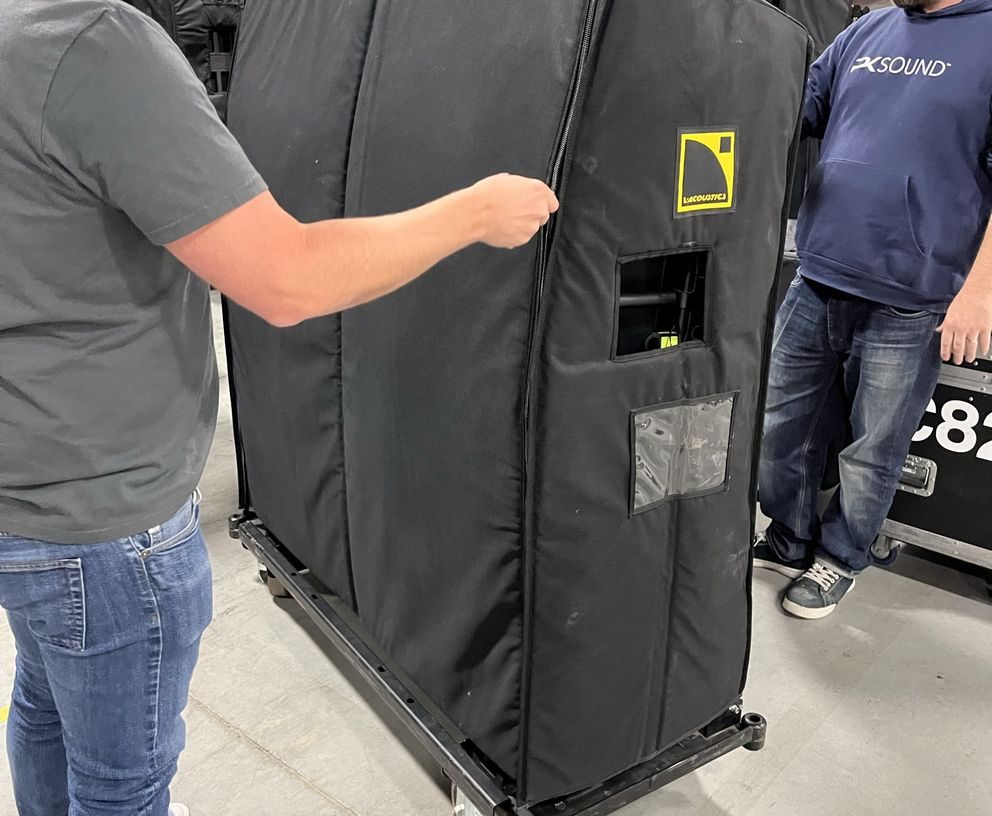

Site visit: a crew fits a competitor's cover
03Research Site visit: a crew fits a competitor's cover

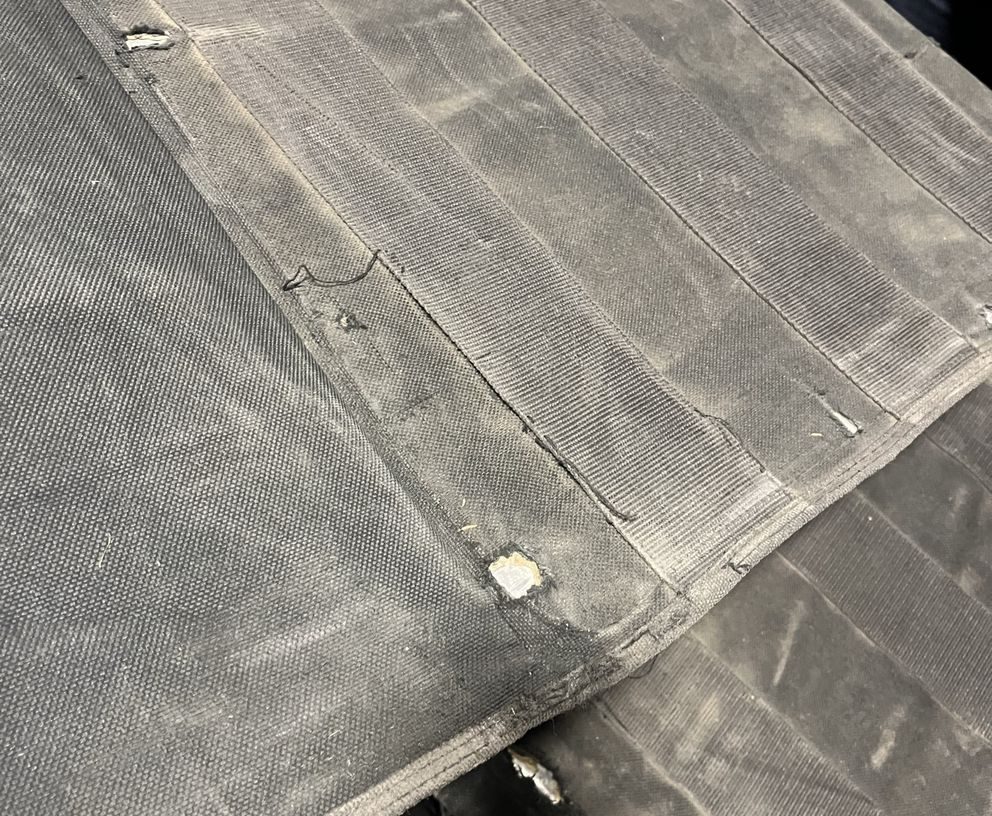

Most wear was at the bottom and on edges
04Research Most wear was at the bottom and on edges

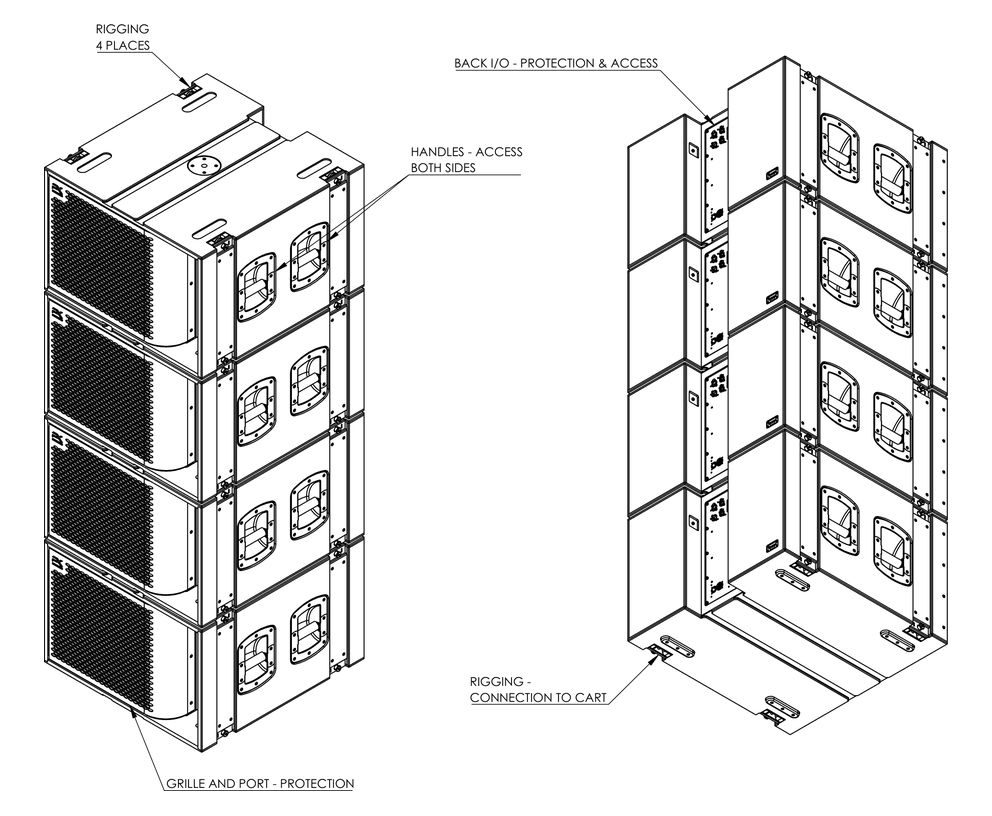

What to protect and what to leave open
05Requirements What to protect and what to leave open
  • 4T8s under one cover
  • +1add-on kit per extra T18

01Research to production

Findings into
features

Fabric and fastening research came first. From there, each feature answers a problem seen in the field or raised by crews.

Two systems

  • T8: four T8s under one cover
  • T18: modular. A top cover protects the top sub, and each sub below needs only an add-on kit. The top expands to clear the fly-bar.

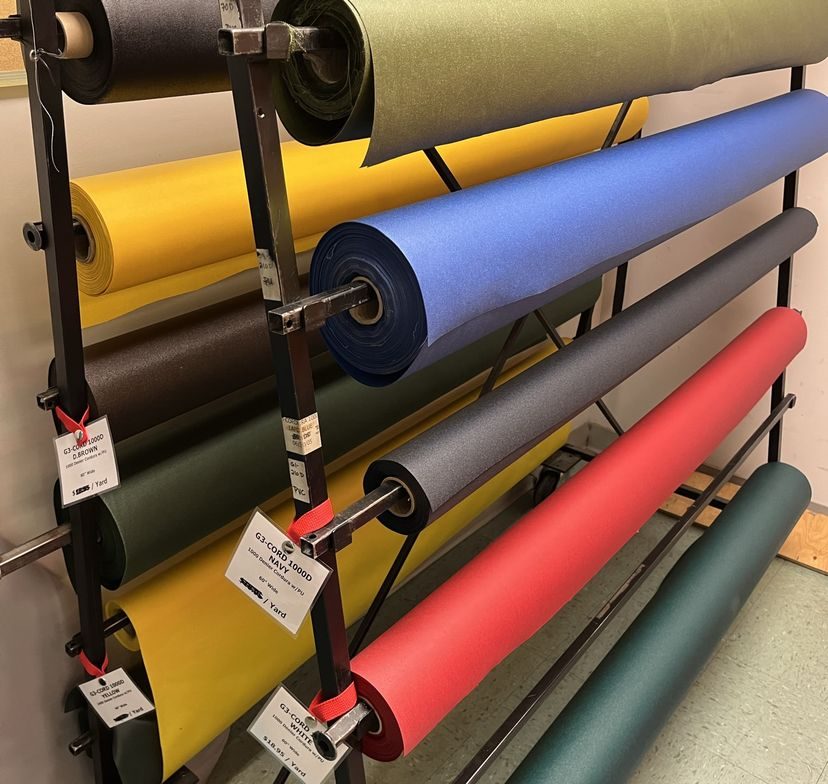

Fabric samples at the supplier
06Sourcing Fabric samples at the supplier

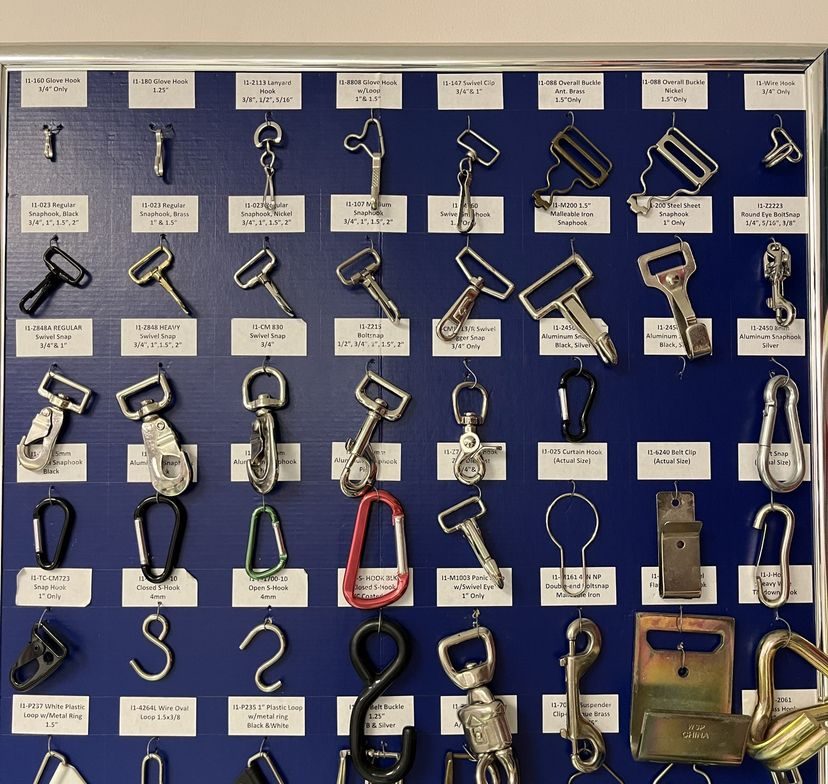

Buckles, hooks and webbing hardware
07Sourcing Buckles, hooks and webbing hardware
FoundDesigned in
Foam headliner trapped debris and tore420D nylon lining that slides on and sheds dirt
Hard inserts wore through the shell10 mm Coroplast, stitched into the padding
Most wear at the bottom and on edgesPVC tarpaulin skirt, grip pads and edge trim
Velcro hard to align; zips breakZips only where they're set and forgotten; 2-inch Velcro on doors
Crews run the system with covers onFront panel folds up; back door reaches the I/O
Covers live in trucks and under stagesSeams in the padding guide one flat fold
Hard to find the right cover in a pileLogo and model name; barcode sleeve for asset tracking

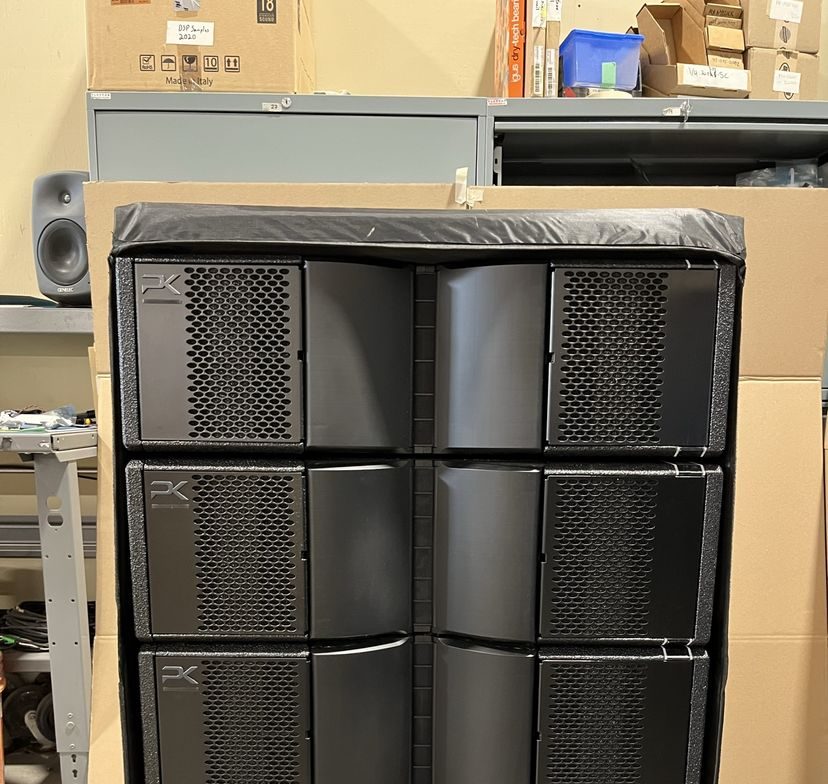

T8: front panel folds up, so the stack plays with the cover on
08Prototype T8: front panel folds up, so the stack plays with the cover on

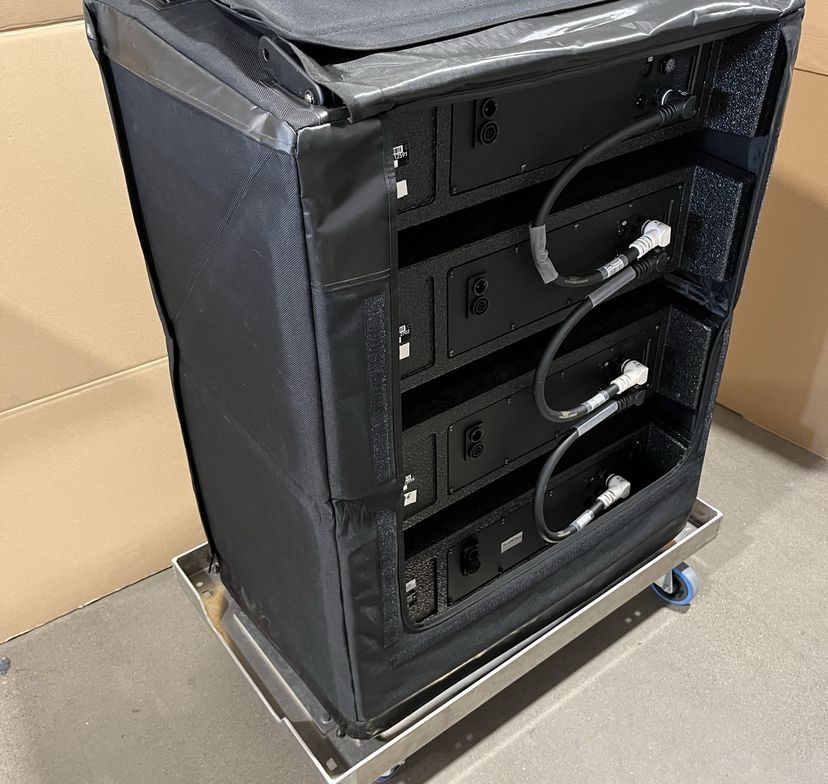

Back door opens to the I/O; cables stay connected
09Prototype Back door opens to the I/O; cables stay connected

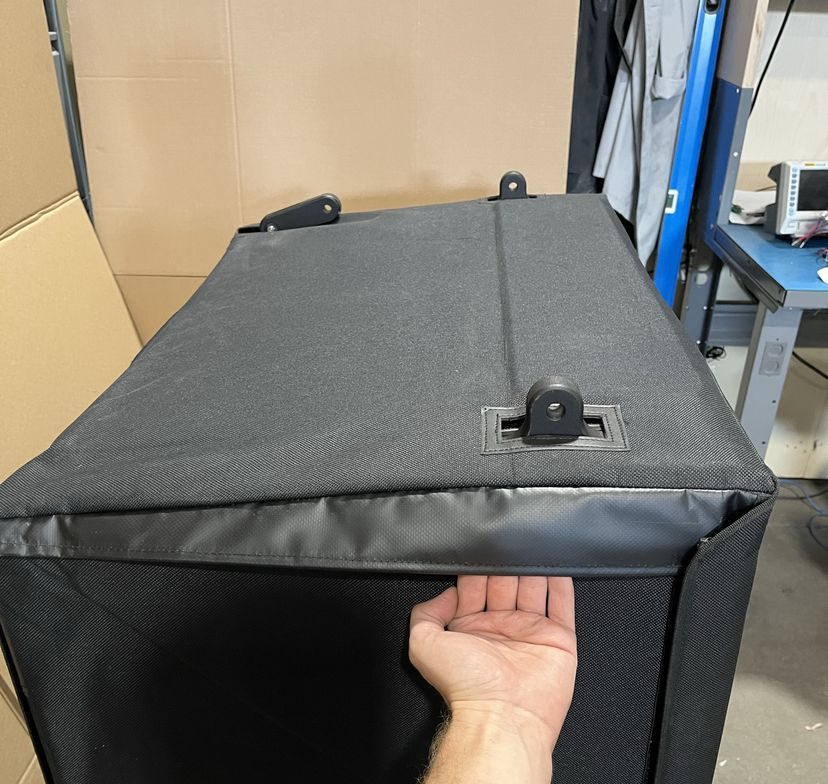

Tarpaulin grip pad shows where to pull
10Prototype Tarpaulin grip pad shows where to pull

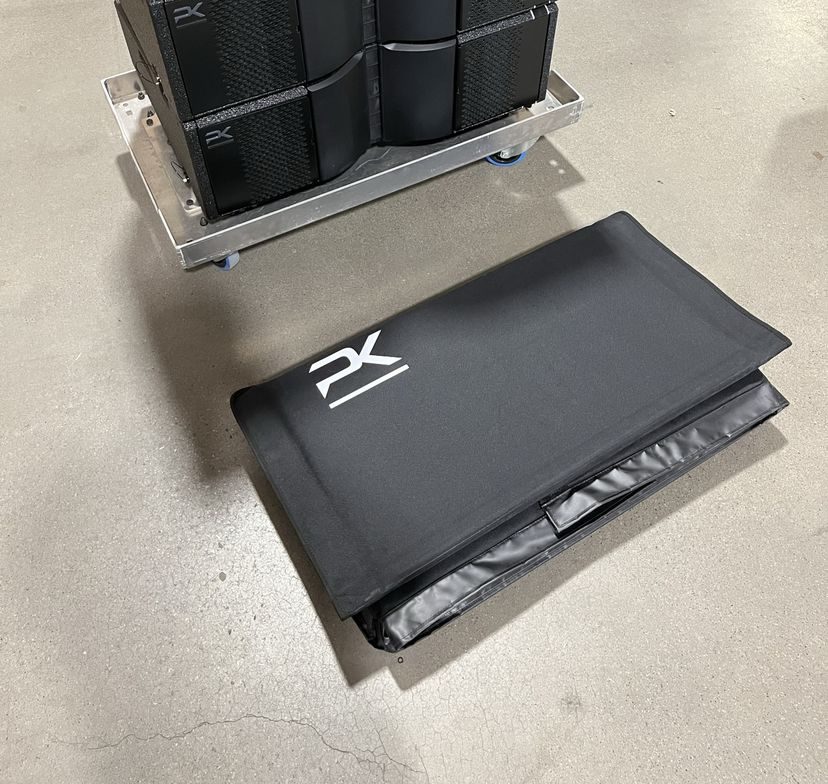

Folds flat on its seams, logo on top
11Prototype Folds flat on its seams, logo on top

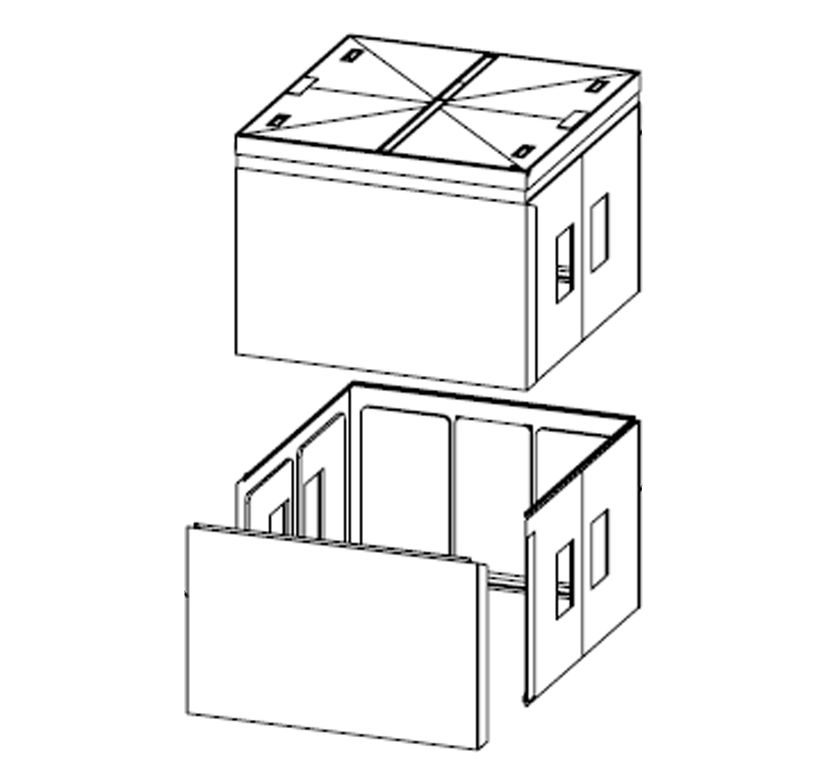

T18 system: top cover, add-on kit and front panel
12Concept T18 system: top cover, add-on kit and front panel

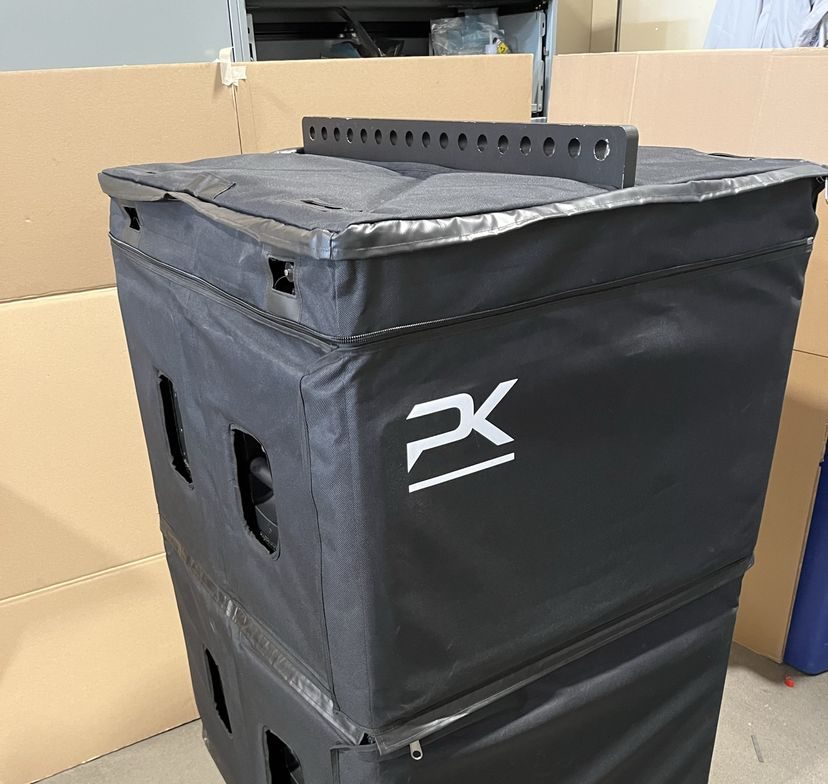

Expanding top clears the fly-bar
13Prototype Expanding top clears the fly-bar

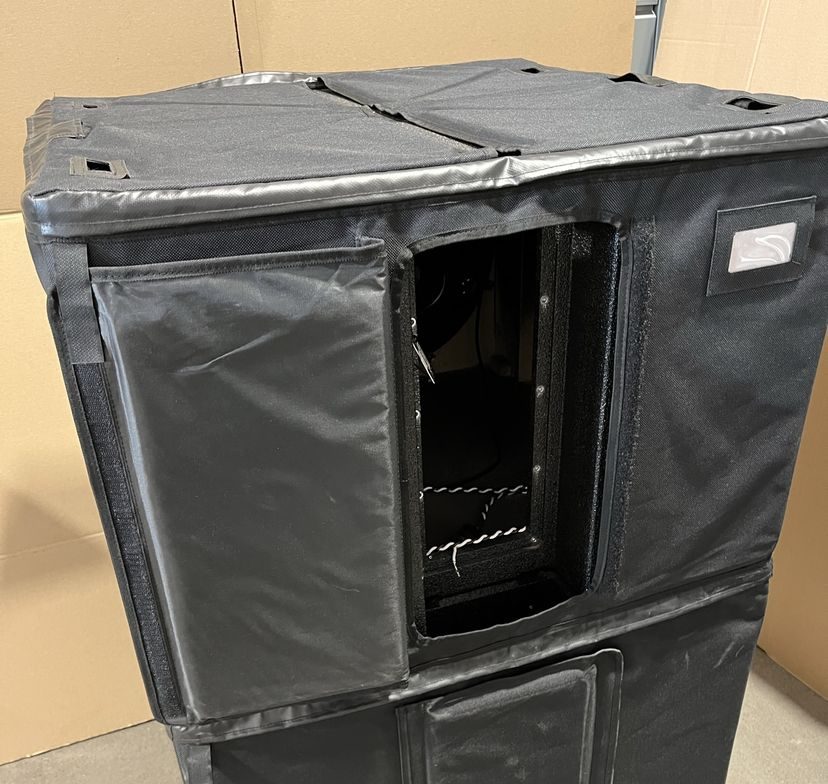

Back door opens to the amplifier panel
14Prototype Back door opens to the amplifier panel

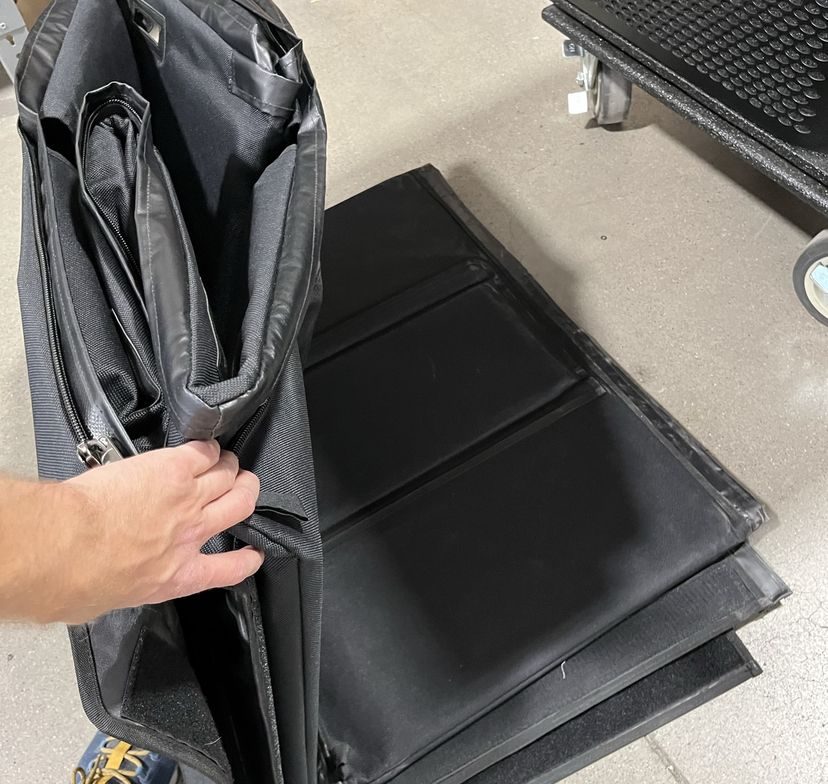

Seams in the padding guide the fold
15Prototype Seams in the padding guide the fold

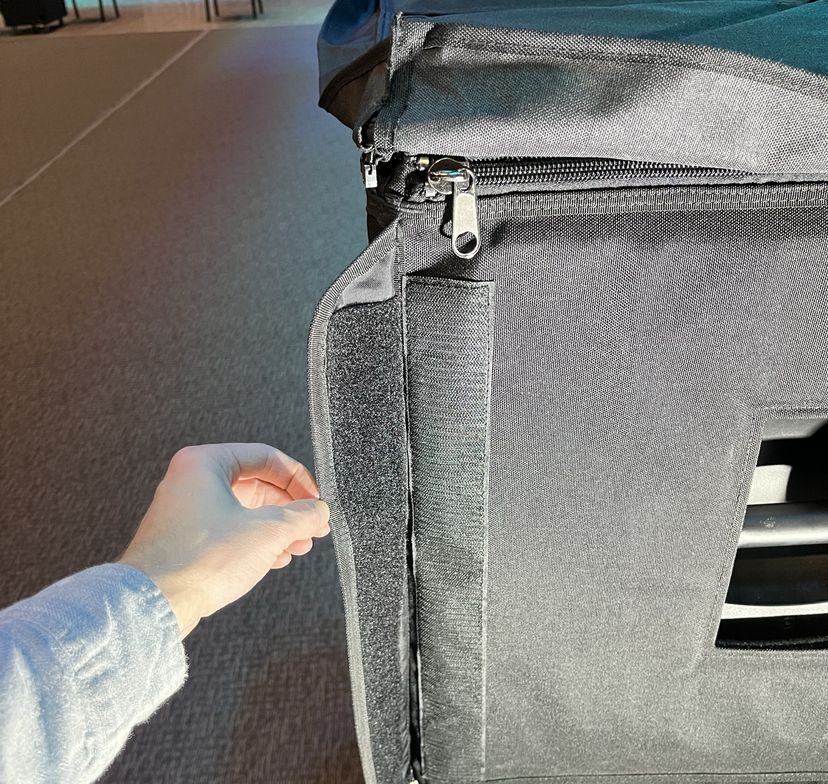

Door closes on Velcro; the add-on kit zips to the top cover
16Prototype Door closes on Velcro; the add-on kit zips to the top cover

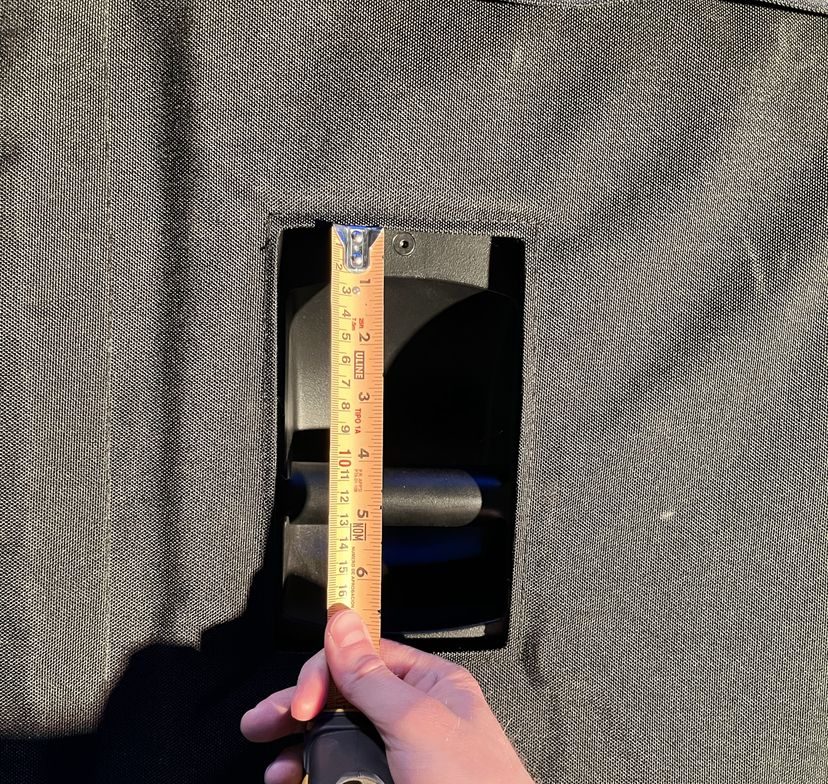

Fit check: handle openings measured on the cabinet
17Test Fit check: handle openings measured on the cabinet
