Bryn Lucas

PK Sound · T series · 2025

Ts15
subwoofer

A compact, self-powered 15-inch sub for corporate events, backstage fills and small venues. 136.5 dB from a 37.8 kg cabinet.

  • Research
  • Prototype
  • Test
  • DFM
  • Production

Outcome In production. I led research, prototyping, testing and DFM over about six months, working with an acoustic engineer.

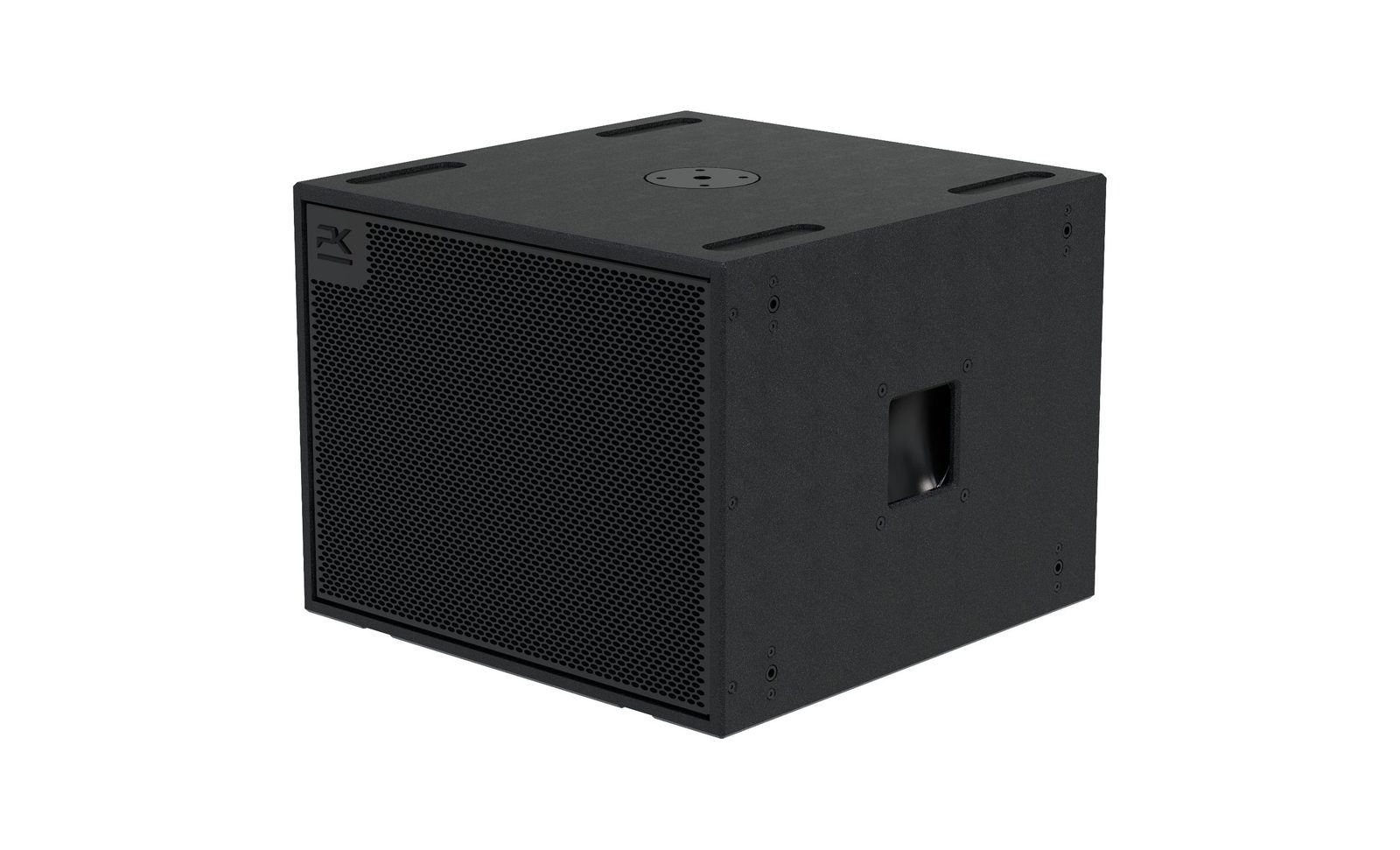

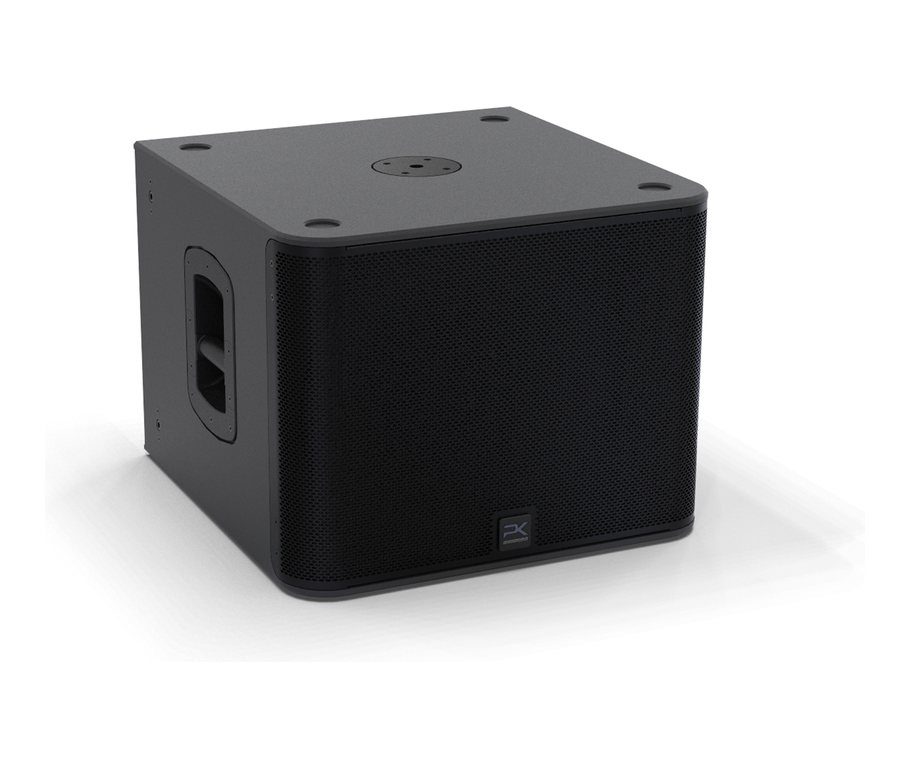

Render of the Ts15 subwoofer
01Final design: full-face grille, omnidirectional handle, M10 rigging points

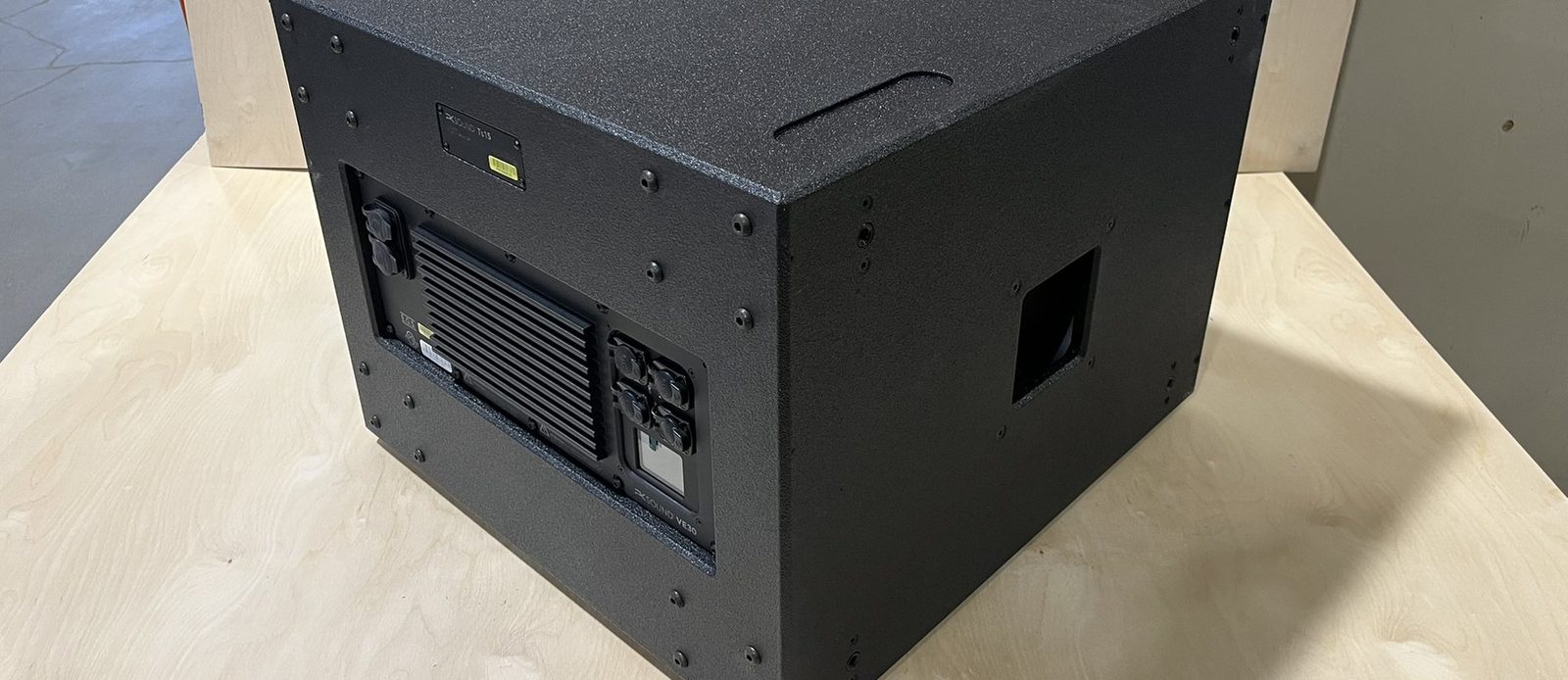

Finished cabinet: amplifier panel and handle pocket
02Finished cabinet: amplifier panel and handle pocket

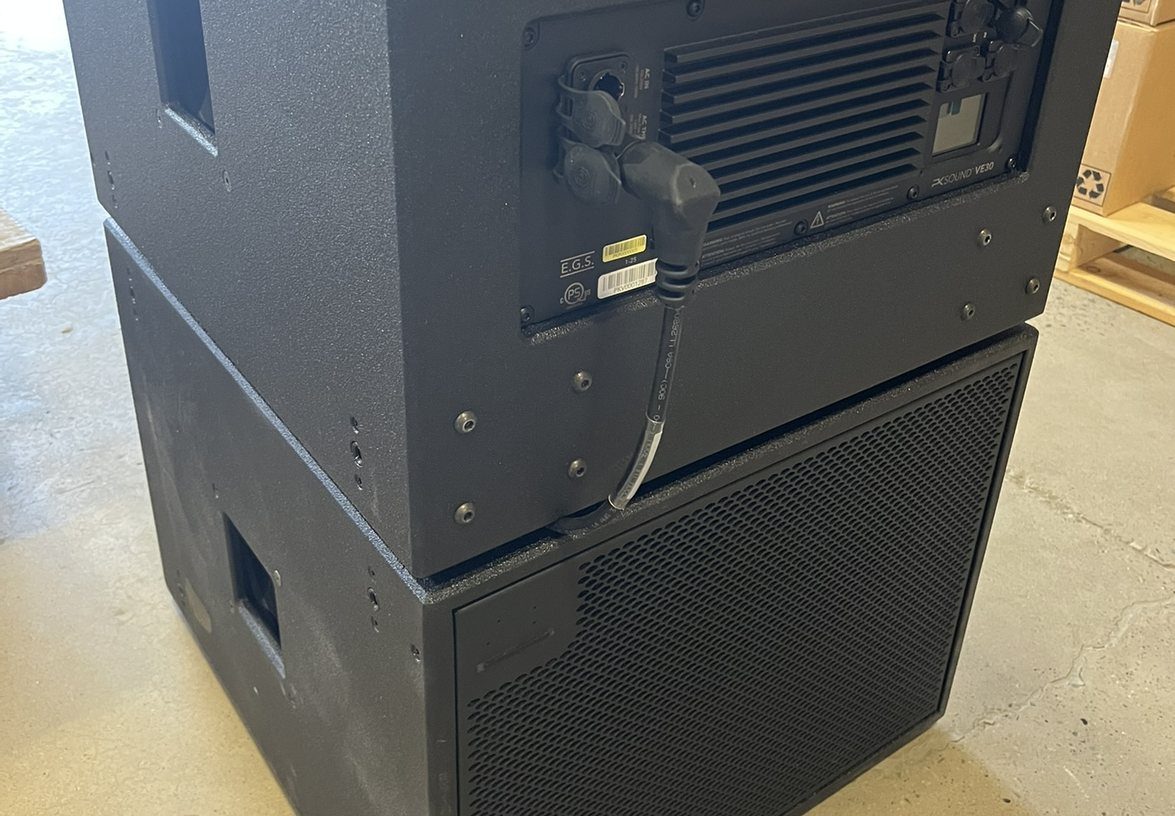

Ground-stacked pair
03Ground-stacked pair
SpecPK SoundTs15Meyer750-LFCd&bT-SubL-AcousticsSB15m
AmplifierBuilt inBuilt inPassivePassive
Range33–100 Hz35–125 Hz47–140 Hz40–100 Hz
Max SPL136.5 dB130.5 dB130 dB137 dB
Weight37.8 kg48 kg17 kg36 kg
CastorsYesNoNoNo
04Benchmarked against the closest competitors (published specs, range at −10 dB)
Company
PK Sound
Role
Product Designer
Product
Ts15 1 × 15" self-powered subwoofer

01Concept to prototype

Brief and
concepts

PK's point-source series needed a sub to complement those boxes in small, more intimate venues.

Challenges

  • Small cabinet, large amplifier
  • Port noise

Requirements

  • Fits under stages
  • Optional castors on the back
  • Hits BoM targets
  • Reuses as many parts as possible from the existing SKU list
  • Sounds amazing

Use cases

  • Corporate events and conferences
  • VIP and backstage fills
  • Installs in bars, clubs and theatres
  • Not for sub walls or flown arrays

Specification

I drafted and refined the product architecture specification, and secured sign-off before detailed design.

Key choices

  • Handles: off-the-shelf omni handles cut cost and keep a good grip in any orientation
  • Grille: one grille over the driver and port gives a cleaner look and a lower BoM

Prototypes

I wrote the toolpaths, CNC-machined and built the plywood test cabinets myself, to prove the port, bracing and handle pockets.

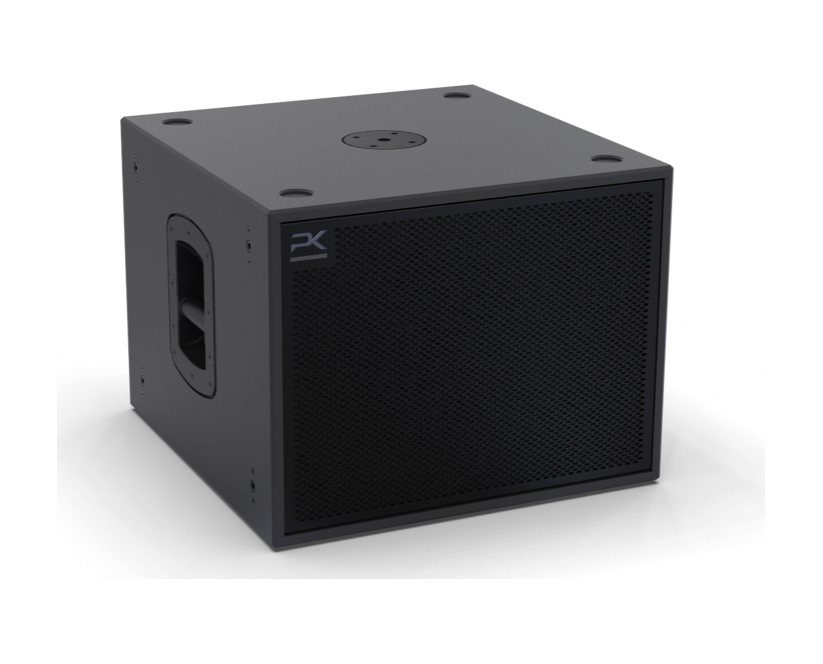

Handle concept: the reused T18 handle

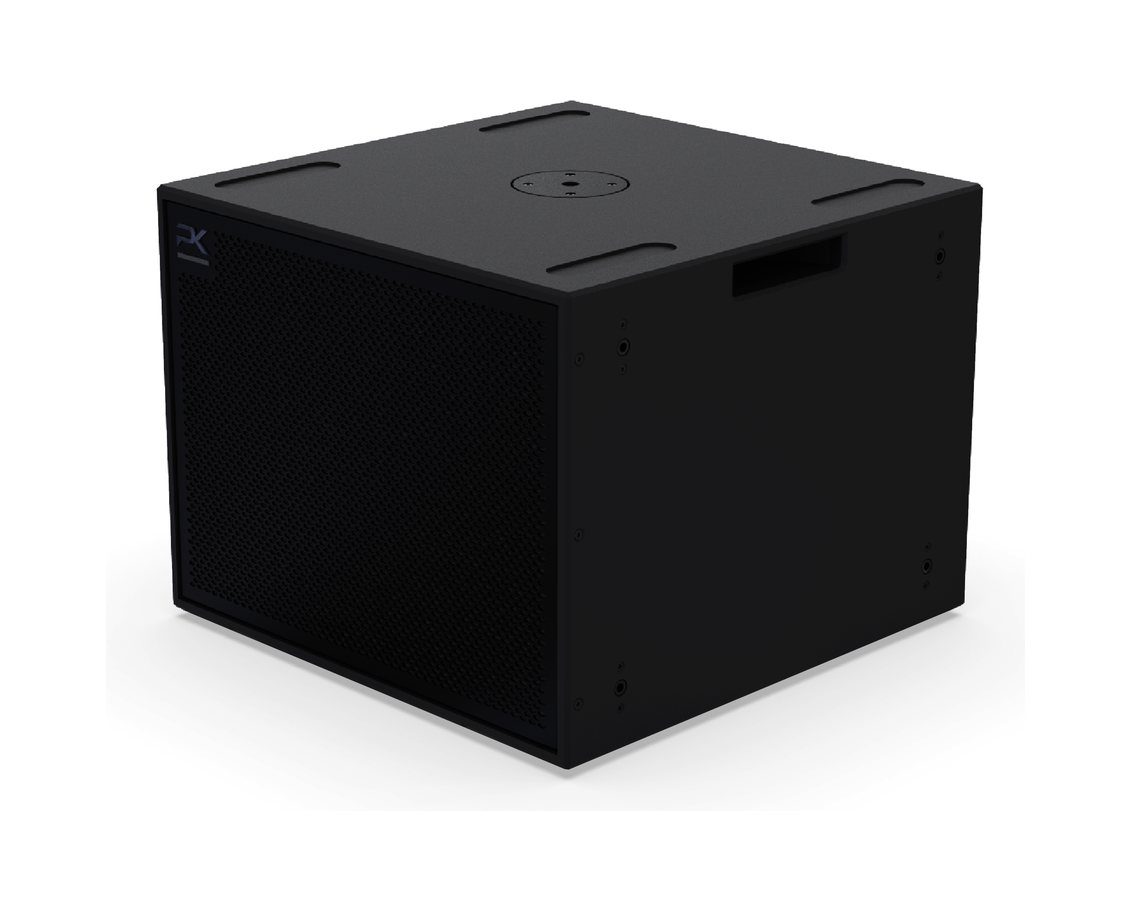

Handle concept: a handle cut into the cabinet

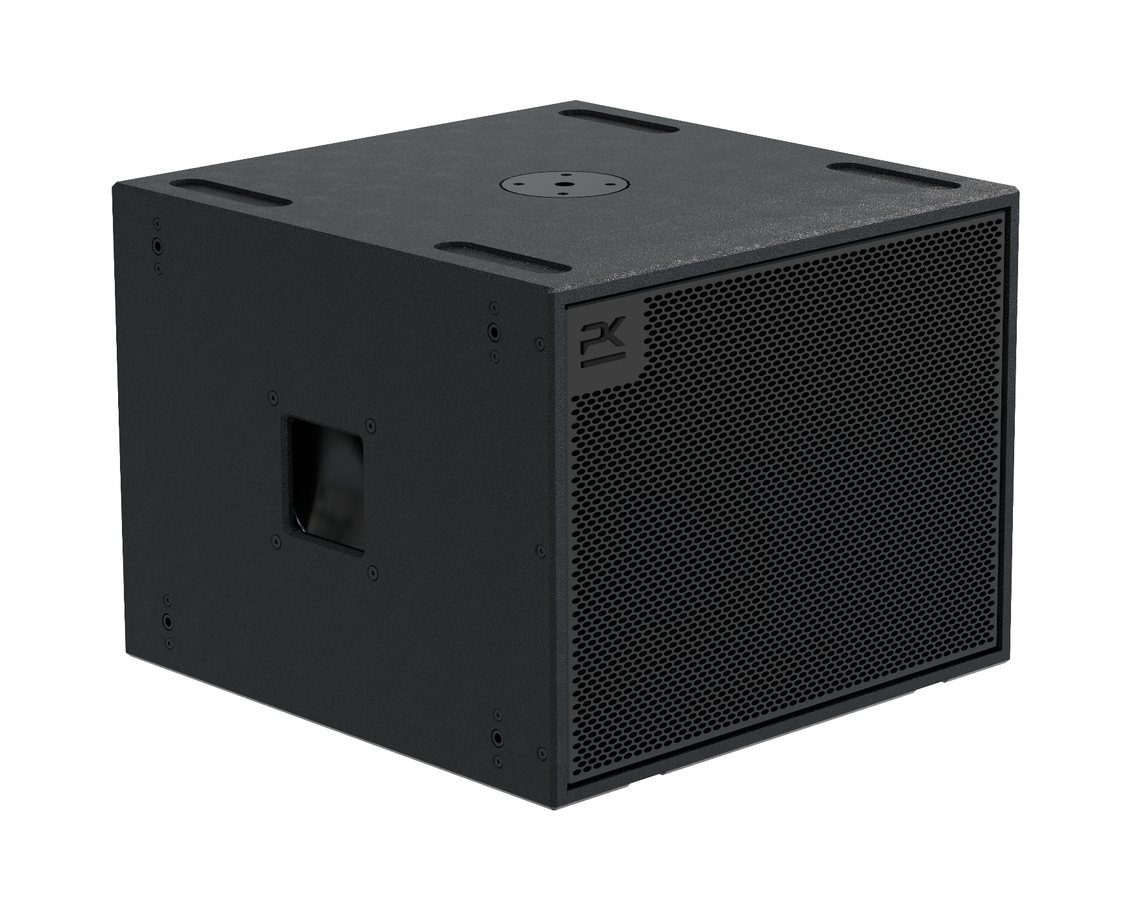

The chosen off-the-shelf omni handle
Grille concept: one grille over the driver and port

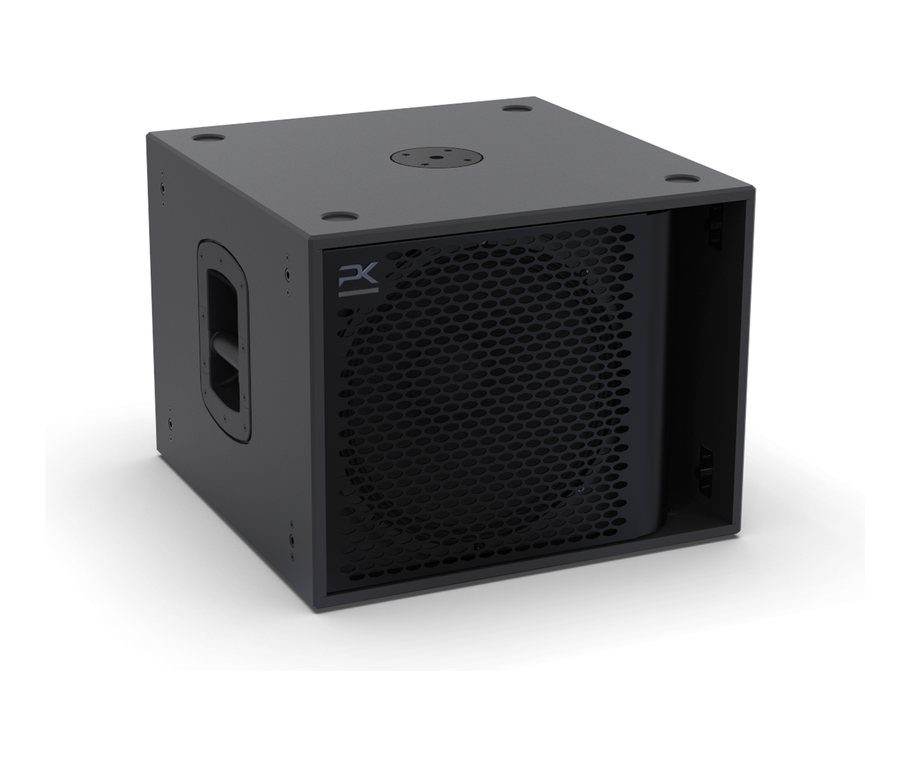

Grille concept: driver grille with an open port
Grille concept: larger openings
Grille concept: wrapped edges

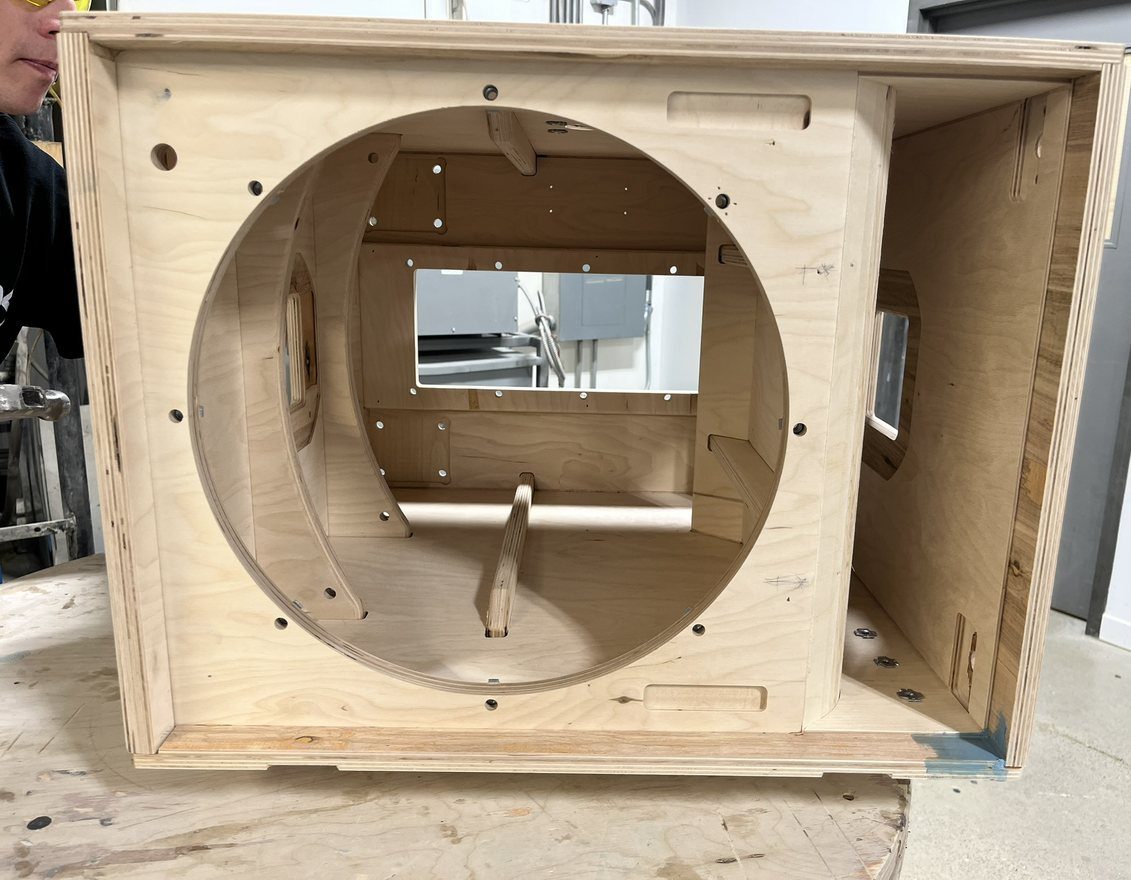

Plywood test cabinet: baffle and bracing

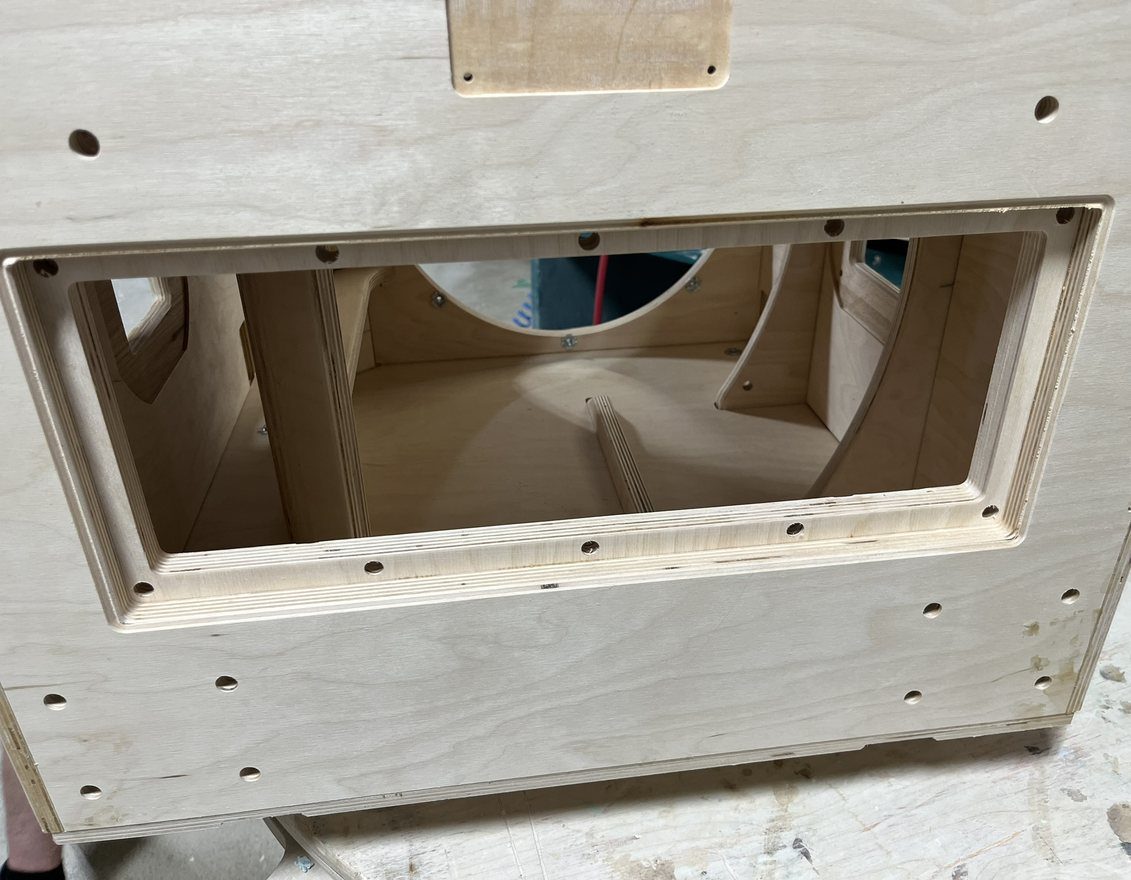

Plywood test cabinet: rear panel cut for the amplifier

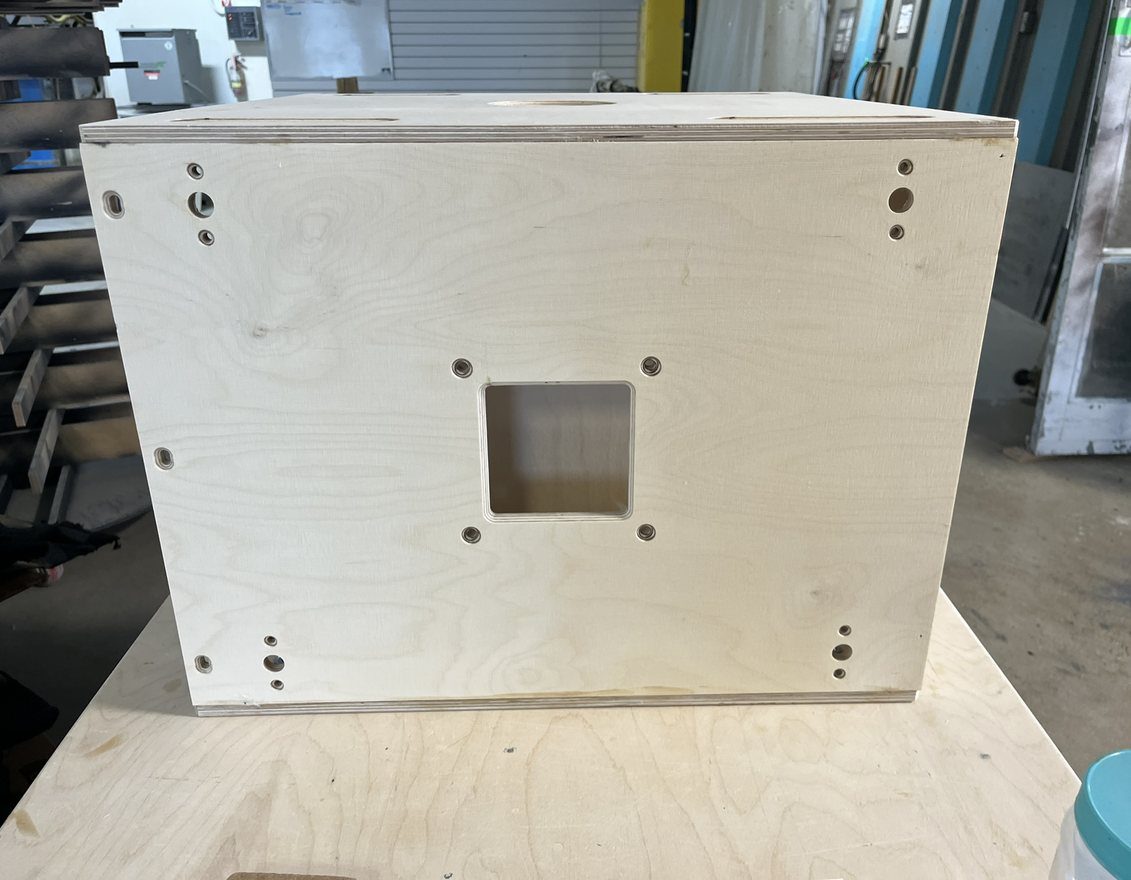

Plywood test cabinet: side panel with the handle pocket

02Development

Quieter port, proven rigging

In a cabinet this small, the amplifier crowds the port entry. The port was reshaped, and the rigging was load-tested before release.

Port research

Independent, self-initiated research into port design: air velocity, turbulence and port noise. The aim was a quieter port that stays within DFM practice.

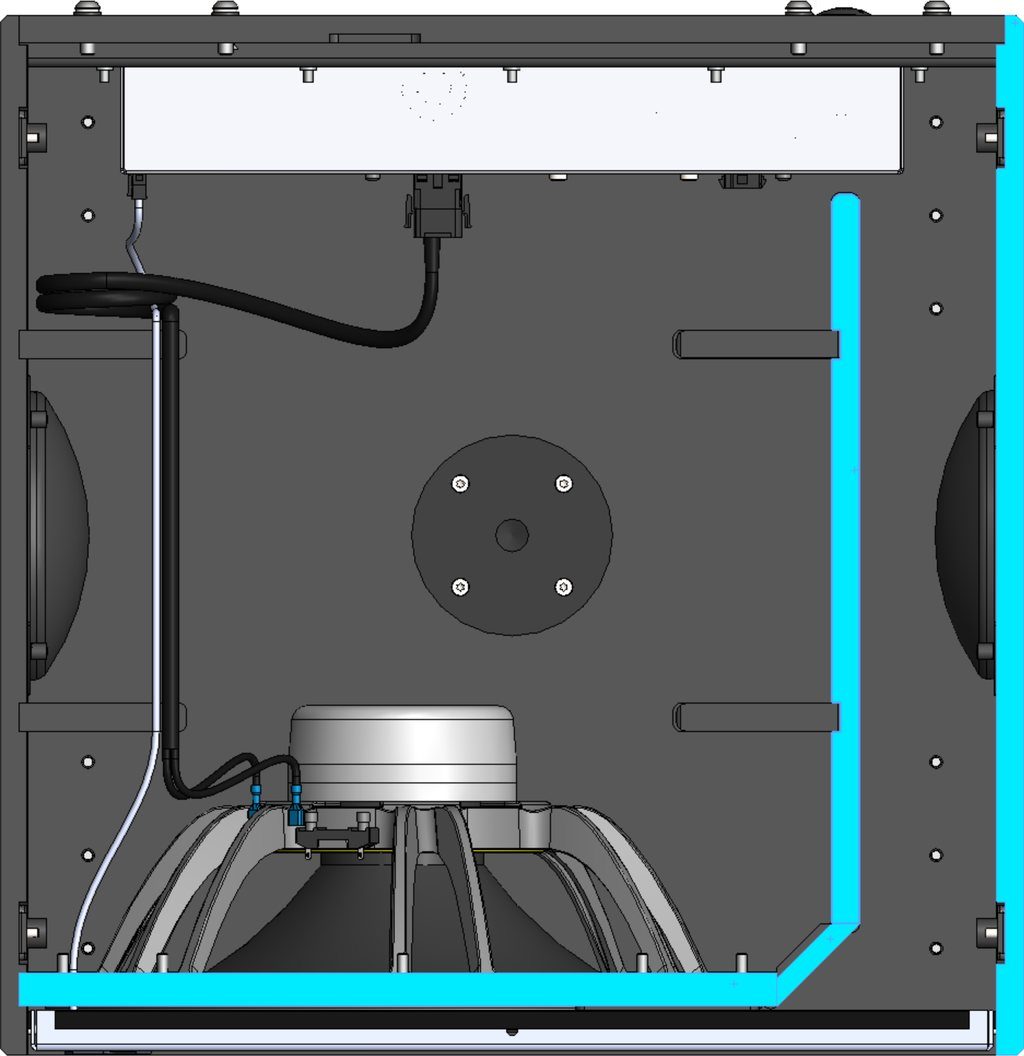

Straight port wall, crowded by the amp
05Before Straight port wall, crowded by the amp

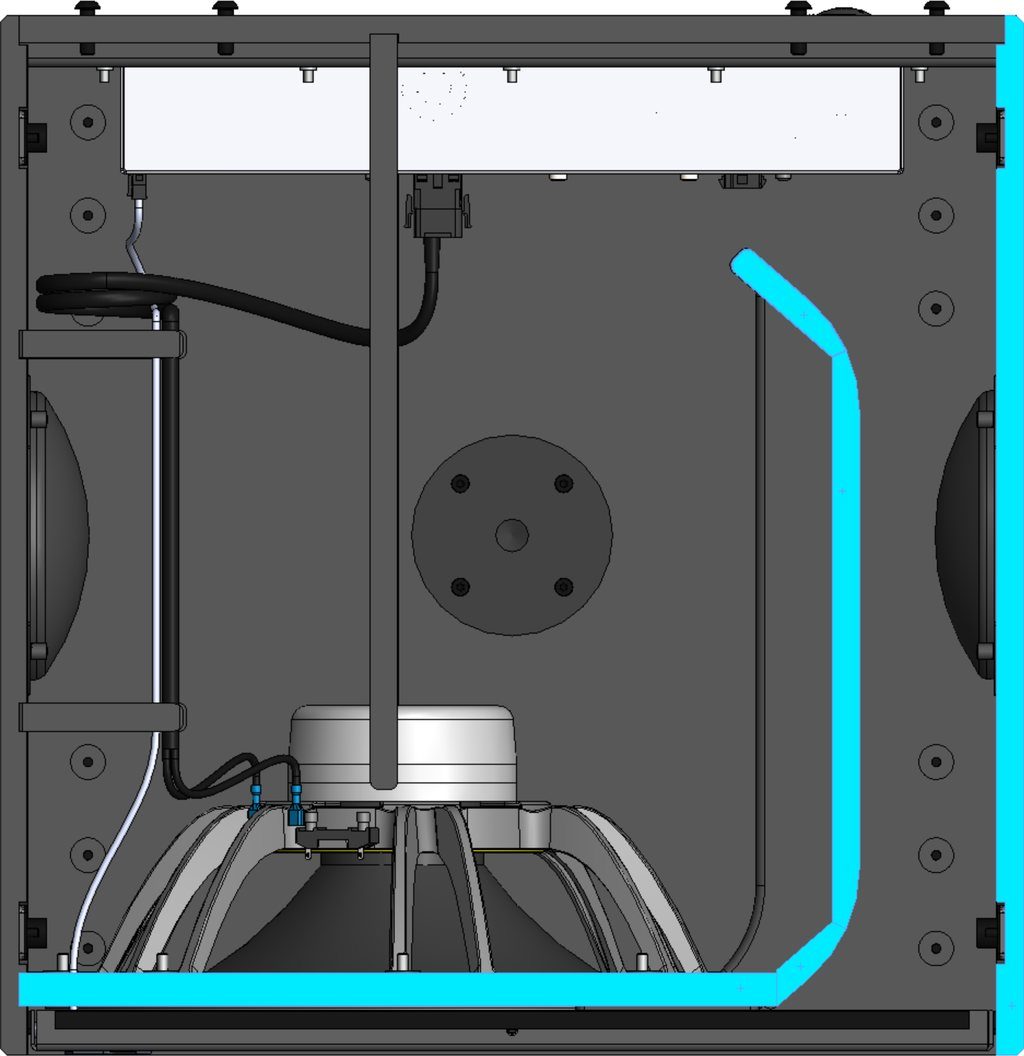

48° flare with an R80 edge
06After 48° flare with an R80 edge

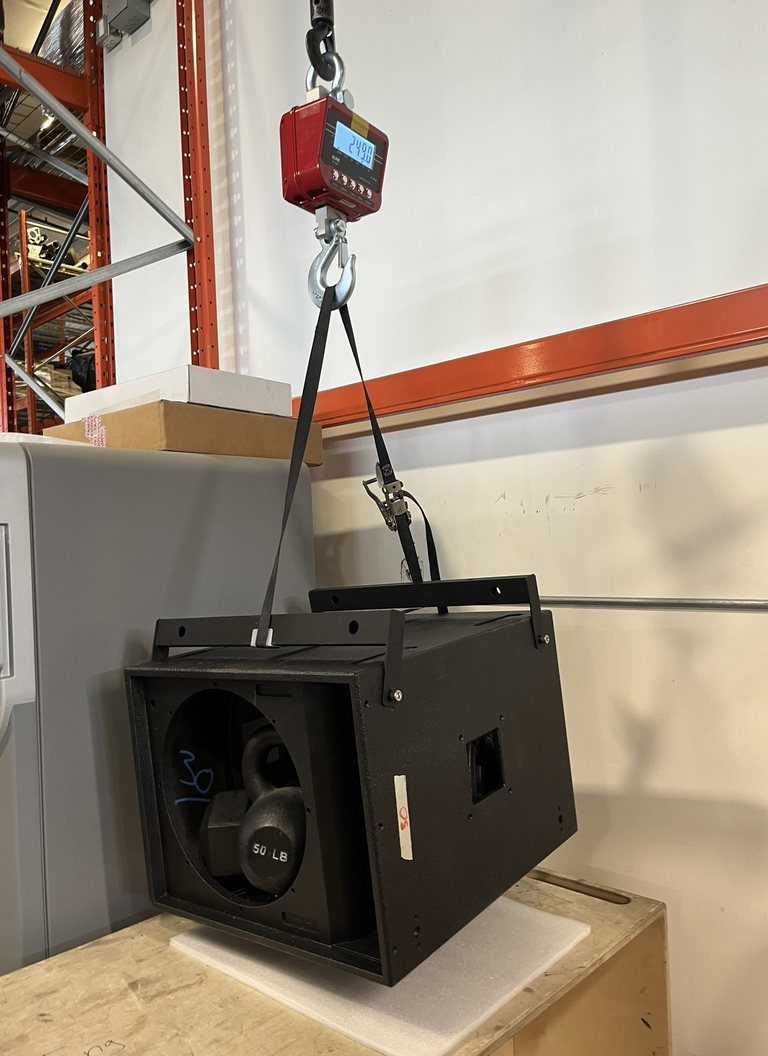

Weighted load test, to the CB Scheme
07Test Weighted load test, to the CB Scheme

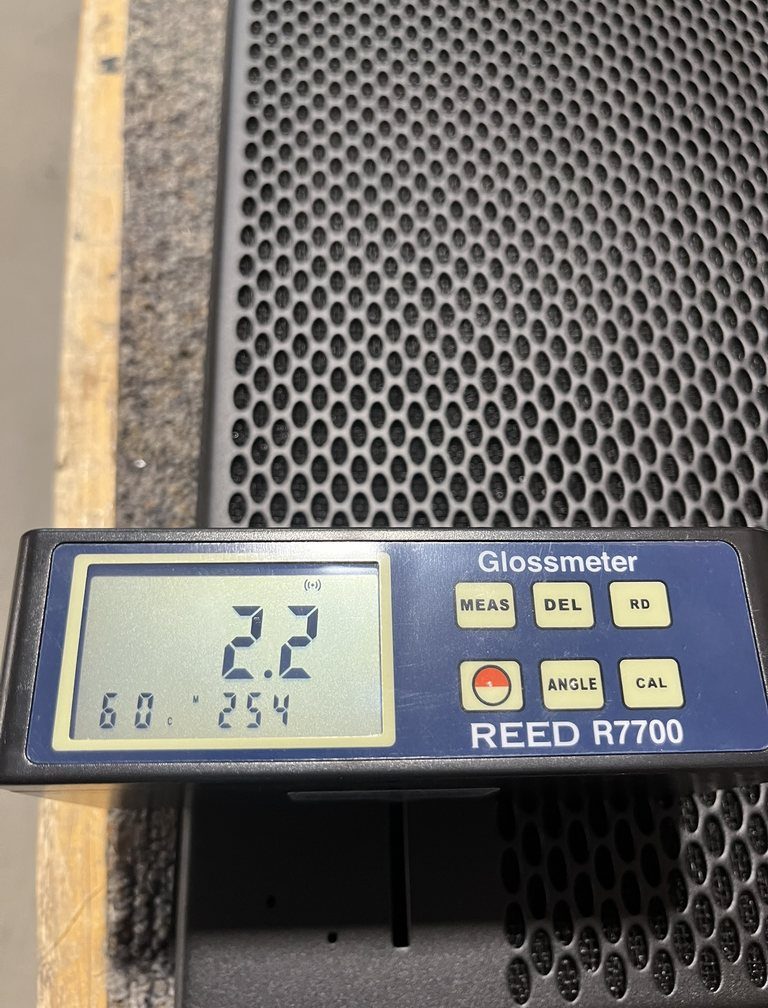

Grille finish
08Test Grille finish
  1. Flared port A 48° flare with an R80 edge smooths the airflow at the amp. It reuses the curved-edge process and tooling from the Tx14.
  2. Rigging points, not a flying frame M10 points carry the install bracket now. A flying frame could bolt to the sides later, the same route as the L-Acoustics SB15m.
  3. Two brackets, not a U The heavier cabinet needed more strength than a U-bracket, so the install kit is a pair. Shackle holes allow chain suspension.
  4. Castors as an option Installs don't need castors, so they're a kit. One standard cabinet, and the cost stays off the main BoM.

03Accessories

A kit for each kind of job

Castors, a soft cover and an install bracket are sold separately, so touring and install customers buy only what they need.

Certification

Fully certified. I carried the Ts15 through the CB Scheme: I gathered all the documentation and made sure the design met every compliance requirement.

Also designed

The packaging, the covers and the brackets. The castors were an added feature.

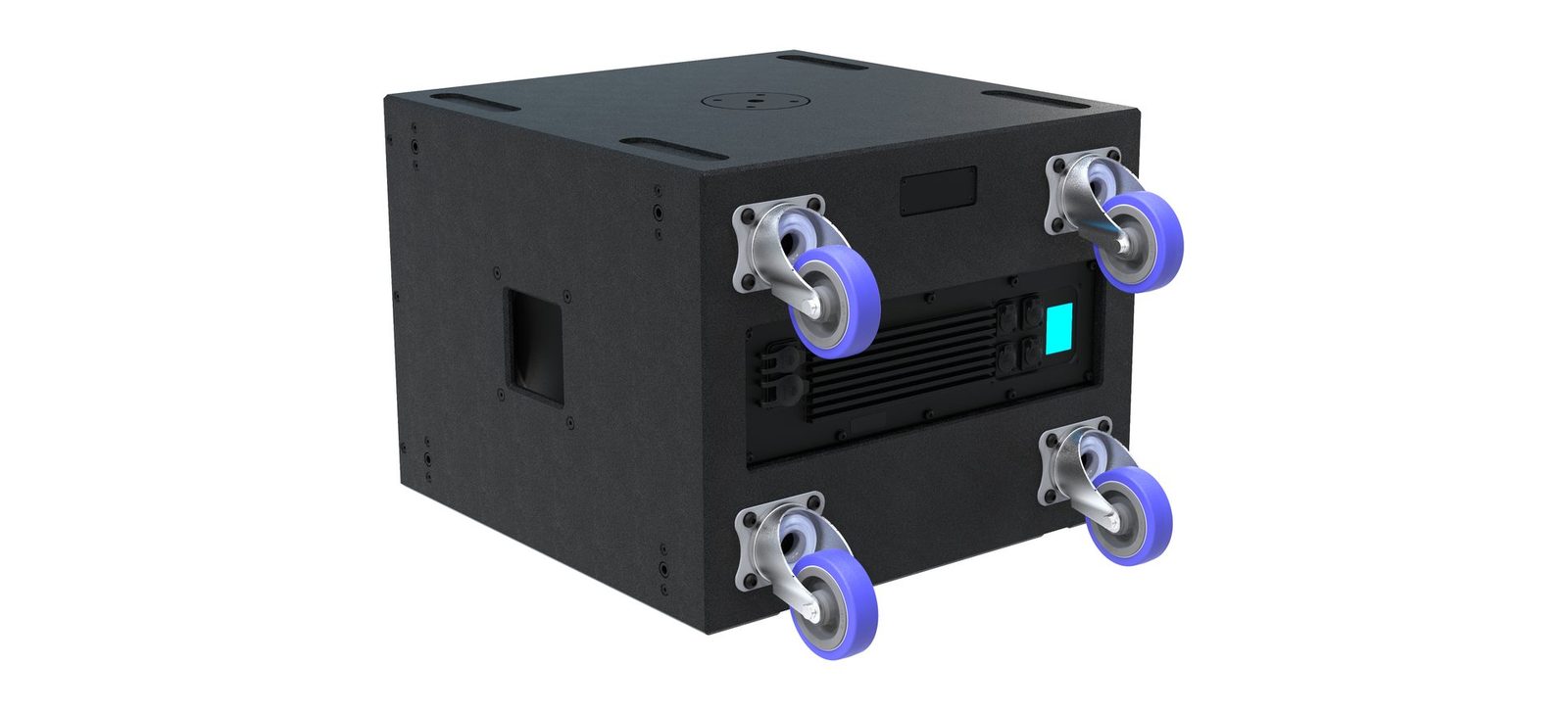

Castor kit: two free, two locking
09Castor kit: two free, two locking

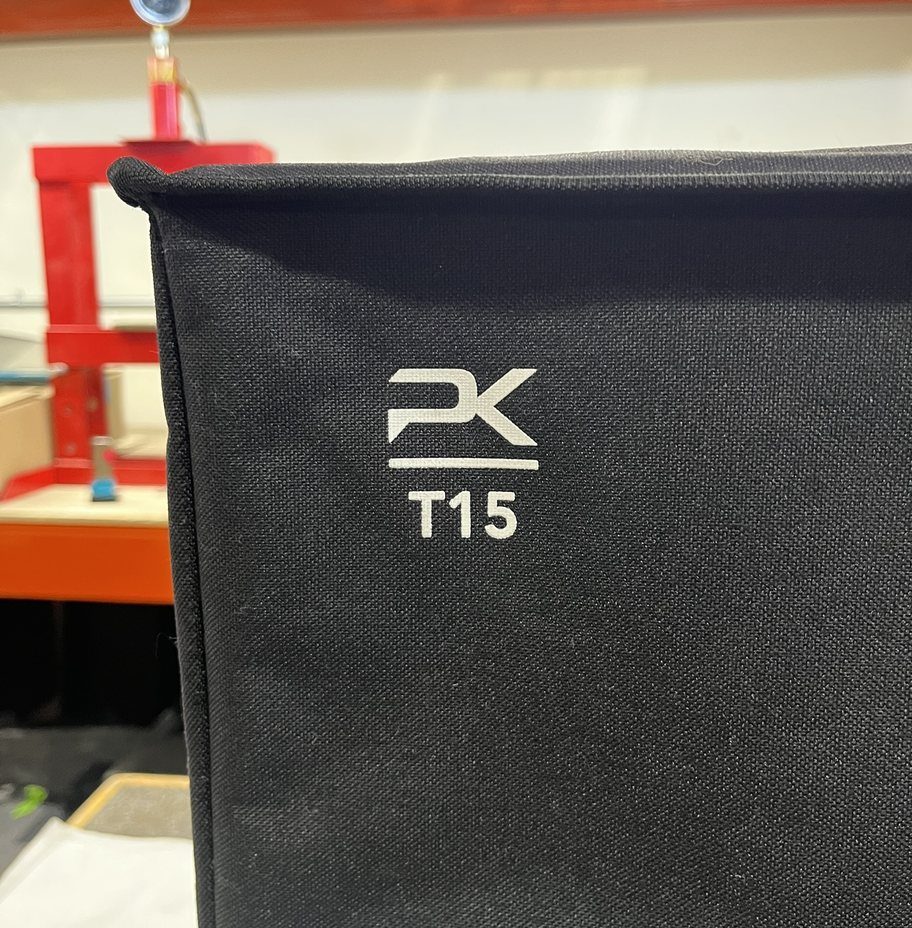

Padded soft cover
10Padded soft cover

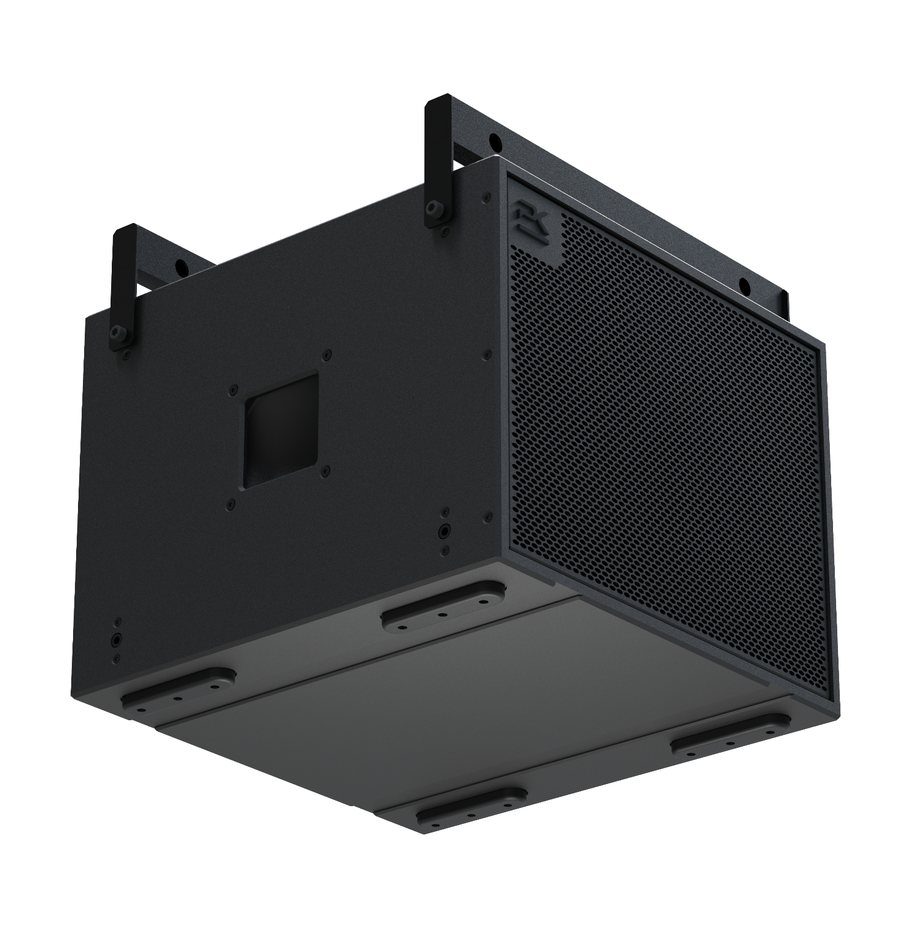

Two-piece install bracket
11Two-piece install bracket
  • 136.5dB max SPL
  • 33–100Hz range
  • 37.8kg
