Bryn Lucas

PK Sound · TX series · 2024

Rotating
logo badge

TX cabinets are installed upright or on their side. One moulded badge, shared by the whole series, turns in 90° steps so the PK logo always reads level.

  • Research
  • Prototype
  • Test
  • DFM
  • Production

Outcome In production: one three-shot moulded part for every TX cabinet. Designed for manufacture and assembly (DFMA), it cuts assembly time and labour cost.

−90°0°+90°
01One badge, any install. It turns 180° in total (±90°) and locks at −90°, 0° and +90°.
Company
PK Sound
Role
Product Designer
Product
Rotating LED logo badge for TX-series loudspeakers

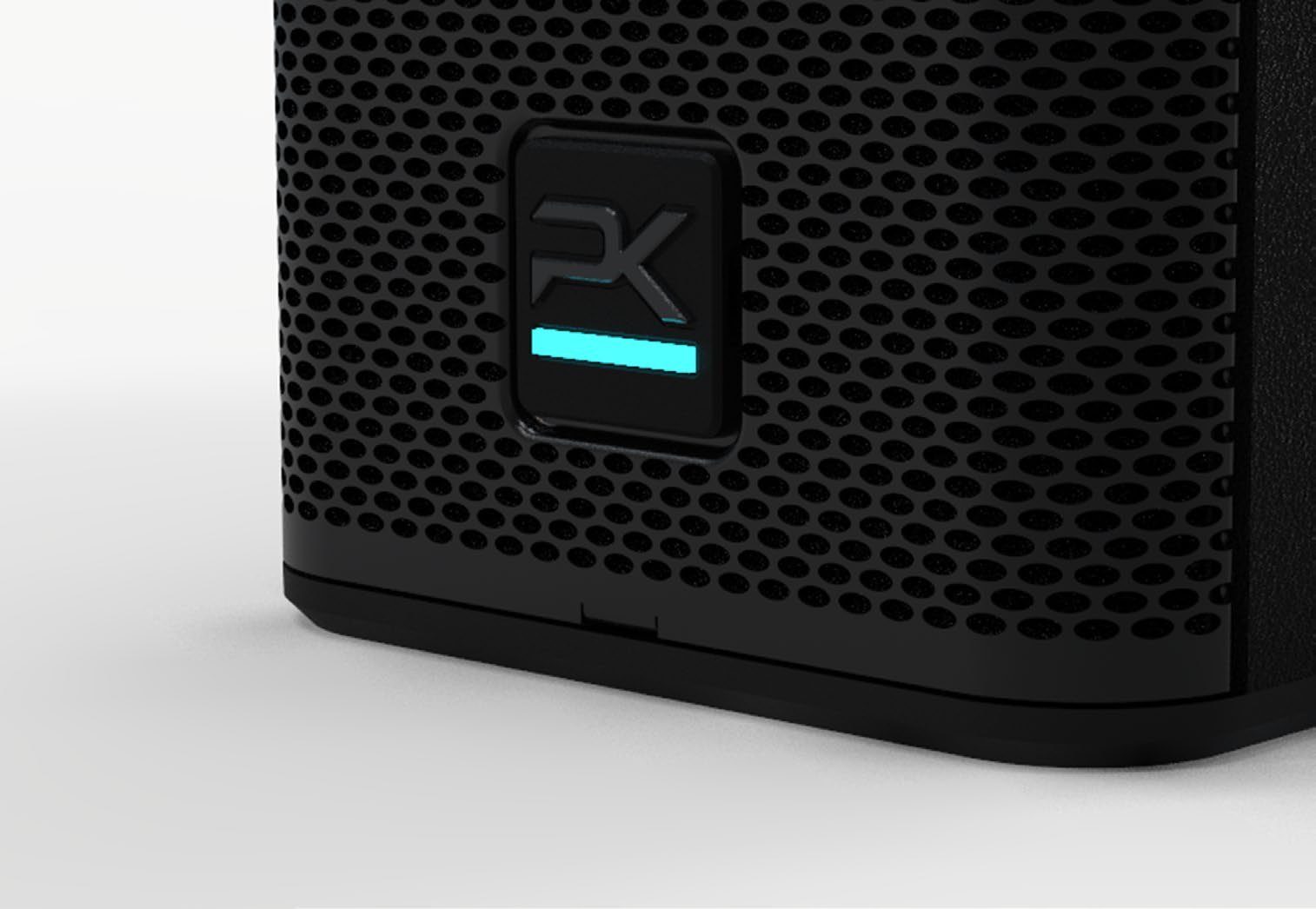

A TX26 lying on its side on a subwoofer, the badge and light bar lit blue
02TX26 on its side: the badge turns so the logo reads level, light bar lit

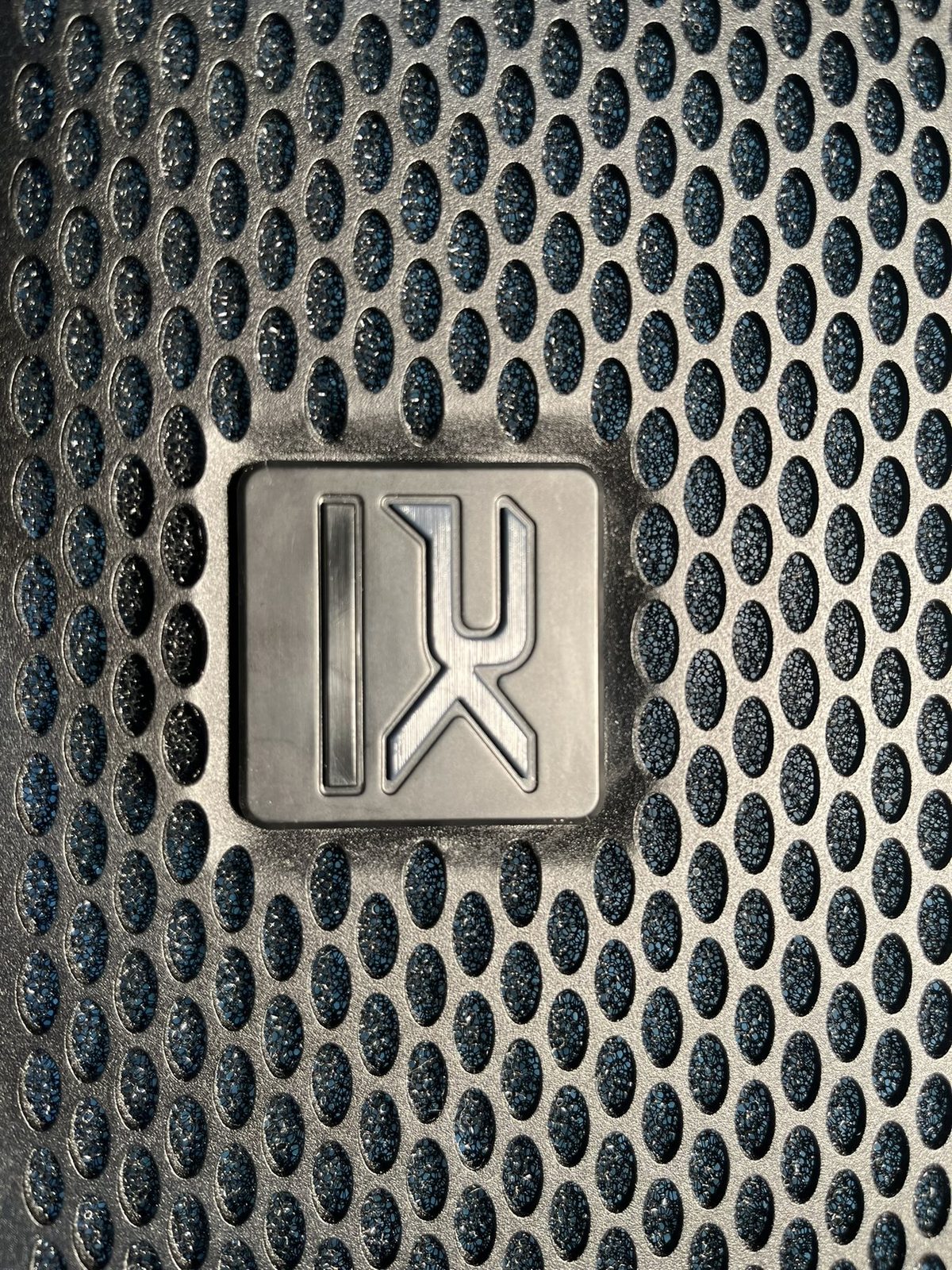

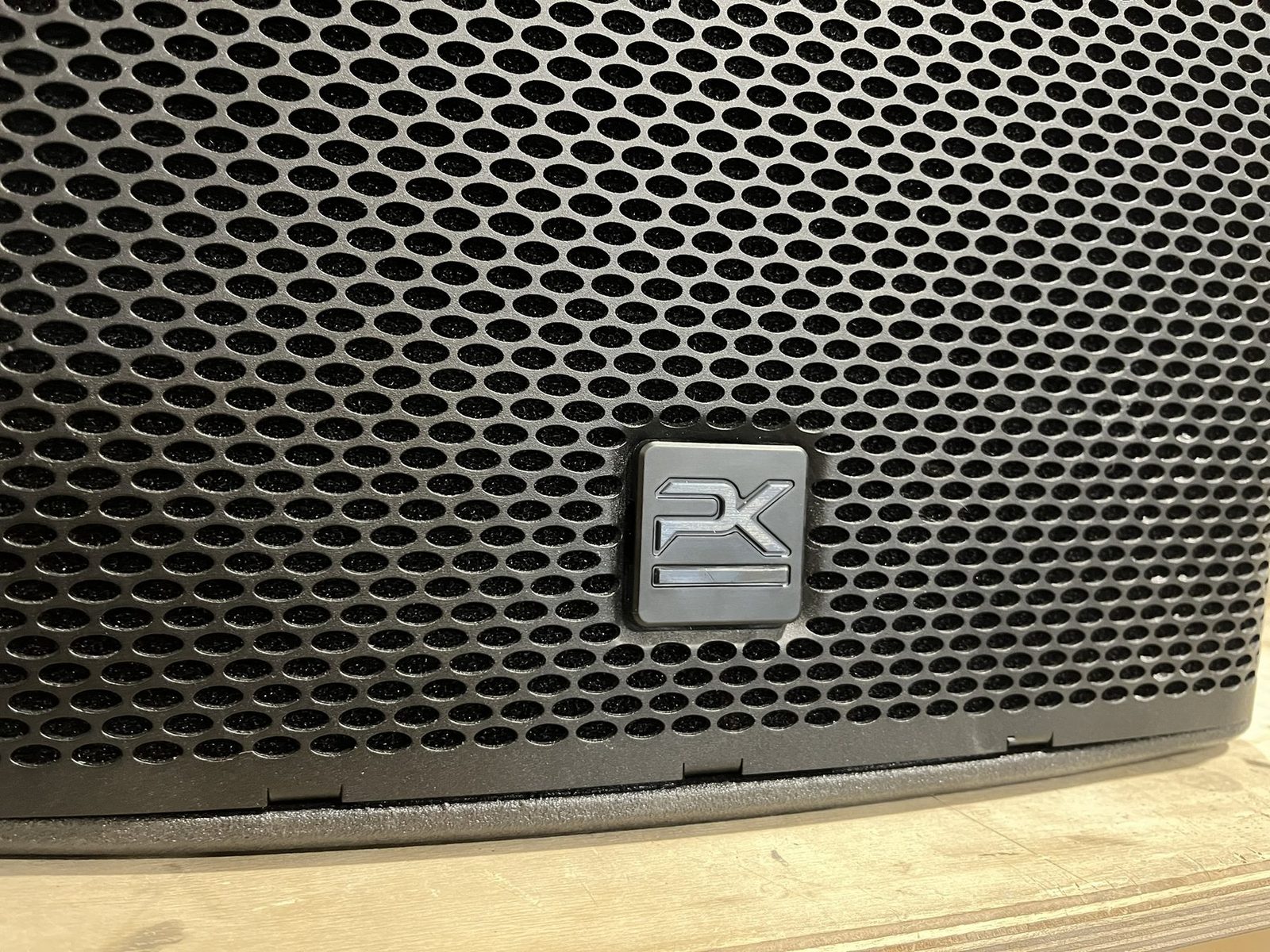

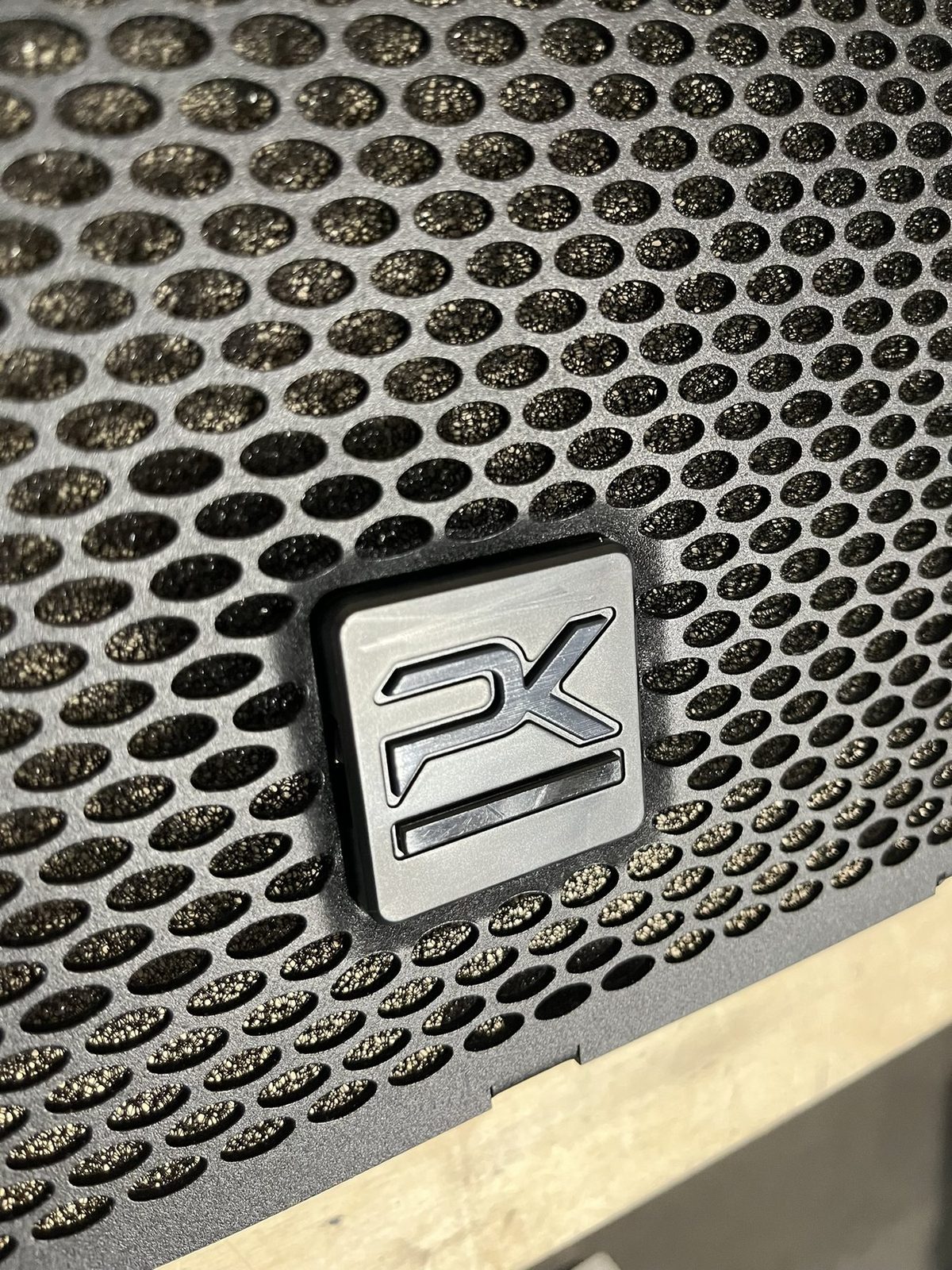

The badge on an upright cabinetA TX26 on its side: the badge turned 90°
03The same badge, upright and on its side

01Concept to test

Brief and
prototypes

The TX range comes in two cabinet sizes, the TX26 and the TX14. Each can be installed upright or on its side, and their grilles differ in thickness. One badge had to fit both, turn to suit the install and stay put.

The brief

  • One part for both cabinets and both grille thicknesses
  • Turns 180° in total (±90°), with no tools
  • Set and forget: held securely, with no vibration while the system plays
  • Resists casual turning or removal
  • Badge and background closely colour-matched to the PK logo

Research

Researched against PK's legacy badges: size, finish and texture.

Twist-lock

Most of the design work went into the twist-lock. Printed frames and carriers were prototyped, tested and refined over several rounds, until the turn, the three lock positions and the fit were right, all before any tooling was cut.

Light bar

Full-RGB LEDs light the bar, so it was tested across many brand-approved colours. Tuning the light diffusion took substantial work, through test samples and the manufacturer's first-article parts.

TX14 and TX26 loudspeakers, each upright and on its side, the lit badge reading level on each
04Brief The TX14 and TX26, each upright and on its side: one badge for all four installs

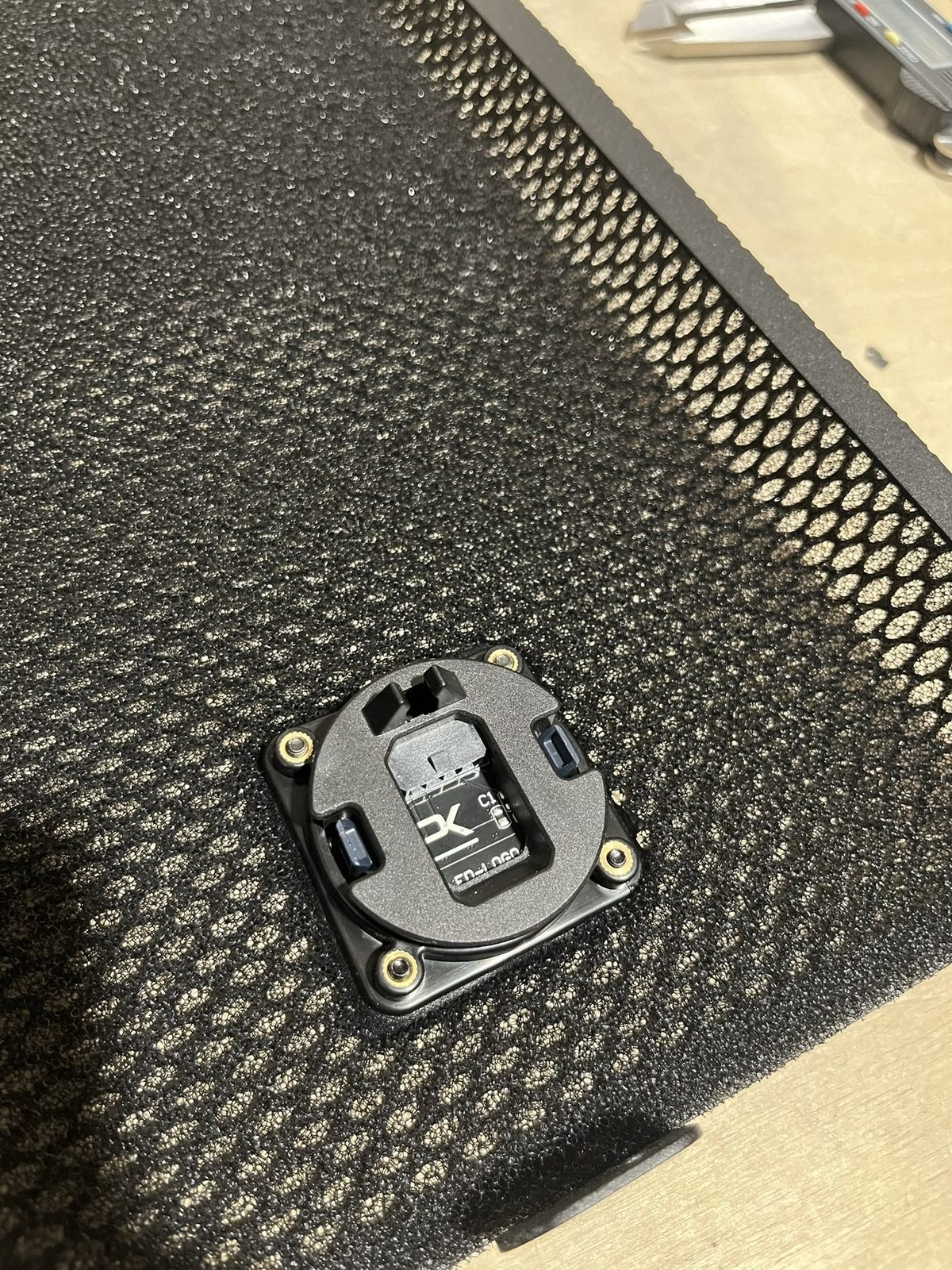

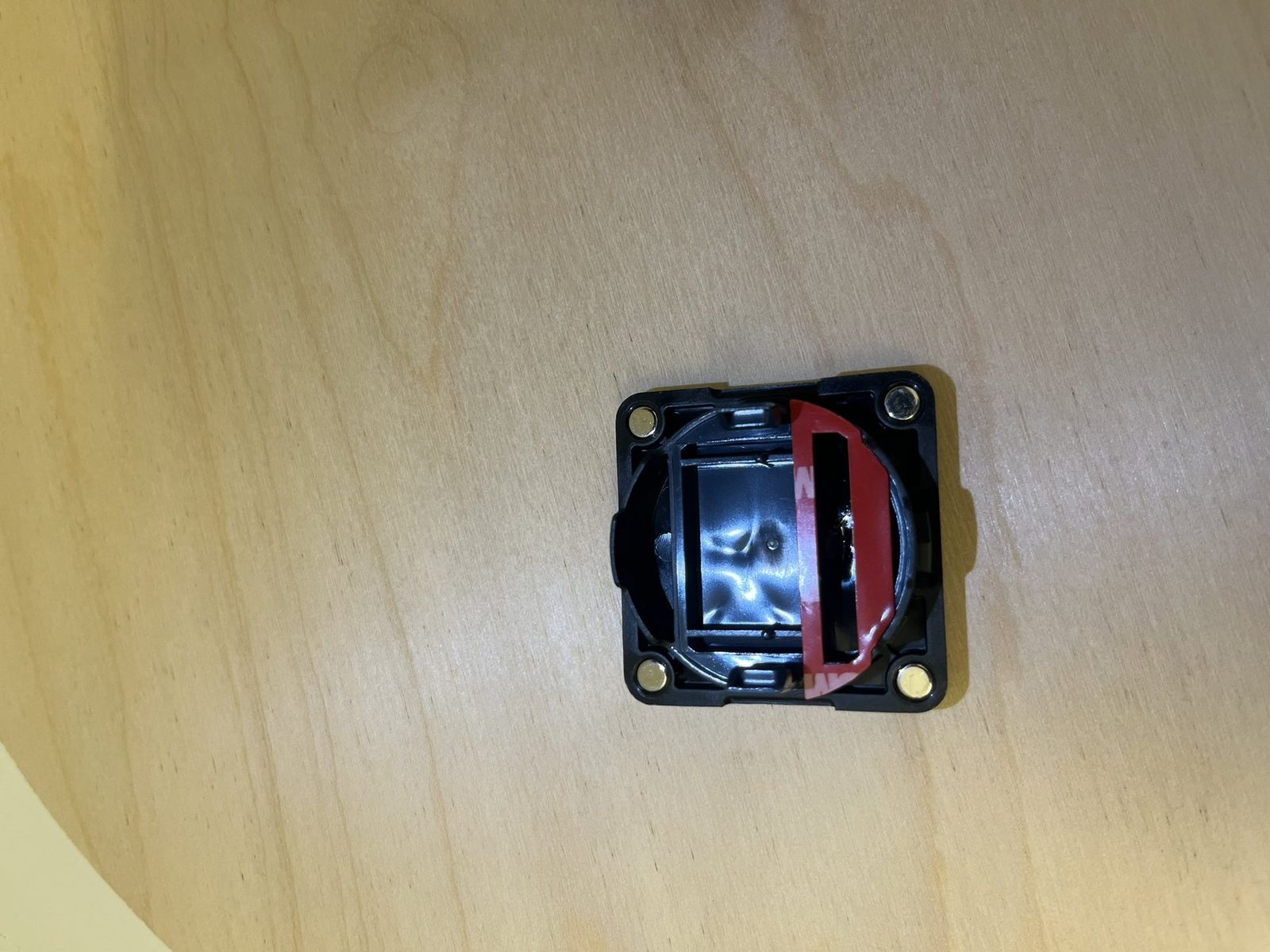

Rotating carrier seated in its frame, wired for the LED
05Prototype Rotating carrier seated in its frame, wired for the LED

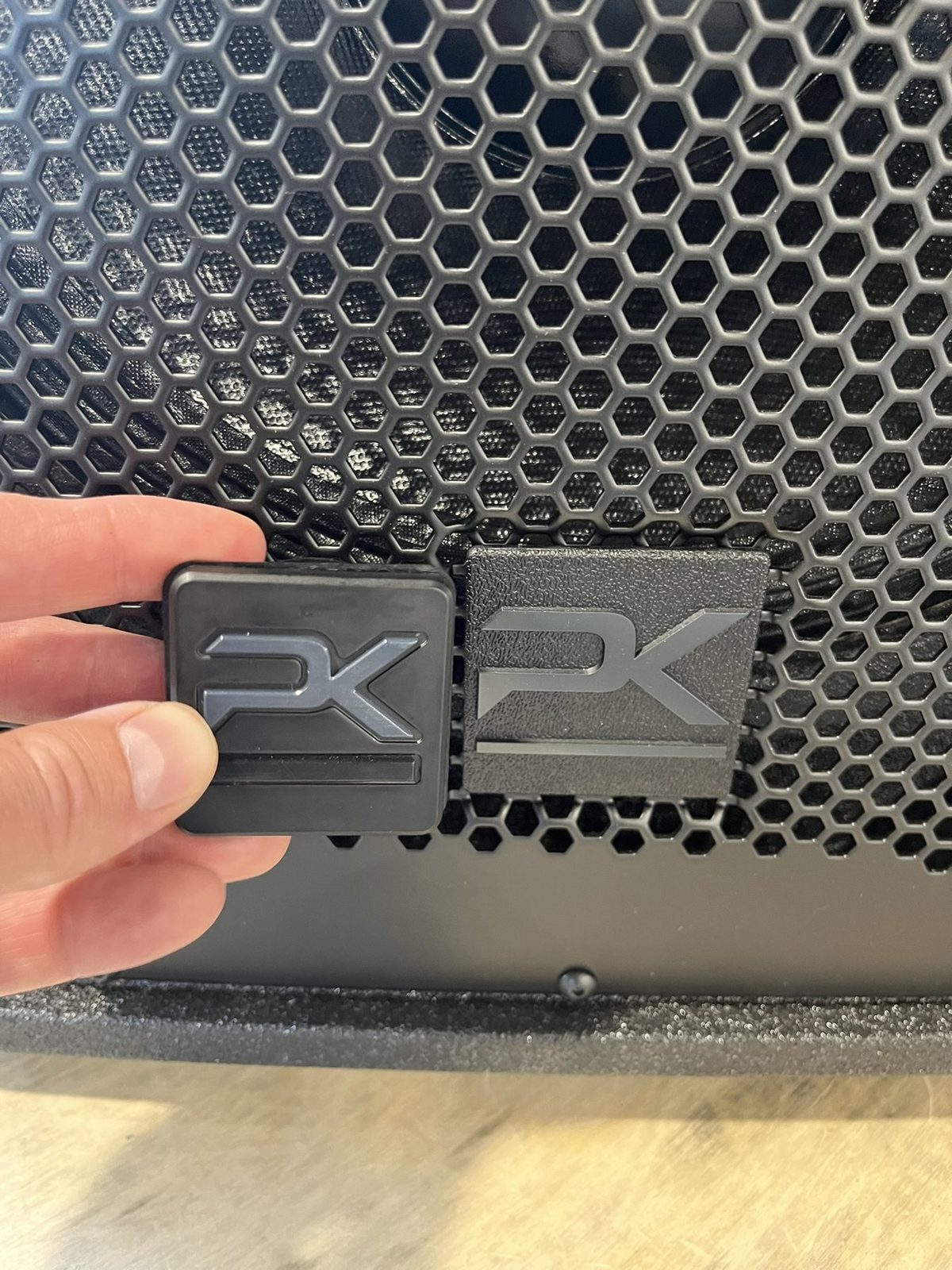

Legacy badge beside the new design: finish, texture and size
06Review Legacy badge beside the new design: finish, texture and size

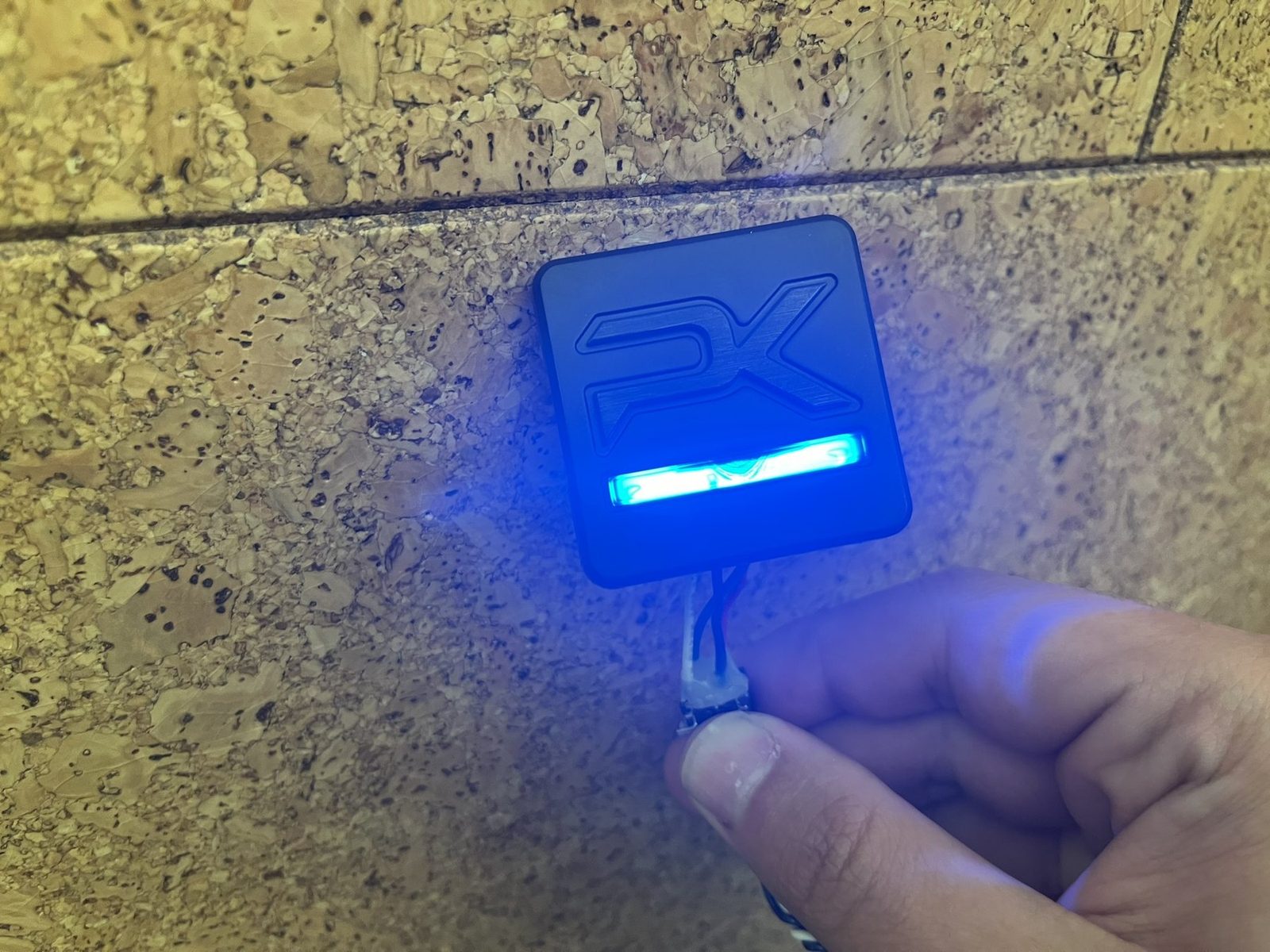

Manufacturer's first-article part: hue and diffusion through the light bar
07First article Manufacturer's first-article part: hue and diffusion through the light bar
Fit check on a production grille
08Test Fit check on a production grille

02Development

Three shots, one part

Instead of assembling a body, a lens and a painted logo, the badge is moulded in three shots. Each shot hides the gate of the one before it, so the visible faces show no marks, even when lit from behind.

  1. Moulded, not assembled Three shots make one finished part: no lens to glue and no paint line, so less assembly time and labour.
  2. Gates out of sight Shots 1 and 2 are gated on faces that shot 3 covers. The drawing rejects any visible gate or ejector mark, even with the LED on.
  3. Even light, exact surfaces The light bar is matched to an approved light sample, and every face has tightly specified surface requirements.
  4. Held fast Four insert-moulded N52 magnets and VHB tape hold the badge, with an engineered removal force of more than 8 lb.
  1. Shot 1 · BodyShot 1 · BodyBlack ABS/PC blend
  2. Shot 2 · Light barShot 2 · Light barPolycarbonate
  3. Shot 3 · Logo and trimShot 3 · Logo and trimABS/PC blend, gun metal (RAL 7021)
Section drawing of the badge showing the three moulded shots interlocking

03Result

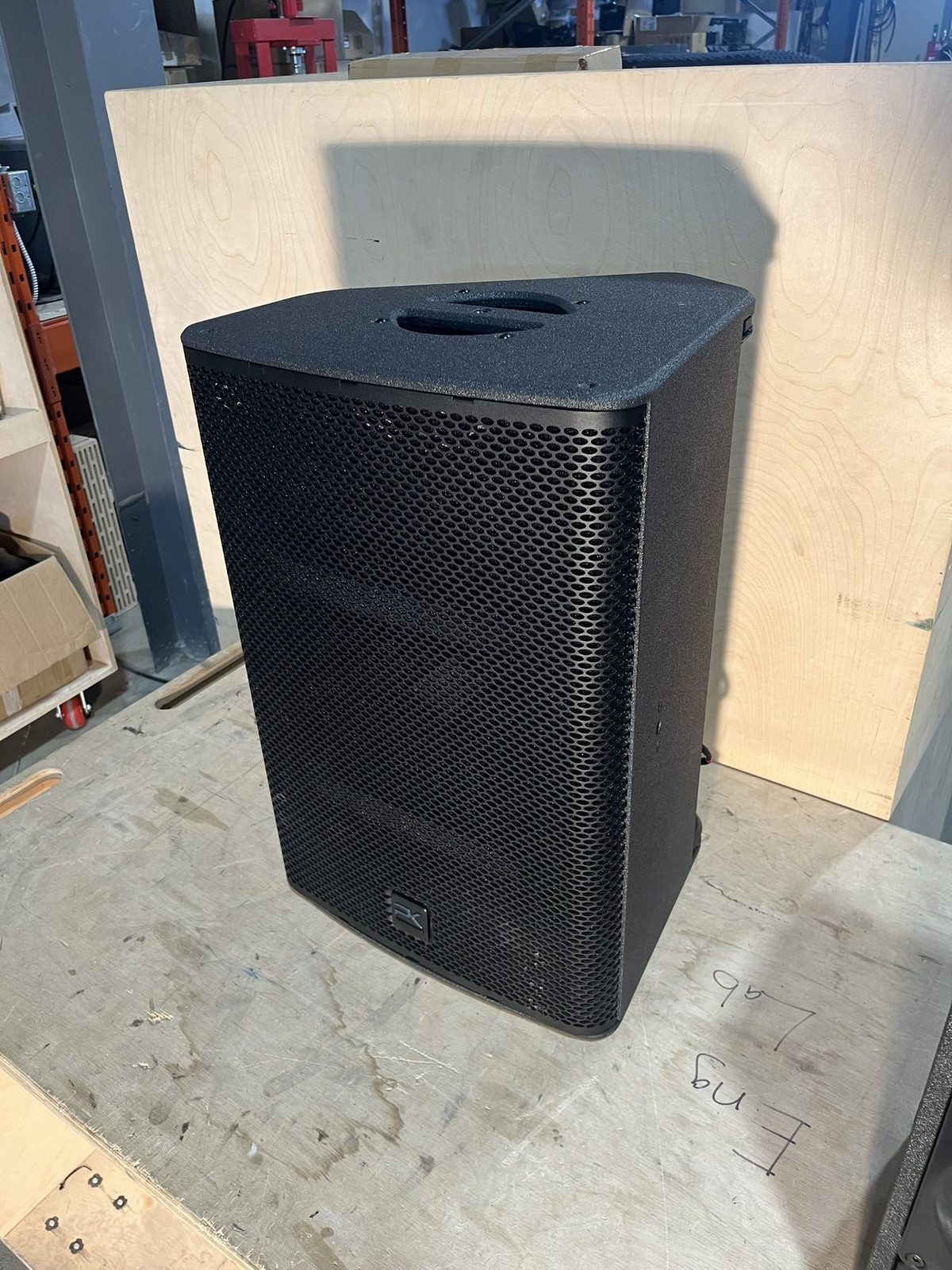

One badge for the whole TX series

Now in production on every TX cabinet. The badge turns to suit any install, so the PK logo always reads level.

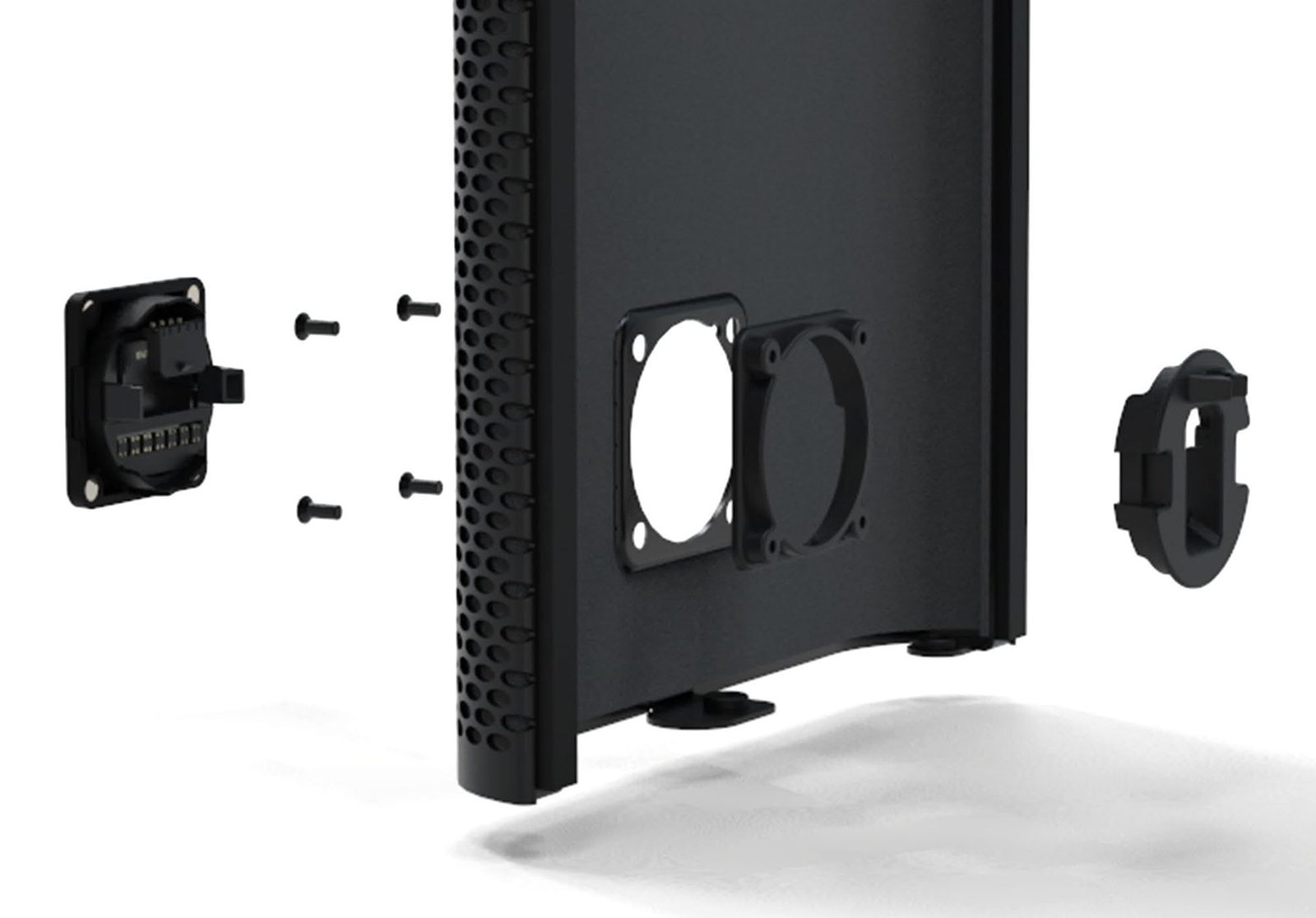

Exploded view: badge, grille, mounting frame and rotating carrier
09Assembly Exploded view: badge, grille, mounting frame and rotating carrier
