Bryn Lucas

Personal project · 2021

Pikler
triangle

A climbing frame for a toddler, from research to CNC to the living room.

Requirements, set before modelling

  • Dimensions suited to children's age groups
  • Adjusts from fully flat to folded for storage, without tools
  • Sturdy construction
  • Colourful
  • Supports gross motor skill development

Tools and processes

SolidWorks · Autodesk PowerMill toolpaths · 3-axis CNC · router, table saw and chop saw · industrial paint booth and spray equipment

Client
Kid
Role
Dad
Product
Pikler climbing triangle
Joint sketches, simplified: the joint bears the load, hardwood dowels lock it
01Concept Joint sketches, simplified: the joint bears the load, hardwood dowels lock it

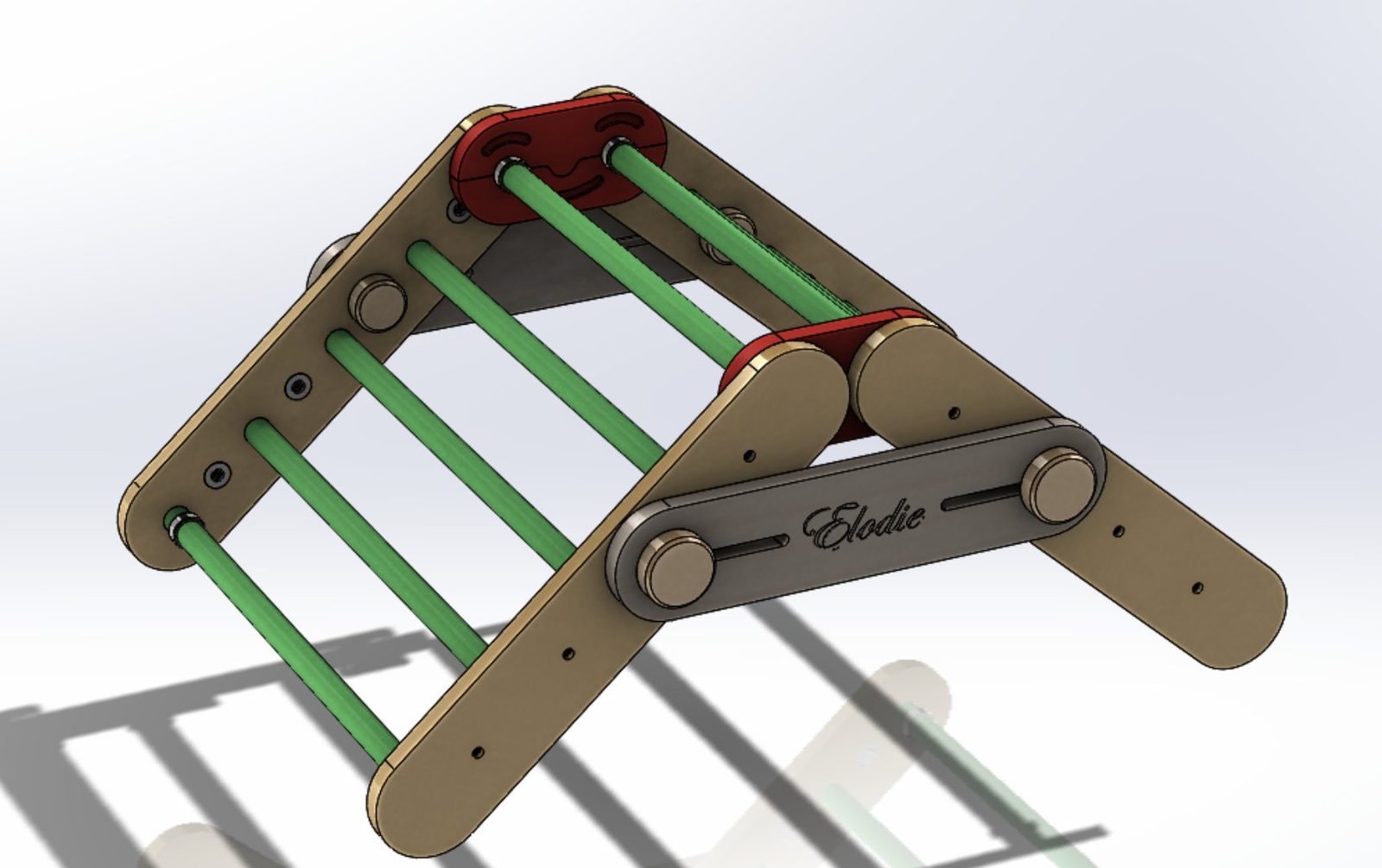

SolidWorks model (screenshot)
02CAD SolidWorks model (screenshot)

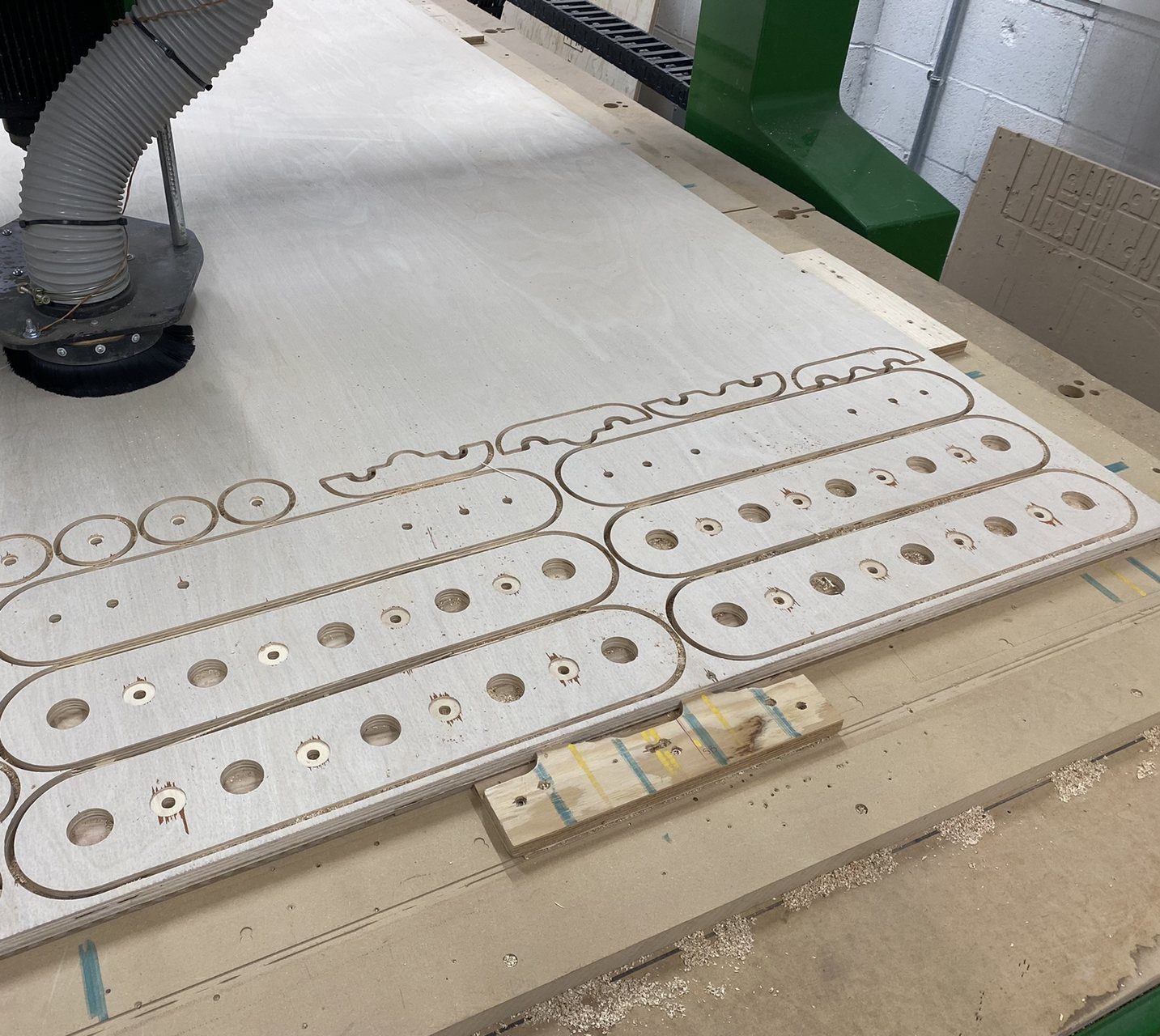

PowerMill toolpaths, cut on a 3-axis CNC
03Toolpath + CNC PowerMill toolpaths, cut on a 3-axis CNC

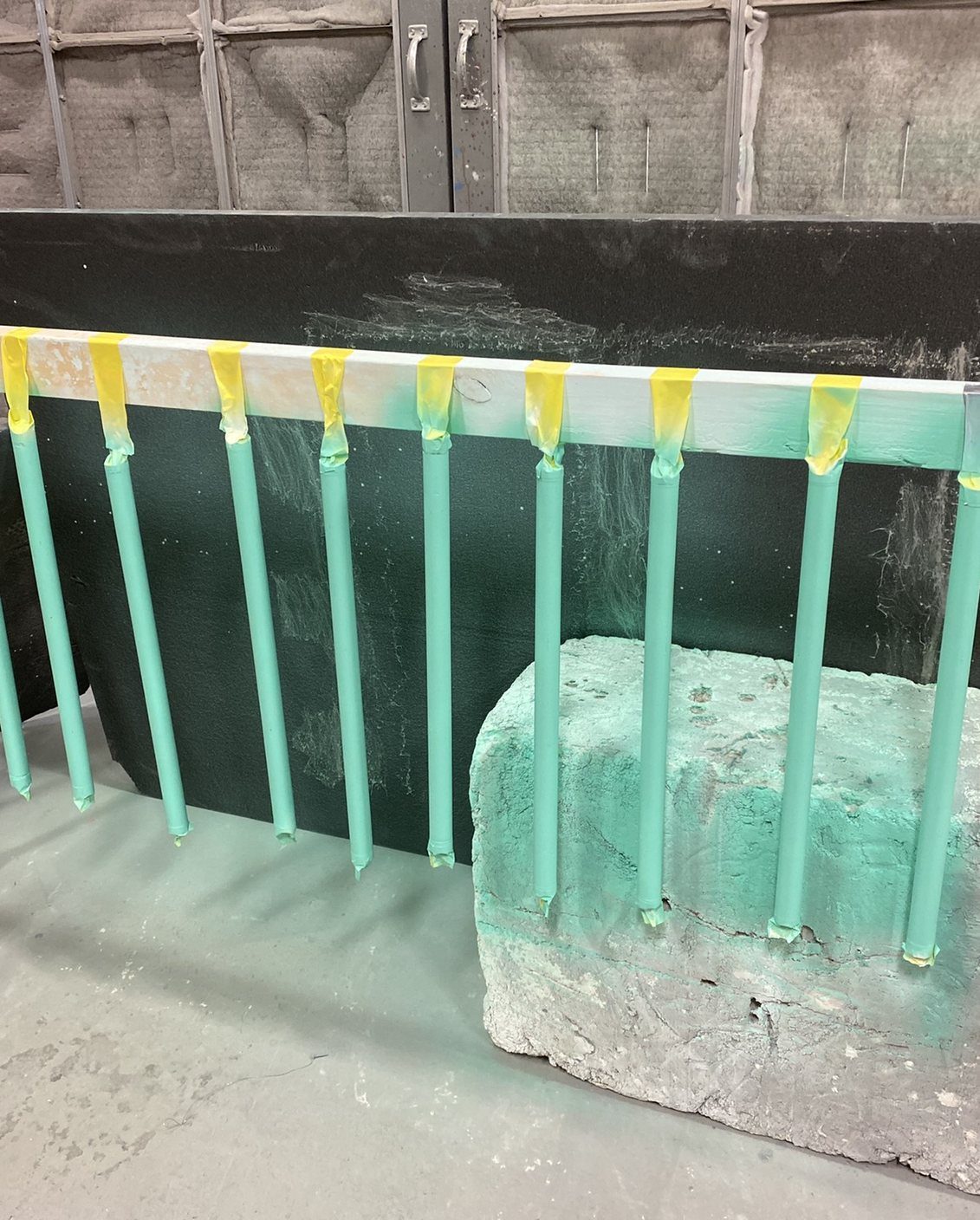

Rungs sprayed in the paint booth
04Finish Rungs sprayed in the paint booth

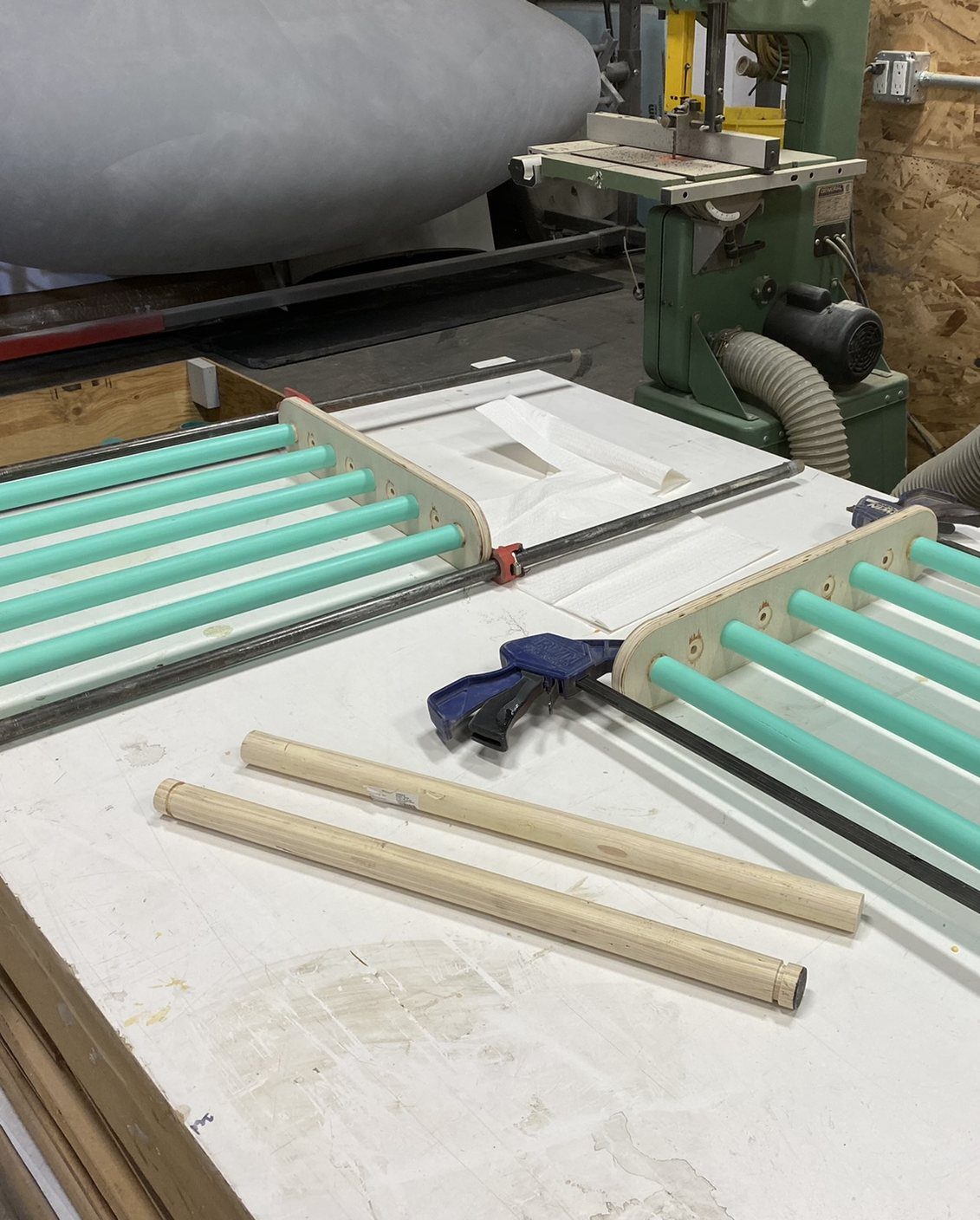

Ladders glued and clamped
05Fabricate Ladders glued and clamped
A toddler, seen from behind, climbing the triangle
06In use First climb
