MH Acoustics · Spherical microphone array

Eigenmike
EM64

A sphere of 64 microphones for capturing sound in 3D. Its form is driven entirely by function.

Outcome In production with MH Acoustics.

The problem

  • Spread 64 capsules evenly over a fixed sphere diameter
  • Meet strict acoustic requirements
  • Stay serviceable, and shed heat from the PCBs

Approach

Master modelling in SolidWorks kept the sphere, the capsule pattern and every internal part in one controlled layout. Printed half-shells tested the capsule wiring and fit.

Client
MH Acoustics
Company
Codetta Product Design
Role
Industrial Designer
Product
Eigenmike EM64 spherical microphone array
Render, composited on a photo of the shock mount
01Final Render, composited on a photo of the shock mount

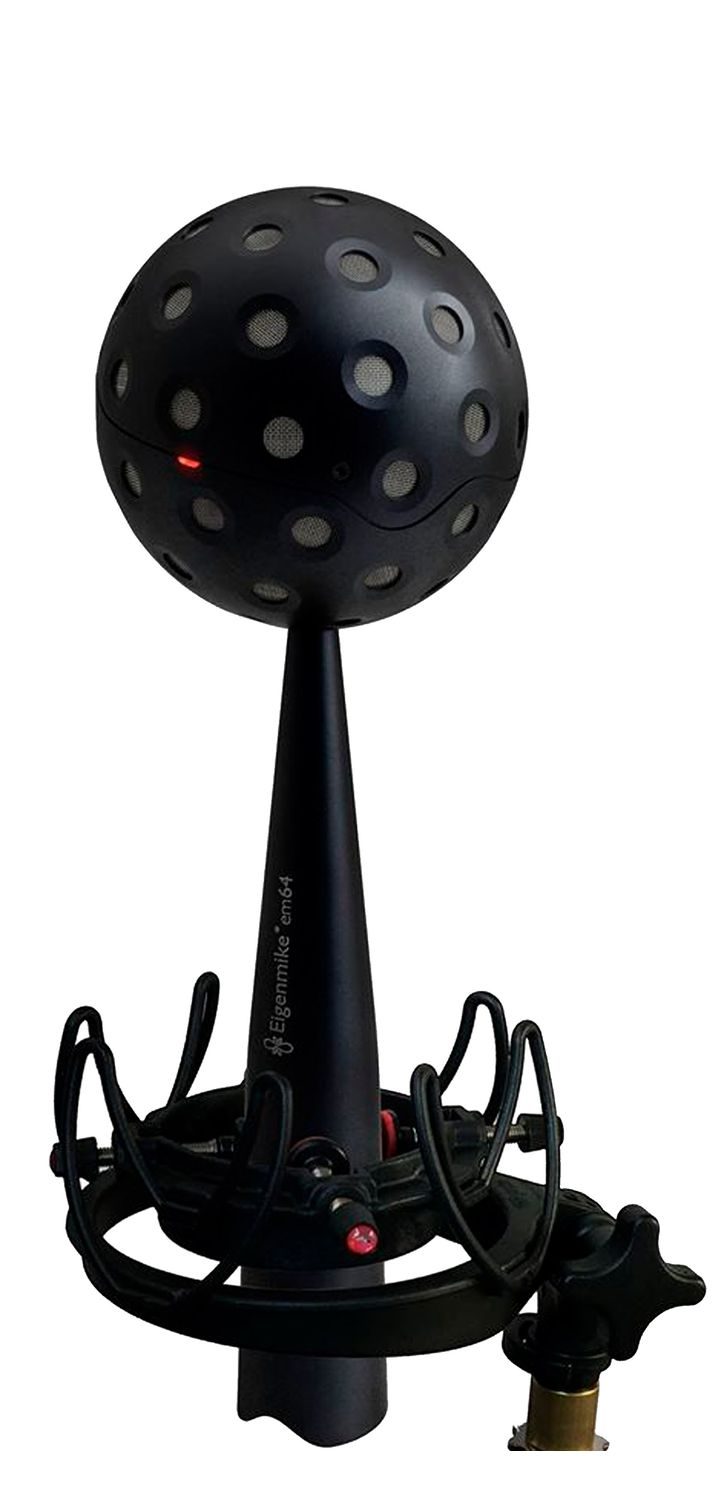

Capsule pattern, neck and shock mount
02Final Capsule pattern, neck and shock mount

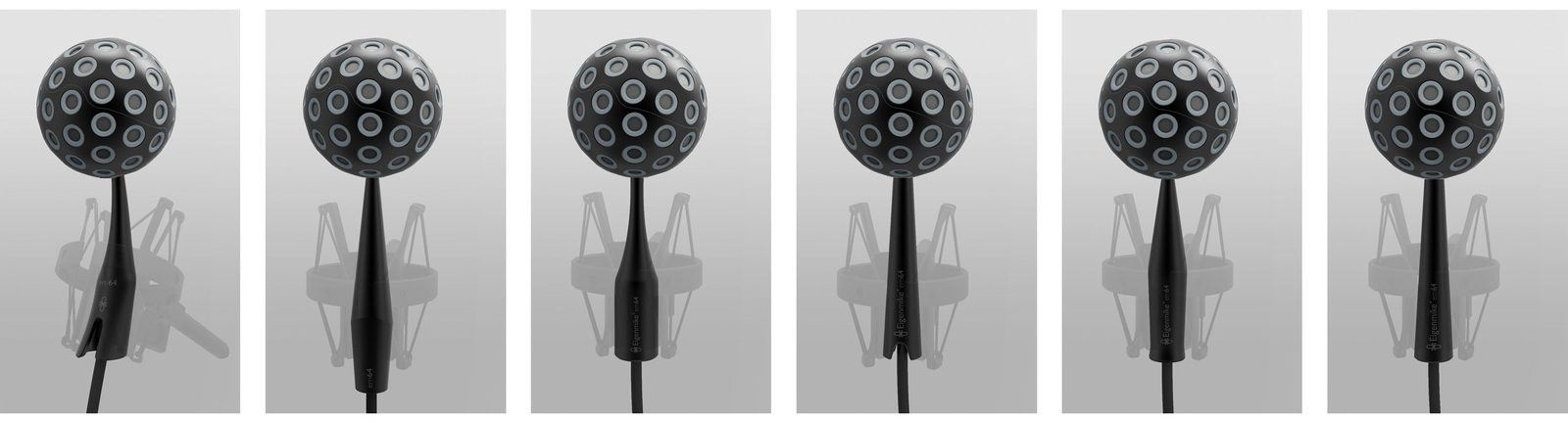

Neck and holder studies
03Concept Neck and holder studies

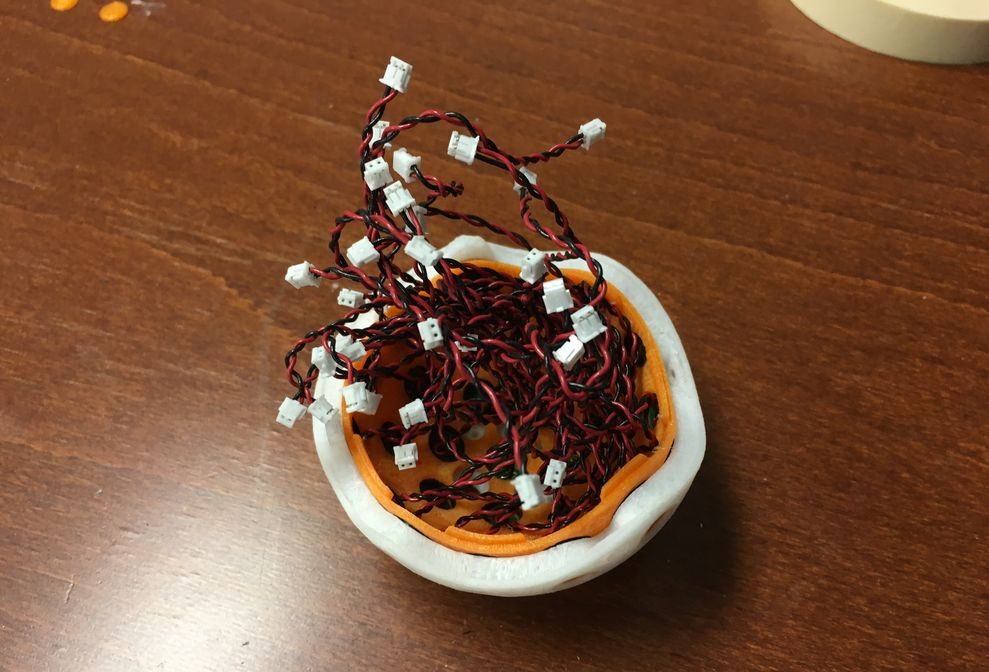

Printed half-shell with the capsule harness
04Prototype Printed half-shell with the capsule harness

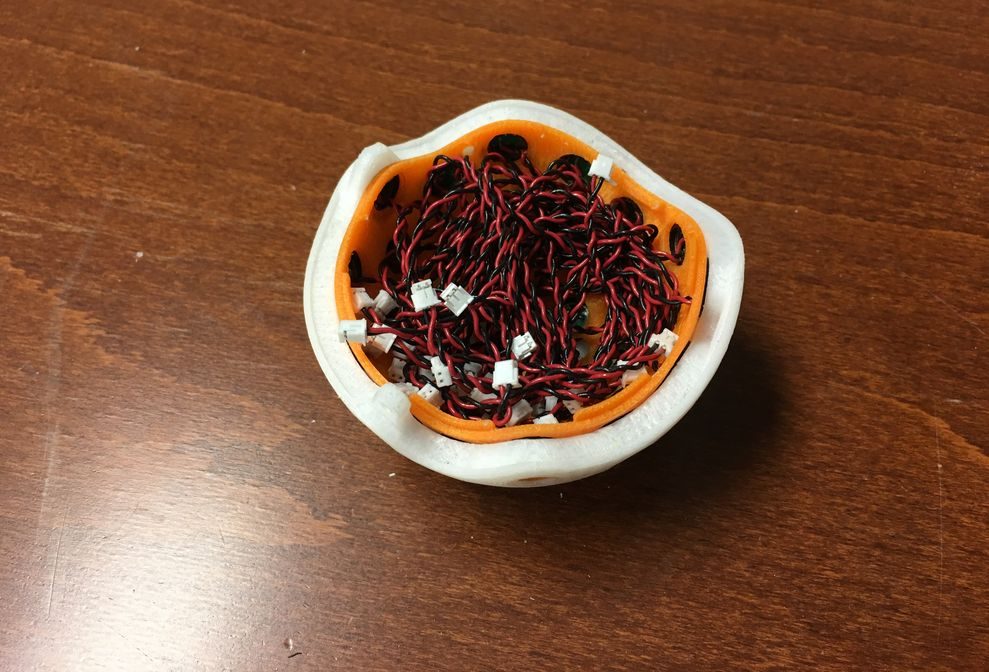

Capsule leads routed out of the shell
05Prototype Capsule leads routed out of the shell
