Bryn Lucas

Eventide · Guitar effects and software

H9, ROSE
and plug-ins

A design language for Eventide's pedals that stands out on a crowded pedalboard, carried through to its plug-ins.

H9 · initiation to retail

My first Codetta project taken from initiation to retail. It replaced an ageing line of pedals. Contrasting case halves and a lit encoder set the new look.

ROSE · one case, many products

A high-end pedal, and the first in a line that shares one case. Anodised top plates change colour and graphics to suit each pedal, while the UI stays the same.

ROSE · my work

  • The central illuminated light pipe
  • Mechanical design
  • Die-cast enclosure parts
  • Product renders
  • Worked with the PCB hardware engineer

Plug-in GUIs

Layout graphics and UI/UX in a hybrid skeuomorphic style, for Eventide's developers to build. Some run with the H9; others stand alone.

Client
Eventide
Company
Codetta Product Design
Role
Industrial Designer
Product
H9 Harmonizer and ROSE pedals, plug-in GUIs

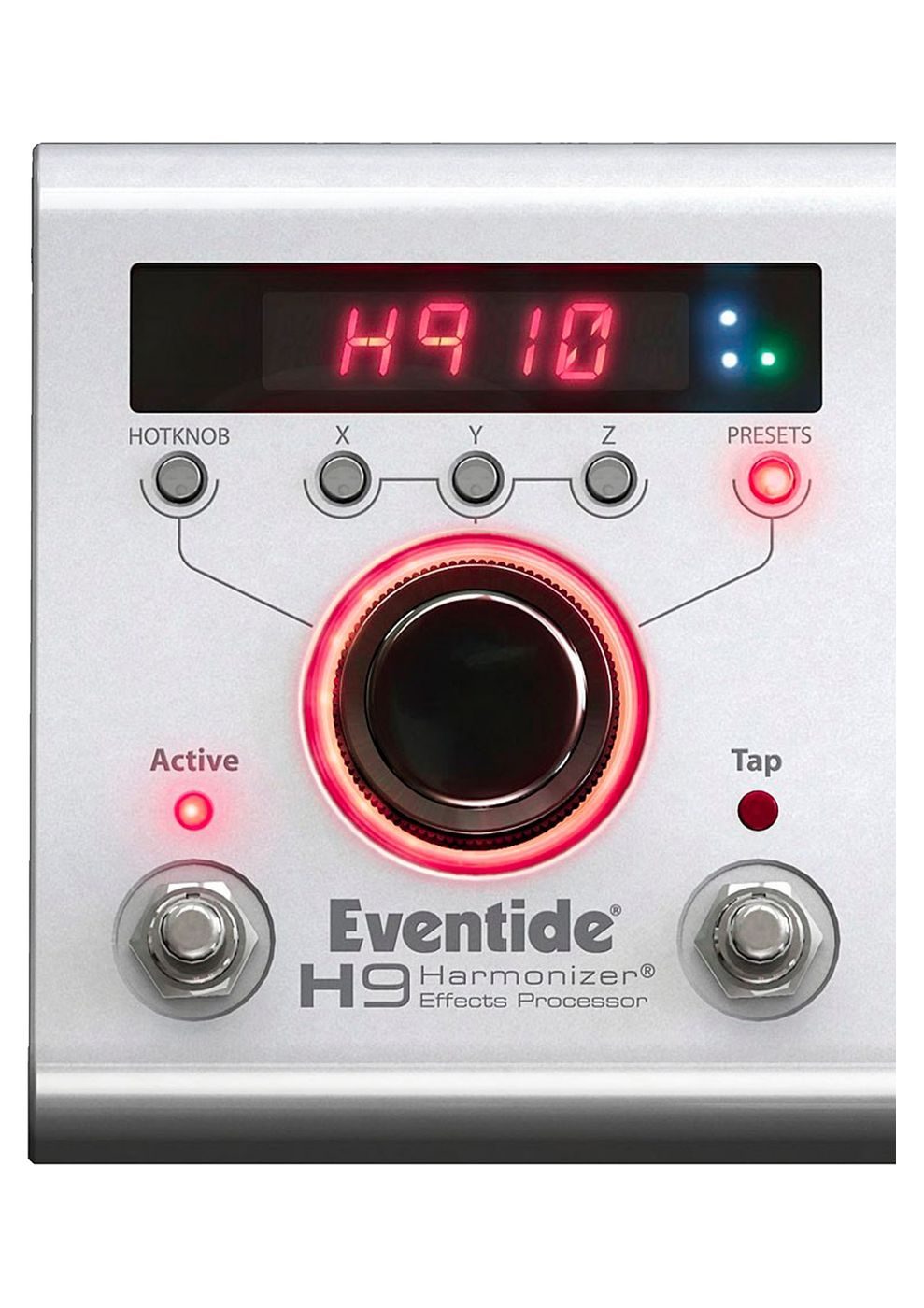

H9: the lit encoder ring sits at the centre of the layout
01Final H9: the lit encoder ring sits at the centre of the layout

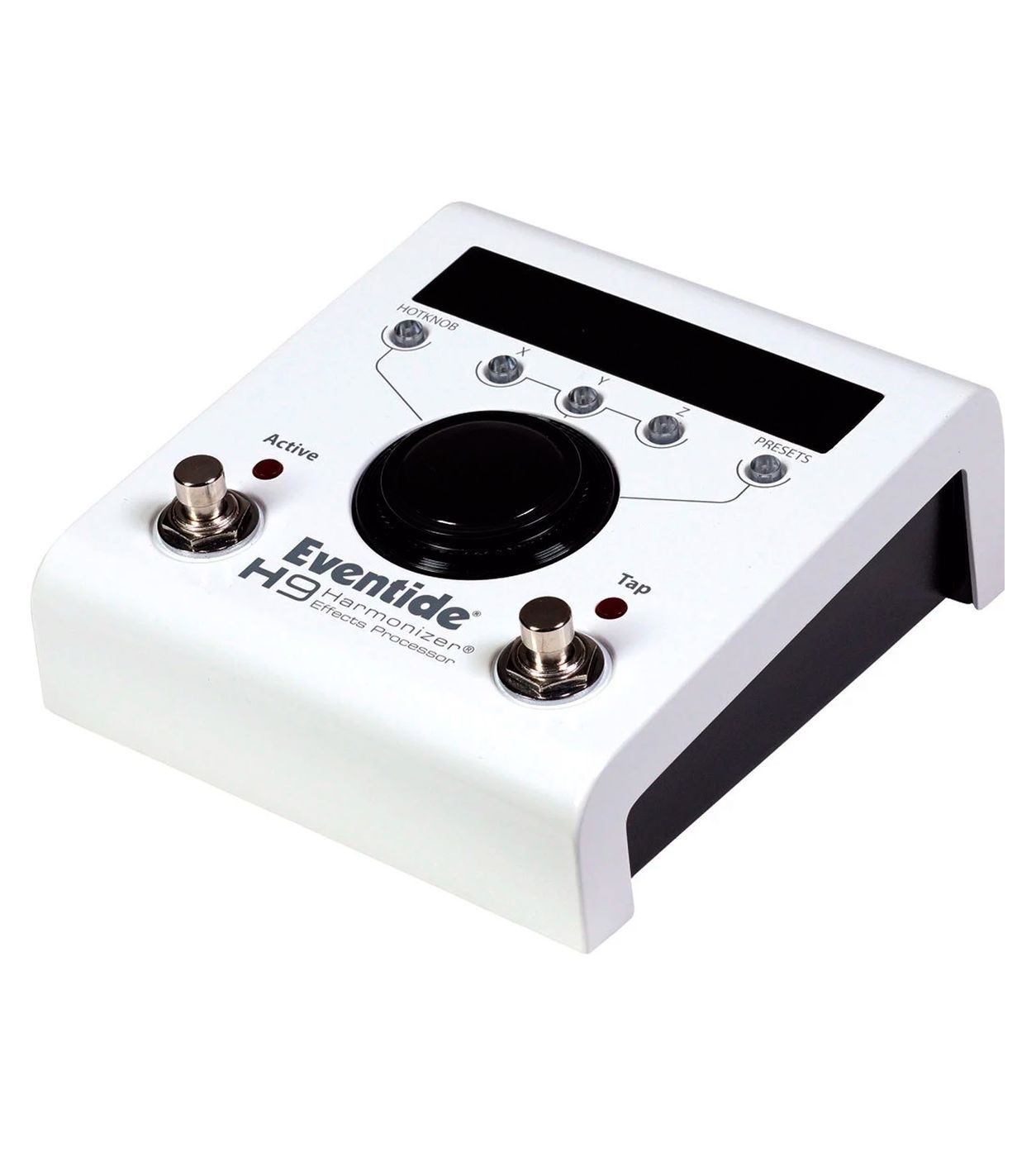

Contrasting case halves: white top, black base
02Final Contrasting case halves: white top, black base

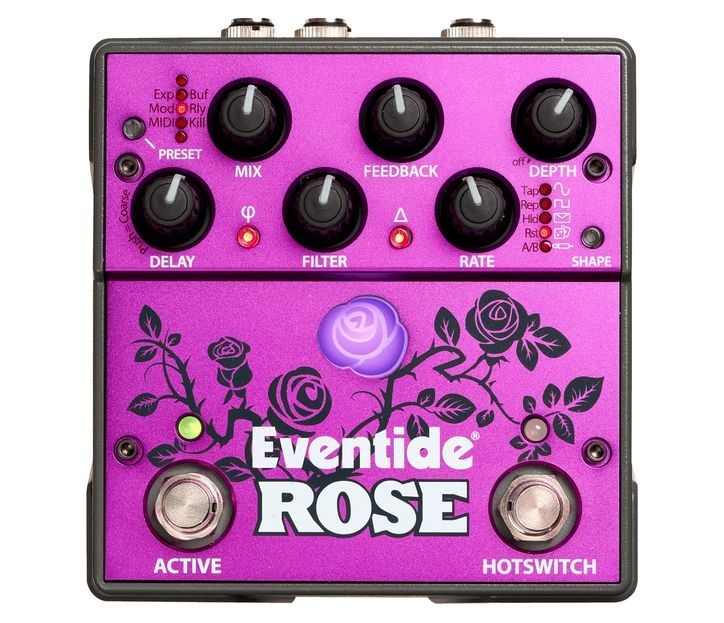

ROSE: anodised top plate
03Platform ROSE: anodised top plate

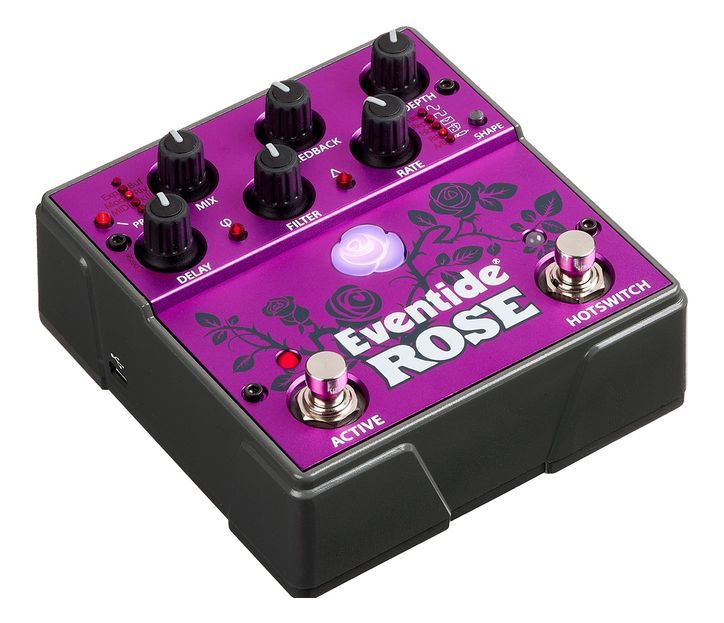

The shared case
04Platform The shared case

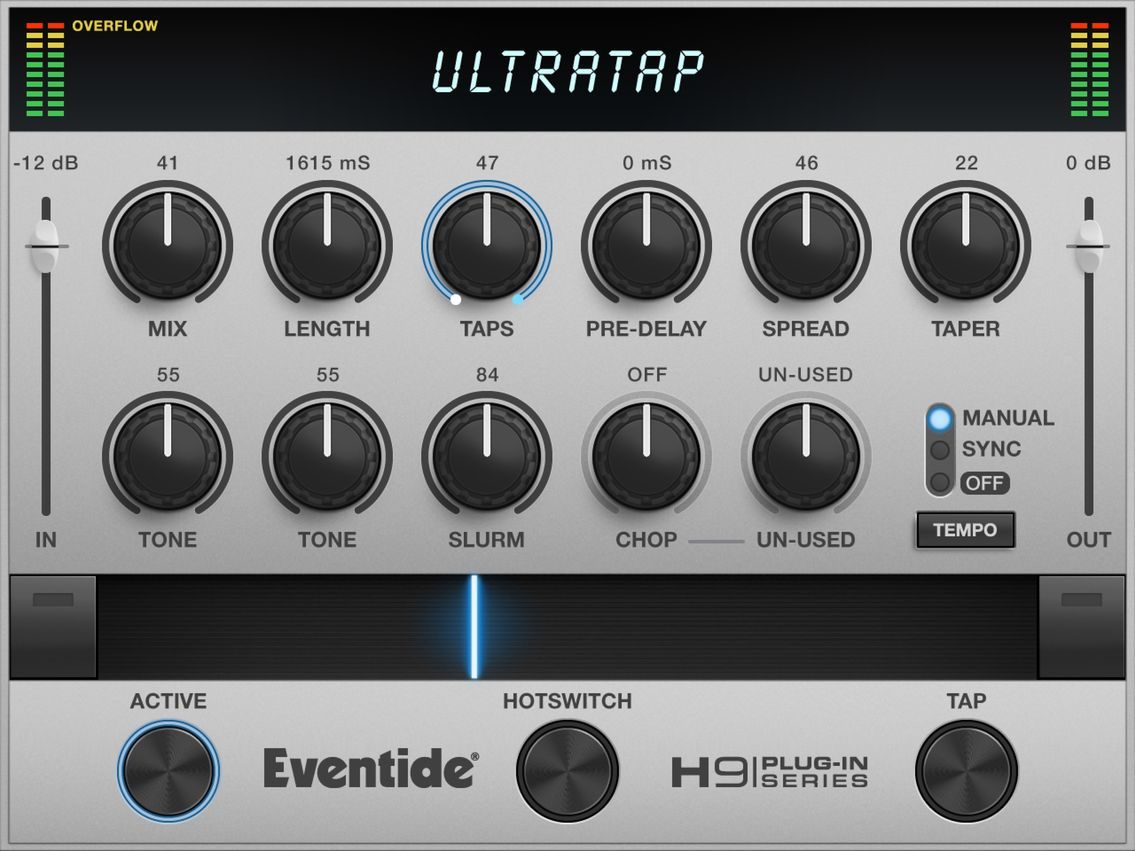

UltraTap, H9 plug-in series
05Plug-in UltraTap, H9 plug-in series

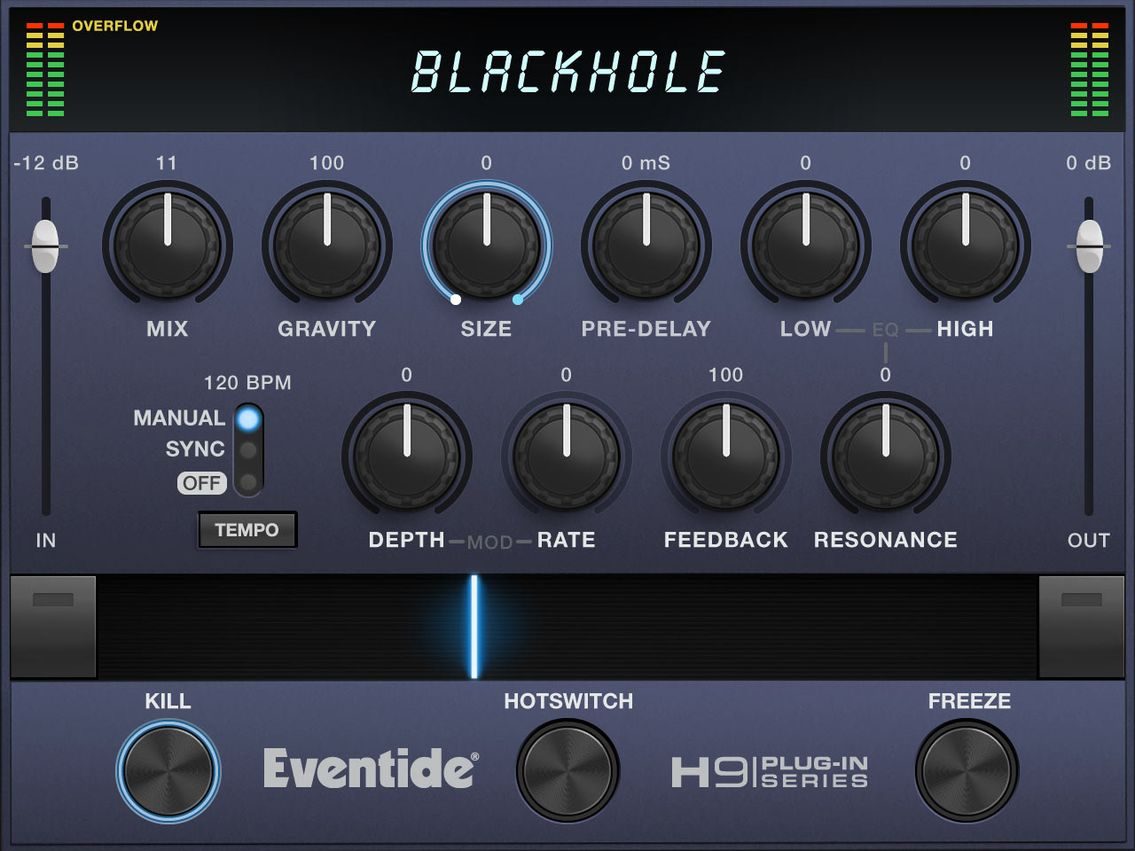

Blackhole: the same layout in a dark theme
06Plug-in Blackhole: the same layout in a dark theme

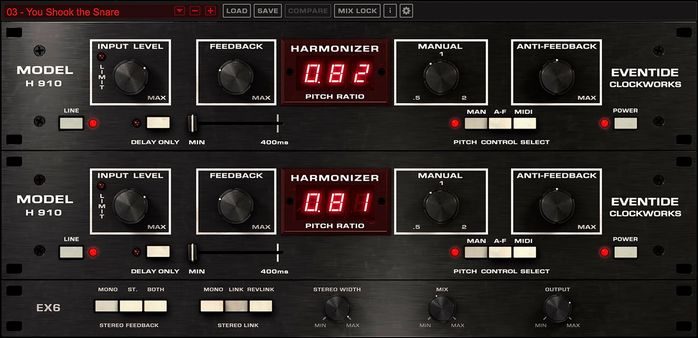

H910 Harmonizer reissue
07Plug-in H910 Harmonizer reissue

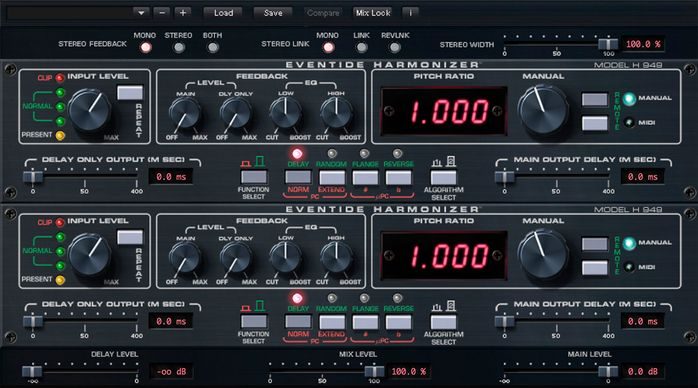

H949 Harmonizer reissue
08Plug-in H949 Harmonizer reissue
