EHX 95000
looper

The successor to the 45000 multi-track looper, with bold graphics that recall the original.

Concepts

I explored and developed graphic layouts alongside design-for-manufacture options. Each concept paired a process for the top and base with its own graphic style, and they were presented to the client to compare cost across manufacturing processes.

My work

  • Graphics and UI layout
  • Enclosure and mechanical design
  • Renders
  • Prototyping and 3D printing
  • Worked with the hardware and PCB engineers to align the design
  • Some project management
Client
Electro-Harmonix
Company
Codetta Product Design
Role
Industrial Designer
Product
Multi-track looper pedal

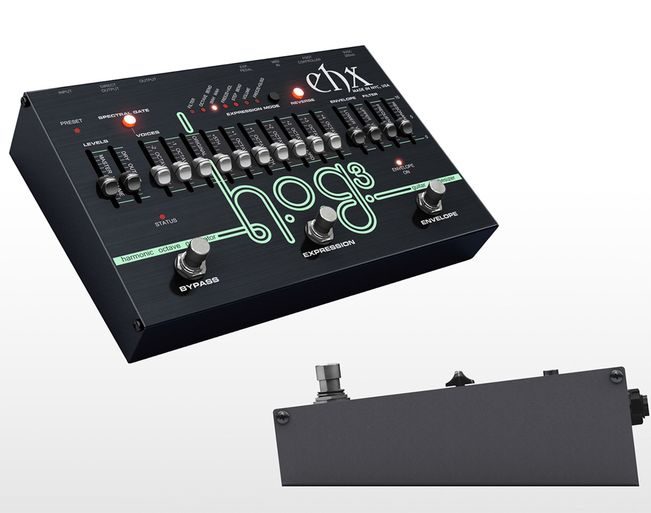

Die-cast top, sheet-metal base
01Concept Die-cast top, sheet-metal base

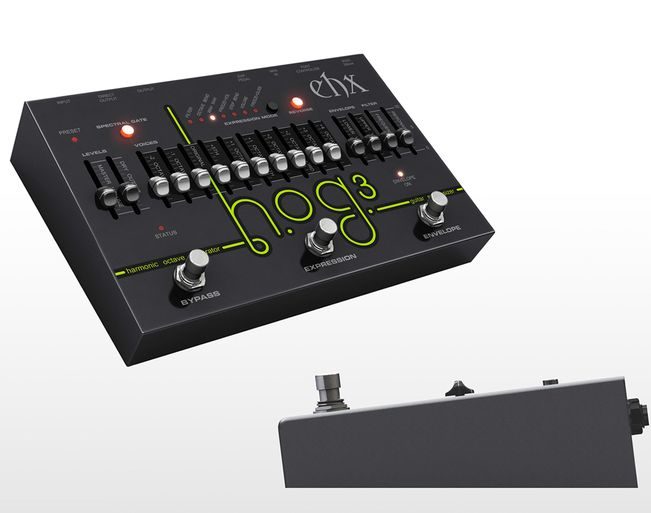

All sheet metal
02Concept All sheet metal

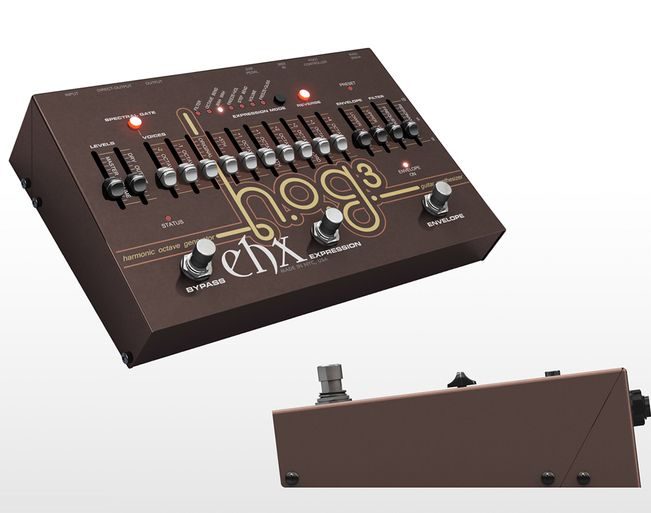

Brushed extrusion top
03Concept Brushed extrusion top

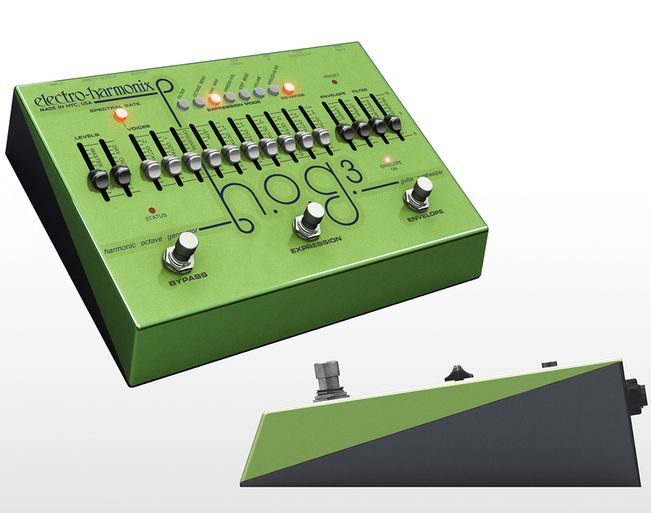

All die-cast
04Concept All die-cast

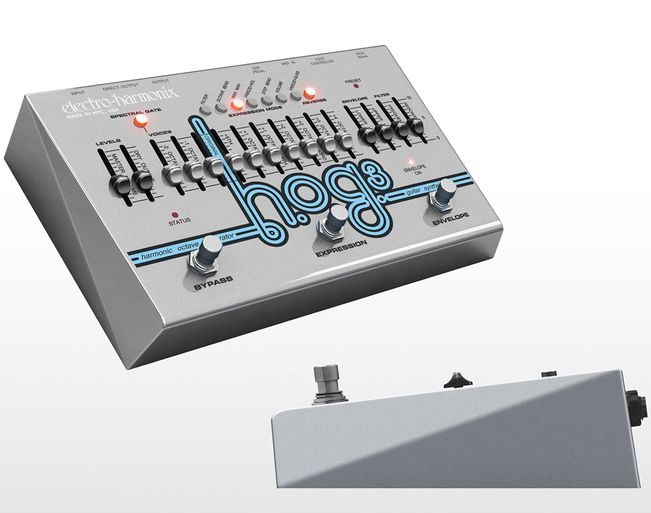

Die-cast top, sheet-metal base
05Concept Die-cast top, sheet-metal base

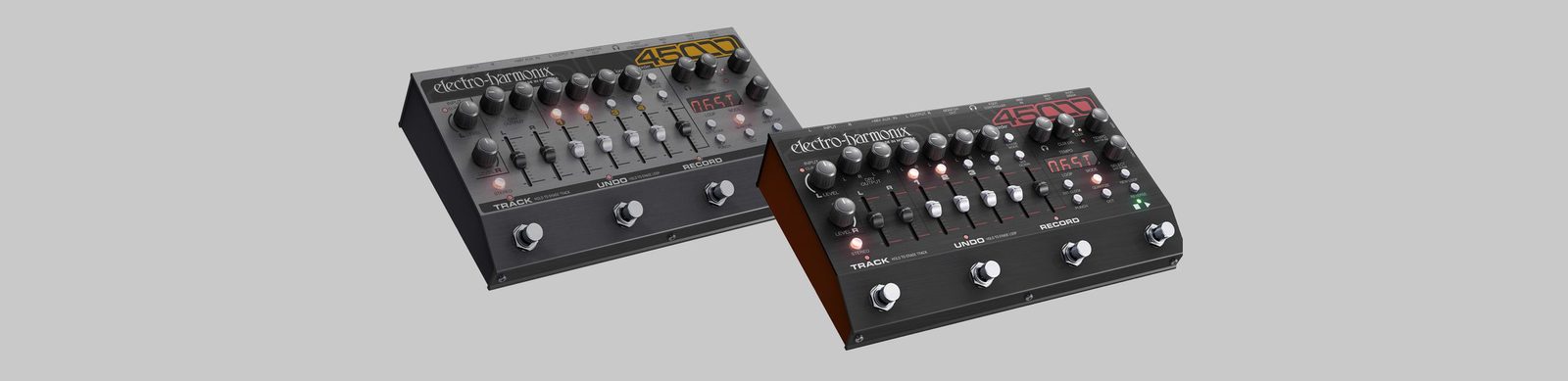

Layout and colour
06Refinement Layout and colour

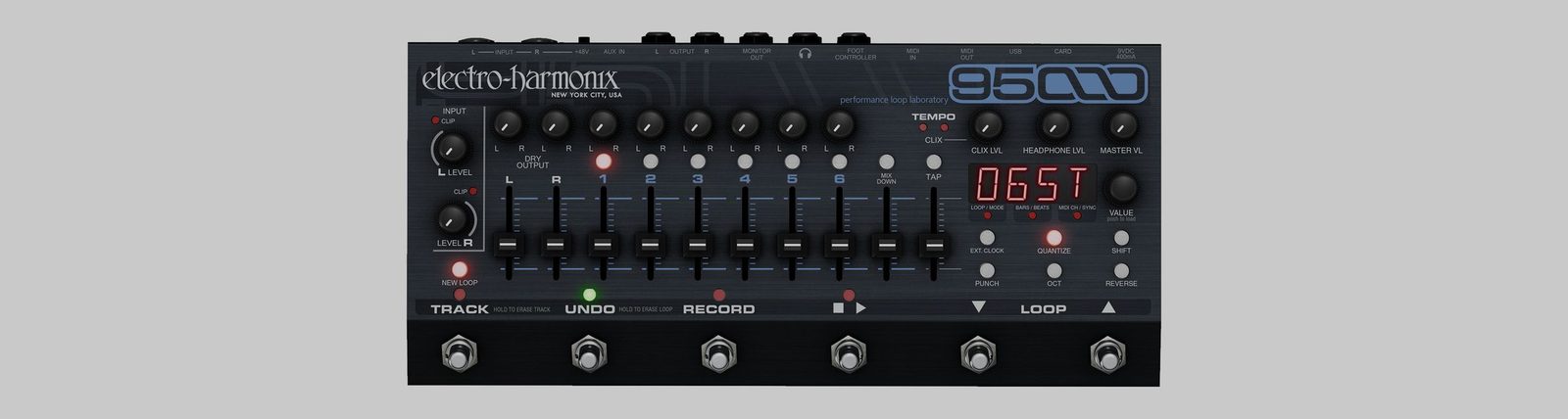

Production-ready render: the intended design and finish at manufacturing handoff
07Handoff Production-ready render: the intended design and finish at manufacturing handoff
