TRIO, TRIO+
and SDRUM

Three band-creator pedals on one form, which the client kept for its ergonomics and low manufacturing cost.

Outcome TRIO's success led to TRIO+, which added a looper, and to SDRUM on the same form.

TRIO

Form shaped around the footswitch, with controls spaced to prevent accidental presses
Custom buttons and light pipes: lower cost, more light
Lacquered graphics that shimmer as light moves across them

SDRUM · working name Beatbox

A crowded interface: laid out in Illustrator, checked in SolidWorks
Lit controls show state, so colour and lighting were designed together
Kick and snare pads with a cast profile for fast snap-back

Client: IVL Audio, for DigiTech
Company: Codetta Product Design
Role: Industrial design, UI layout and graphics, illumination concepts
Product: TRIO, TRIO+ and SDRUM guitar pedals

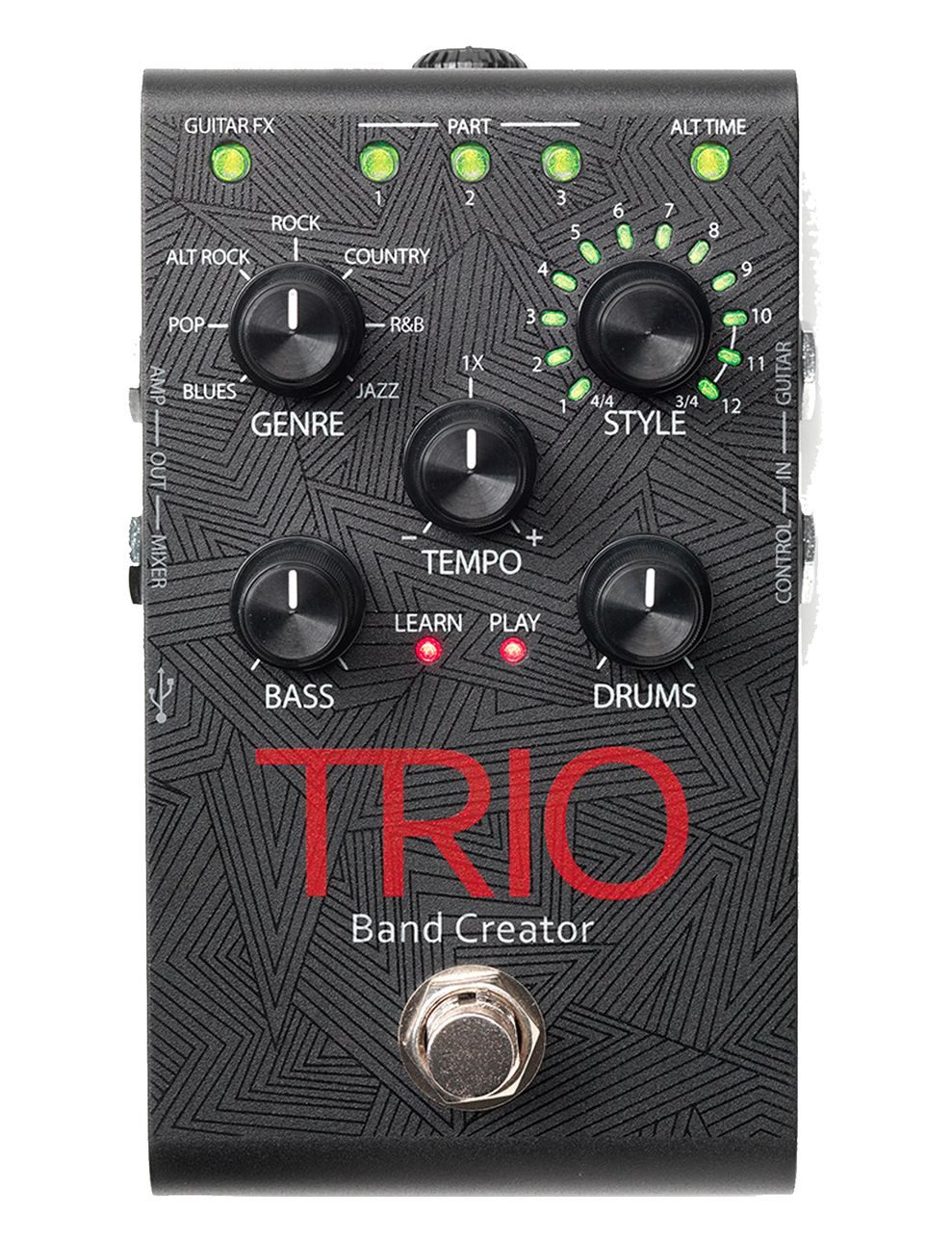

TRIO: built around the footswitch — 01Final TRIO: built around the footswitch

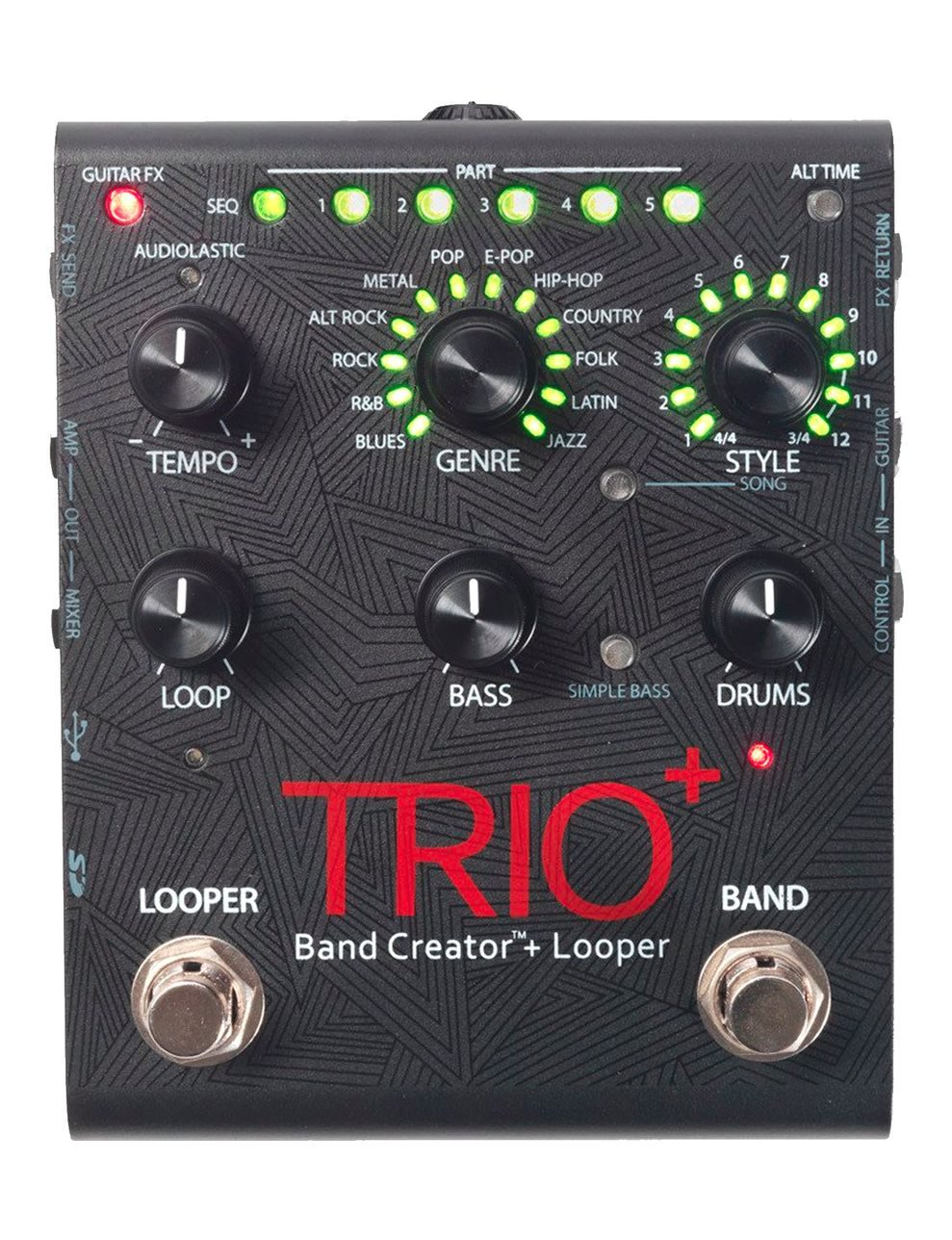

TRIO+: the same form, plus a looper — 02Final TRIO+: the same form, plus a looper

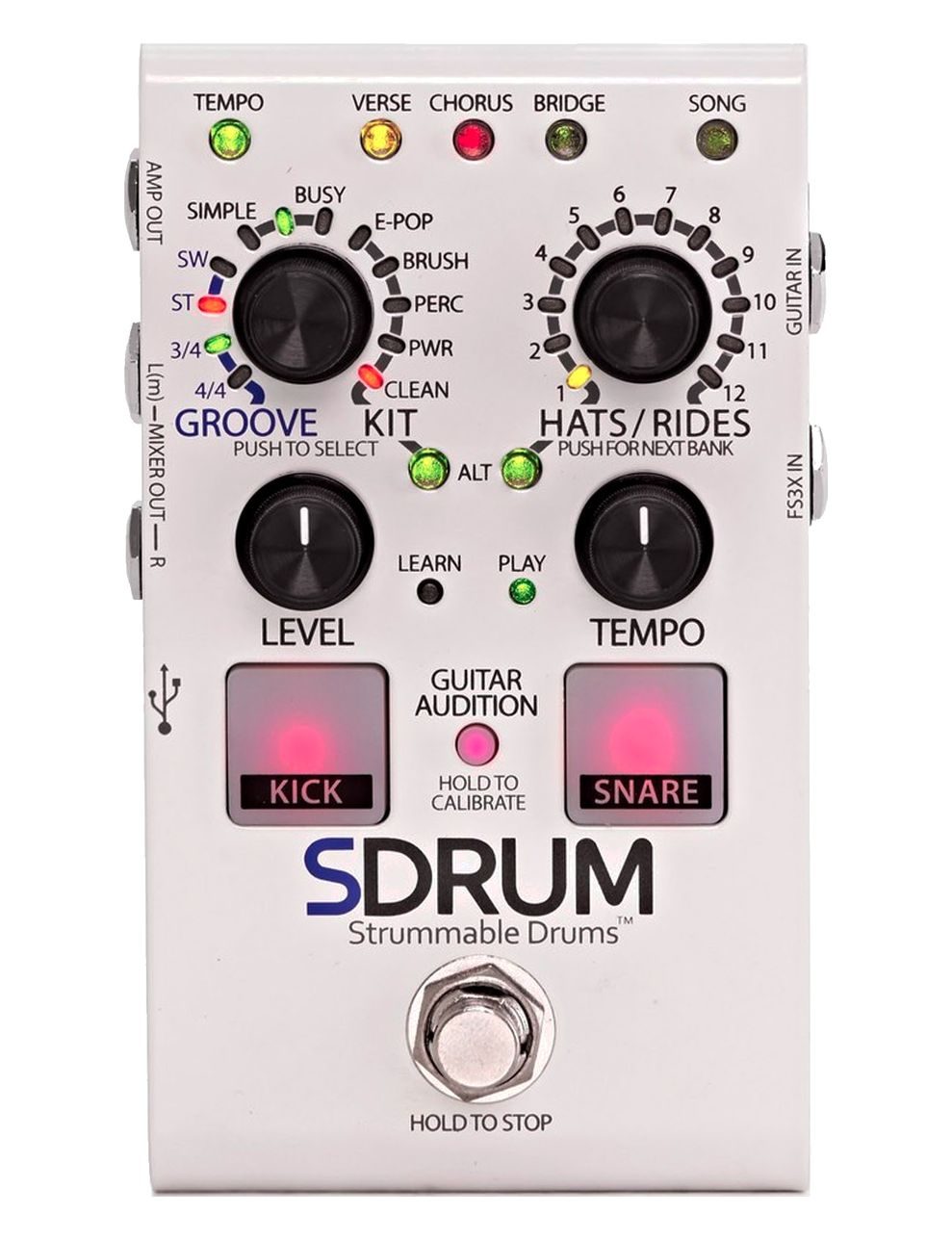

SDRUM: cast kick and snare pads — 03Final SDRUM: cast kick and snare pads

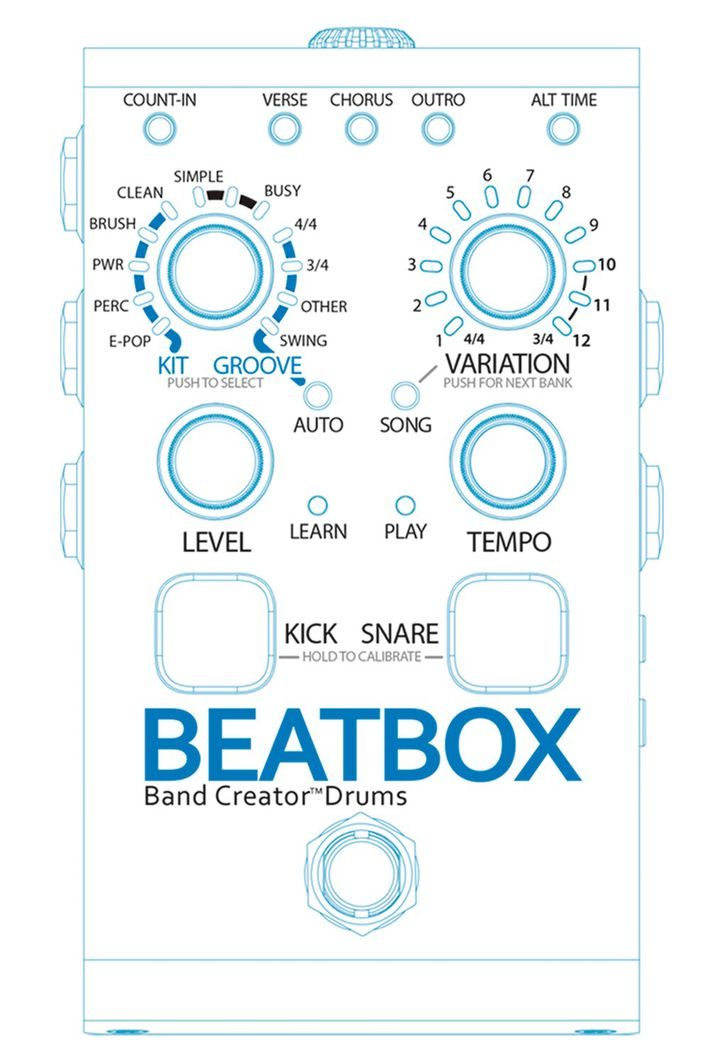

Control layout in Illustrator — 04Layout Control layout in Illustrator

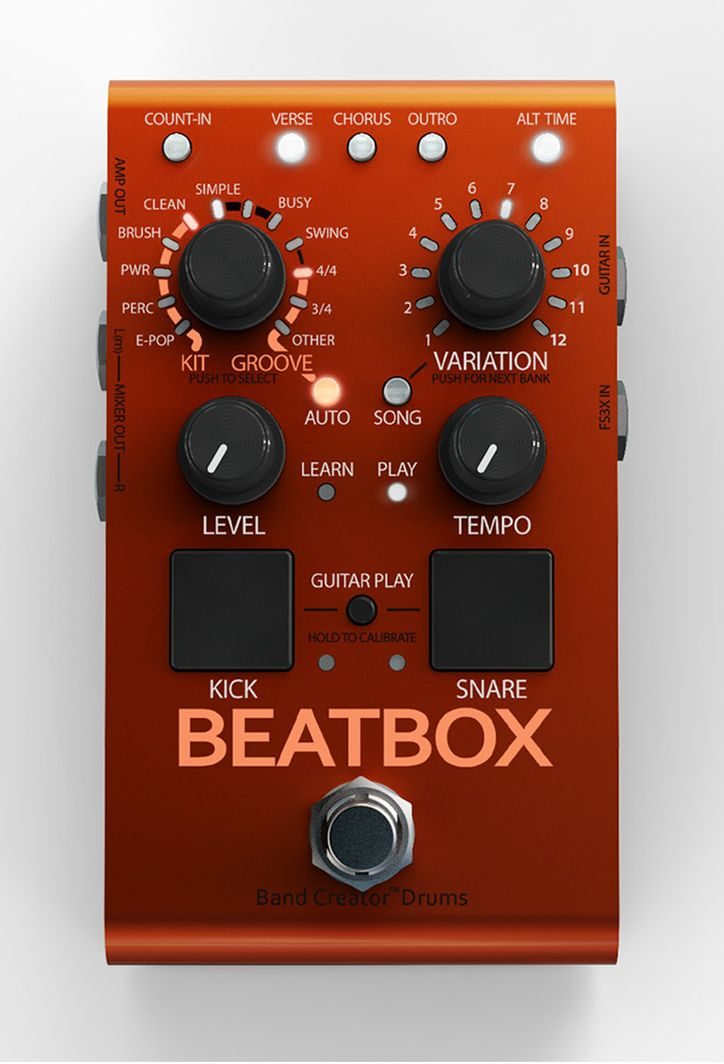

First rendered concept — 05Concept First rendered concept

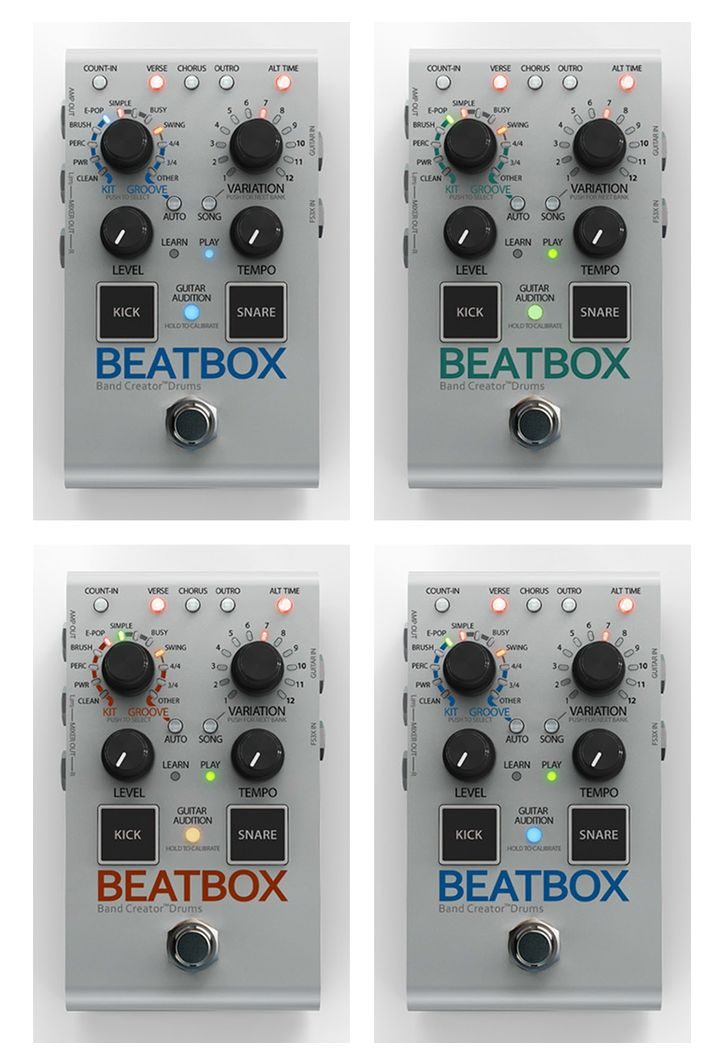

Colour direction, kept simple — 06Colour Colour direction, kept simple

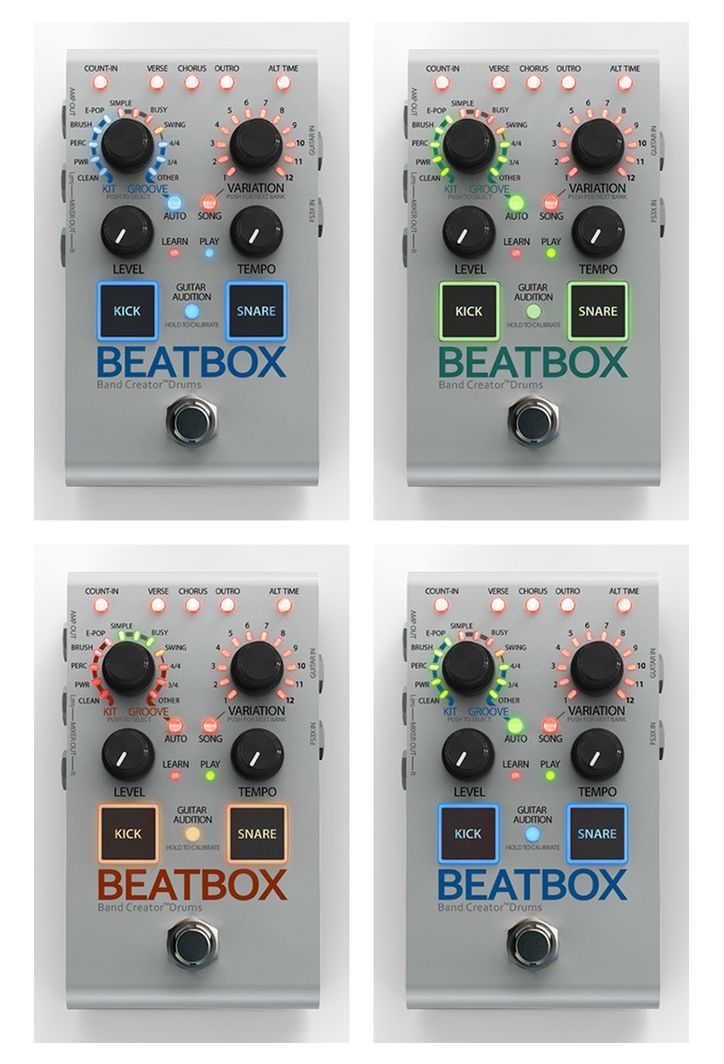

Lit controls show state — 07Lighting Lit controls show state
