Bryn Lucas

Medical device · Contract

Chiropractic
tamper

A hand-held adjusting tool. Its damping system gives each strike the force the chiropractor sets, for quicker, easier and more consistent treatments.

Outcome The client reports it tripled their clientele.

Approach

  • Grip and striking ergonomics researched first
  • Hand data set the knob and grip sizes
  • A dial moves two magnets: close for the strongest strike, apart for the softest
  • Continuous prototyping and testing, with regular client meetings
  • Small batches fabricated in-house for testing and certification
Client
Private client (chiropractor)
Company
Codetta Product Design
Role
Industrial Designer
Product
Adjustable chiropractic tamper

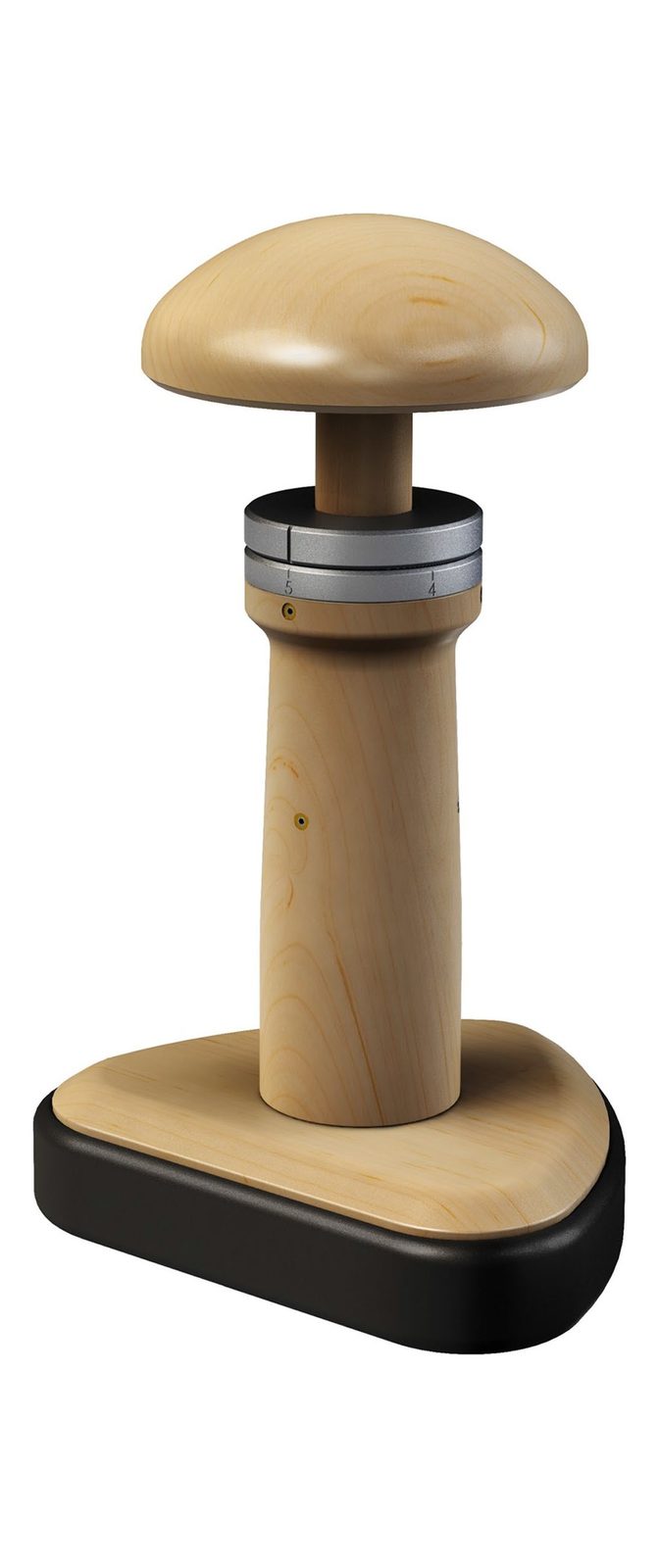

Adjustment ring below the striking knob
01Final Adjustment ring below the striking knob

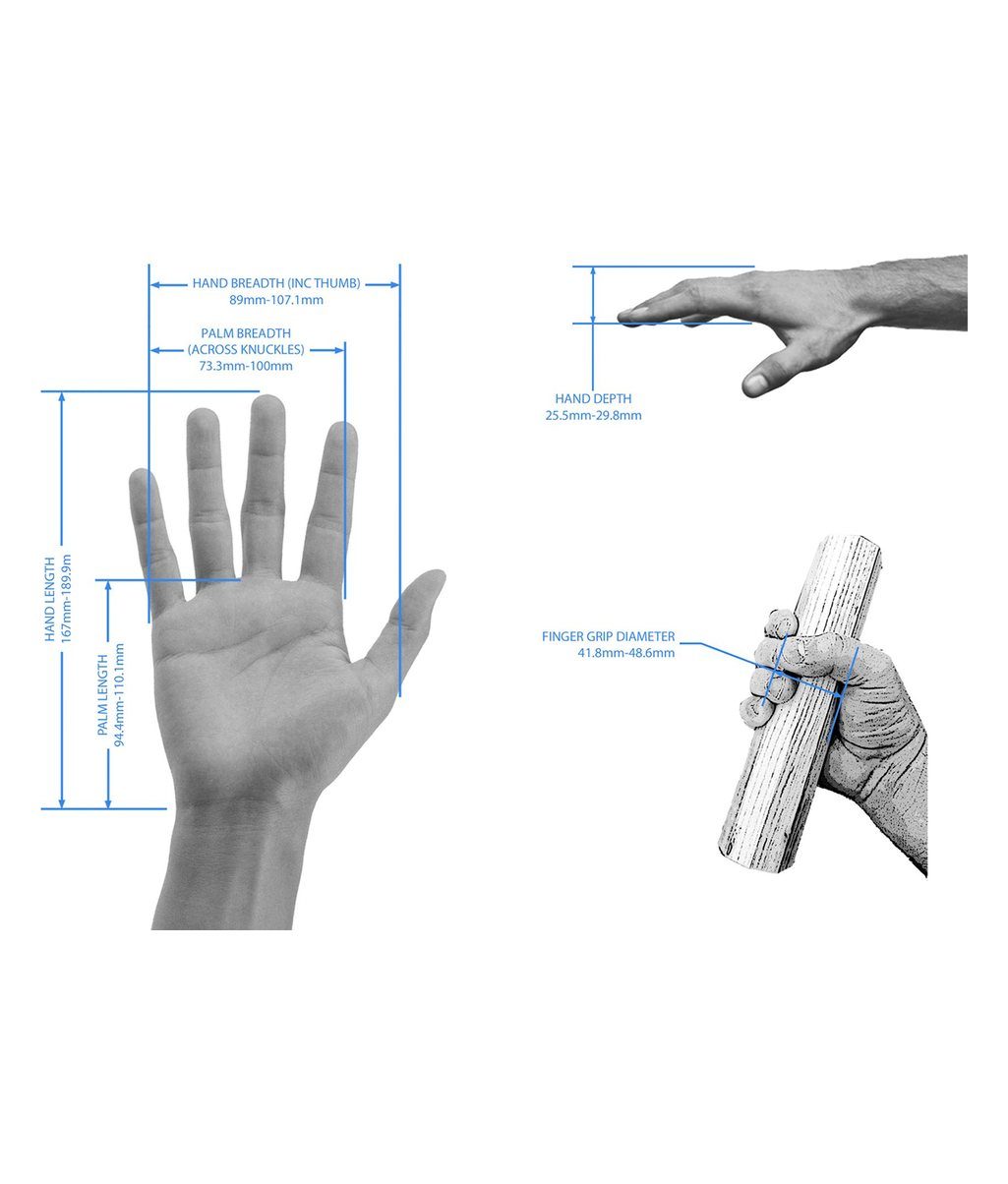

Hand data: breadth, length, depth, grip
02Research Hand data: breadth, length, depth, grip

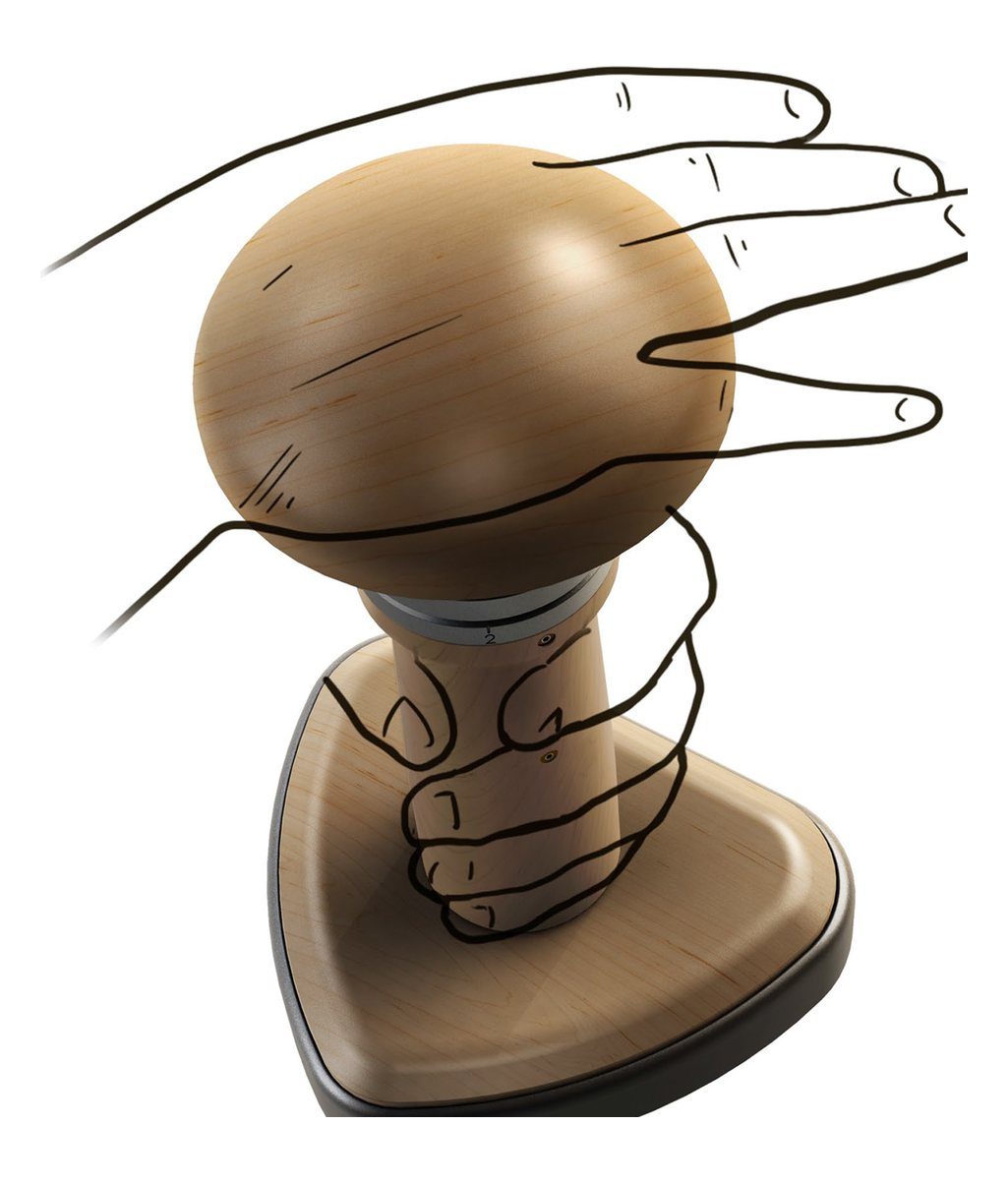

Palm grip on the striking knob
03Concept Palm grip on the striking knob

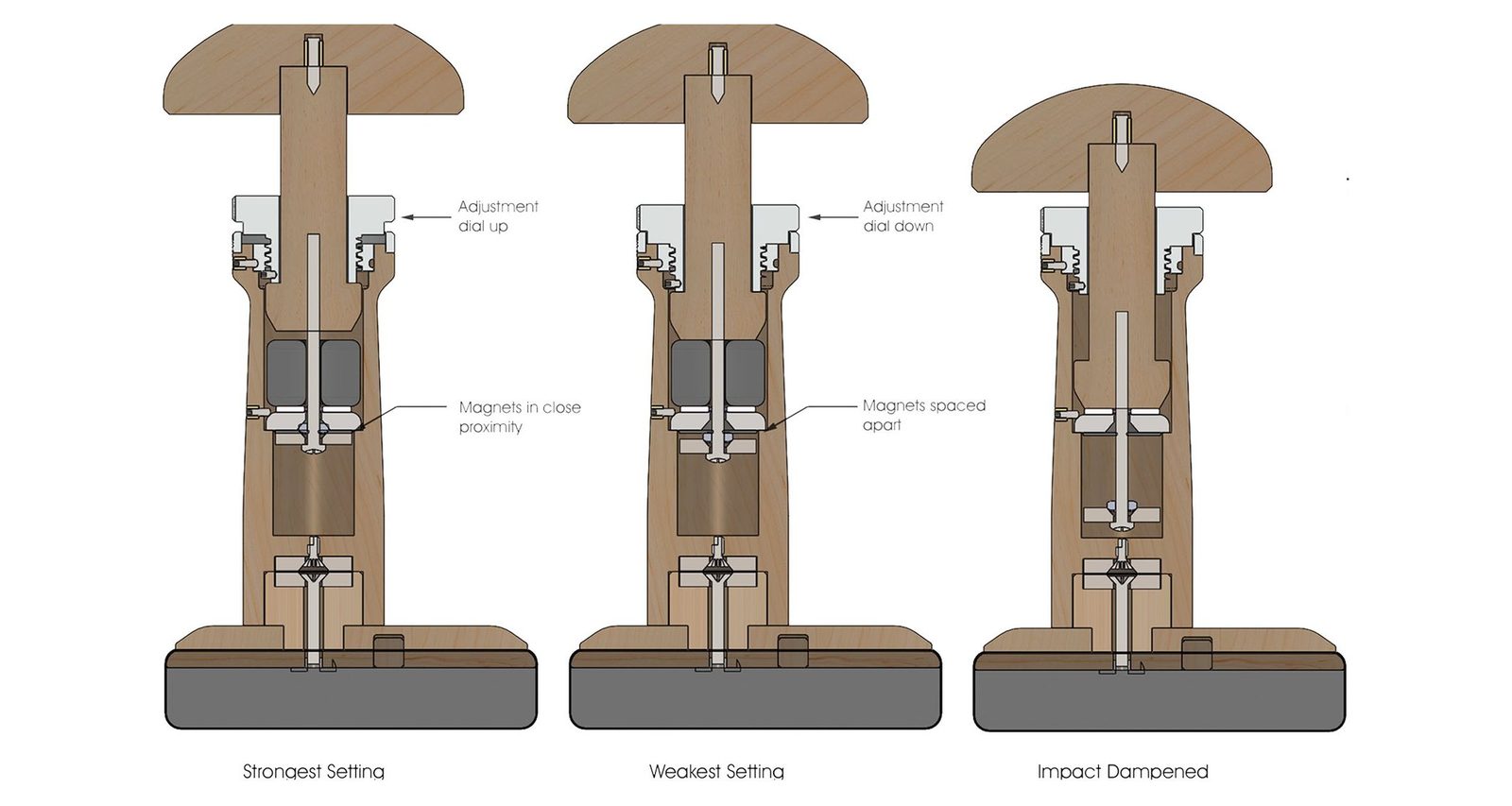

Strongest, weakest and damped settings
04Mechanism Strongest, weakest and damped settings
